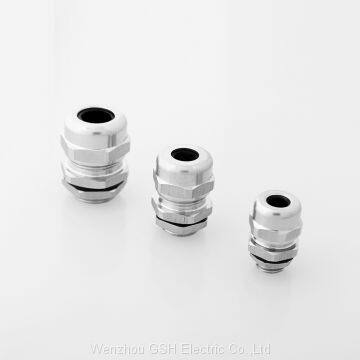

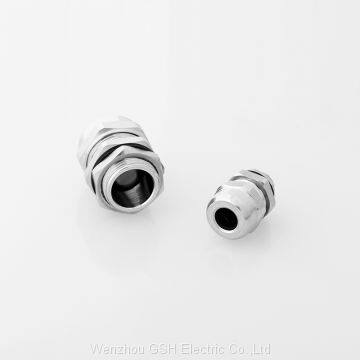

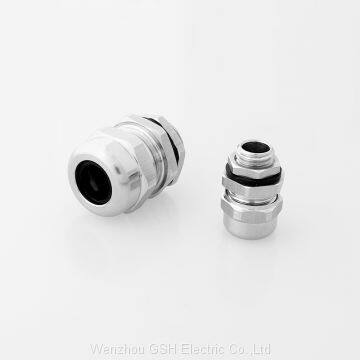

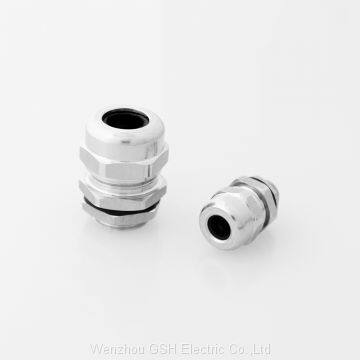

Home > Electrical & Electronics > Cable Parts > Cable Gland > 304 Stainless Steel Cable Gland PG7 / Super Quality
US$ 1.01 - 1.2
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
GSH
Place of Origin:
China
Model Number:
PG7
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
15 days
Related Products
-
PG9 Nylon Cable Gland From GSH ElectricUS$ 0.075 - 0.09MOQ: 1000 Pieces -
PG13.5 Plastic Cable Gland/ Waterproof IP68US$ 0.102 - 0.112MOQ: 1000 Pieces
-
M32 Nylon Cable Gland/ Multi-hole Insert Cable GlandUS$ 0.40 - 0.50MOQ: 1000 Pieces
-
PG11 Nylon Screw Plug / Nylon Blind PlugUS$ 0.069 - 0.075MOQ: 500 Pieces
-
PG7 Spiral Cable Gland / Liquid-tight Strain ReliefUS$ 0.20 - 0.28MOQ: 100 Pieces
Brand Name
GSH
Place of Origin
China
Model Number
PG7
Material
Other, Stainless Steel
Size
Metric, PG, G(PF), NPT
Protection Level
IP68
●Thread Type: Metric, PG, G(PF) and NPT(Without lock nut)
● Material: 304 Stainless steel for A, C, F parts; NBR rubber for B, D parts;
Halogen-free UL approved nylon PA66 for E part.
● Working temperature: -40℃ to 100℃.
● IP Protection: IP68
● Application: With the higher requirements under tough conditions for stability and acid-alkali proof, the rustproof and high strength stainless steel is adopted for building this tough cable gland to offering the best durability in flame, chemical and high impact resistance to protect them from corrosion and high impact environment. In addition, the cable gland with perfect clamping design provides the outstanding strain relief force and watertight performance over the entire cable range to be the best cable entry for tough outdoor / indoor applications which is suitably for used in acid / alkali proof demanded devices, machines and equipments.
| Thread | Item No. | Cable Range mm Φ | Thread O. D. C1 mm | Panel Mounting Hole mm | Thread Length C2 mm | Spanner Size A / F |
| M12 X 1.5 M12 X 1.5 M16 X 1.5 M16 X 1.5 M20 X 1.5 M20 X 1.5 M20 X 1.5 M20 X 1.5 M25 X 1.5 M25 X 1.5 M32 X 1.5 M32 X 1.5 M40 X 1.5 M40 X 1.5 M50 X 1.5 M50 X 1.5 M63 X 1.5 M63 X 1.5 | SSM12-05 SSM12-08 SSM16-07 SSM16-10 SSM20M-09 SSM20M-12 SSM20-10 SSM20-14 SSM25-16 SSM25-18 SSM32-22 SSM32-25 SSM40-25 SSM40-30 SSM50-32 SSM50-41 SSM63-46 SSM63-51 | 5.3 ~ 3 7.8 ~ 4.5 7 ~ 4 10 ~ 6 8.8 ~ 5 12 ~ 7 11 ~ 6 14 ~ 9 16 ~ 10 18 ~ 13 22 ~ 16 25 ~ 18 25 ~ 20 30 ~ 24 32 ~ 26 41 ~ 31 46 ~ 40 51 ~ 44 | 12 12 16 16 20 20 20 20 25 25 32 32 40 40 50 50 63 63 | 12 ~ 12.3 12 ~ 12.3 16 ~ 16.3 16 ~ 16.3 20 ~ 20.3 20 ~ 20.3 20 ~ 20.3 20 ~ 20.3 25 ~ 25.4 25 ~ 25.4 32 ~ 32.4 32 ~ 32.4 40 ~ 40.4 40 ~ 40.4 50 ~ 50.4 50 ~ 50.4 63 ~ 63.4 63 ~ 63.4 | 8 8 9 9 9.5 9.5 9.5 9.5 12 12 12.5 12.5 15 15 15 15 15 15 | 17 / 17 17 / 17 22 / 22 22 / 22 24 / 24 24 / 24 26 / 26 26 / 26 32 / 32 32 / 32 41 / 41 41 / 41 50 / 50 50 / 50 60 / 60 60 / 60 73 / 73 73 / 73 |
| PG 7 PG 7 PG 9 PG 9 PG 11 PG 11 PG 13.5 PG 13.5 PG 16 PG 16 PG 21 PG 21 PG 29 PG 29 PG 36 PG 36 PG 42 PG 42 PG 48 PG 48 | SSPG7-05 SSPG7-08 SSPG9-05 SSPG9-08 SSPG11-07 SSPG11-10 SSPG13.5-09 SSPG13.5-12 SSPG16-10 SSPG16-14 SSPG21-16 SSPG21-18 SSPG29-22 SSPg29-25 SSPG36-25 SSPG36-30 SSPG42-32 SSPg42-41 SSPG48-46 SSPG48-51 | 5.3 ~ 3 7.8 ~ 4.5 5.3 ~ 3 7.8 ~ 4.5 7 ~ 4 10 ~ 6 8.8 ~ 5 12 ~ 7 11 ~ 6 14 ~ 9 16 ~ 10 18 ~ 13 22 ~ 16 25 ~ 18 25 ~ 20 30 ~ 24 32 ~ 26 41 ~ 31 46 ~ 40 51 ~ 44 | 12.5 12.5 15.2 15.2 18.6 18.6 20.4 20.4 22.5 22.5 28.3 28.3 37 37 47 47 54 54 59.3 59.3 | 12.5 ~ 12.8 12.5 ~ 12.8 15.2 ~ 15.5 15.2 ~ 15.5 18.6 ~ 18.9 18.6 ~ 18.9 20.4 ~ 20.7 20.4 ~ 20.7 22.5 ~ 22.8 22.5 ~ 22.8 28.3 ~ 28.7 28.3 ~ 28.7 37 ~ 37.4 37 ~ 37.4 47 ~ 47.4 47 ~ 47.4 54 ~ 54.4 54 ~ 54.4 59.3 ~ 59.7 59.3 ~ 59.7 | 8 8 8 8 9 9 9.5 9.5 9.5 9.5 12 12 12.5 12.5 15 15 15 15 15 15 | 17 / 17 17 / 17 18 / 17 18 / 17 22 / 22 22 / 22 24 / 24 24 / 24 26 / 26 26 / 26 32 / 32 32 / 32 41 / 41 41 / 41 50 / 50 50 / 50 60 / 60 60 / 60 73 / 73 73 / 73 |
| G(PF)1/4 G(PF)1/4 G(PF)3/8 G(PF)3/8 G(PF)1/2 G(PF)1/2 G(PF)3/4 G(PF)3/4 G(PF)1 G(PF)1 G(PF)1-1/4 G(PF)1-1/4 G(PF)1-1/2 G(PF)1-1/2 G(PF)2 G(PF)2 | SSG1/4-05 SSG1/4-08 SSG3/8-07 SSG3/8-10 SSG1/2-09 SSG1/2-12 SSG3/4-16 SSG3/4-18 SSG1-22 SSG1-25 SSG1-1/4-25 SSG1-1/4-30 SSG1-1/2-32 SSG1-1/2-41 SSG2-46 SSG2-51 | 5.3 ~ 3 7.8 ~ 4.5 7 ~ 4 10 ~ 6 8.8 ~ 5 12 ~ 7 16 ~ 10 18 ~ 13 22 ~ 16 25 ~ 18 25 ~ 20 30 ~ 24 32 ~ 26 41 ~ 31 46 ~ 40 51 ~ 44 | 13.157 13.157 16.662 16.662 20.955 20.955 26.441 26.441 33.249 33.249 41.91 41.91 47.803 47.803 59.614 59.614 | 13.2 ~ 13.4 13.2 ~ 13.4 16.7 ~ 16.9 16.7 ~ 16.9 21.0 ~ 21.2 21.0 ~ 21.2 26.5 ~ 26.8 26.5 ~ 26.8 33.3 ~ 33.6 33.3 ~ 33.6 42.0 ~ 42.3 42.0 ~ 42.3 48 ~ 48.4 48 ~ 48.4 60 ~ 60.4 60 ~ 60.4 | 8 8 9 9 9.5 9.5 12 12 12.5 12.5 15 15 15 15 15 15 | 17 / 17 17 / 17 22 / 22 22 / 22 24 / 24 24 / 24 32 / 32 32 / 32 41 / 41 41 / 41 50 / 50 50 / 50 50 / 50 50 / 50 60 / 60 60 / 60 |
| NPT3/8 NPT3/8 NPT1/2 NPT1/2 NPT3/4 NPT3/4 NPT1 NPT1 NPT1-1/4 NPT1-1/4 | SSNPT3/8-07 SSNPT3/8-10 SSNPT1/2-09 SSNPT1/2-12 SSNPT3/4-16 SSNPT3/4-18 SSNPT1-22 SSNPT1-25 SSNPT1-1/4-25 SSNPT1-1/4-30 | 7 ~ 4 10 ~ 6 8.8 ~ 5 12 ~ 7 16 ~ 10 18 ~ 13 22 ~ 16 25 ~ 18 25 ~ 20 30 ~ 24 | 17.055 17.055 21.223 21.223 26.568 26.568 33.227 33.227 41.984 41.984 | - - - - - - - - - - | 9 9 9.5 9.5 12 12 12.5 12.5 15 15 | 22 22 24 24 32 32 41 41 50 50 |
