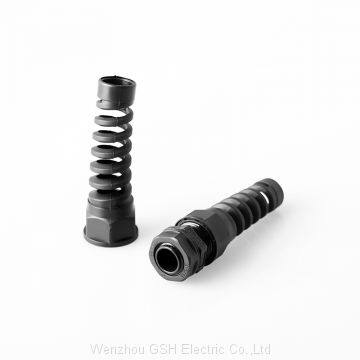

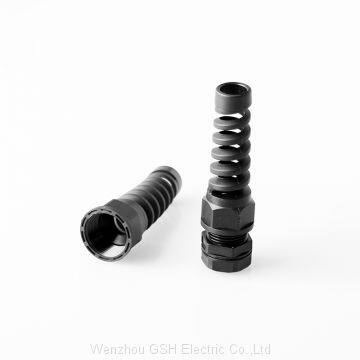

Help CenterM12 Flex Protecting Cable Gland
US$ 0.21 - 0.27
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
GSH
Place of Origin:
China
Model Number:
M12
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
15 days
Related Products
-
PG7 Spiral Cable Gland / Liquid-tight Strain ReliefUS$ 0.20 - 0.28MOQ: 100 Pieces -
Plastic Vent Plug/ Air Vent Plug ManufacturerUS$ 0.60 - 0.70MOQ: 500 Pieces
-
Aluminium Alloy Vent Plug / Metal Ventilation Plug IP67US$ 1.20 - 1.30MOQ: 500 Pieces
-
M12 Stainless Steel Vent Plug / Waterproof IP65/IP66/IP67/IP68US$ 1.8 - 2.0MOQ: 100 Pieces
-
AD15.8 Nylon Corrugated Tubing / Plastic Corrugated ConduitUS$ 0.335 - 0.385MOQ: 100 Meters
Brand Name
GSH
Place of Origin
China
Model Number
M12
Material
Nylon
Size
metric, PG, G(PF), NPT
Protection Level
IP68
●Thread Type: Metric and PG.
● Material: Halogen-free UL approved nylon PA66 for A, C, F parts; NBR rubber for B, D parts.
● Working temperature: -40℃ to 100℃.
● Color: Black(RAL9005), Light grey (RAL7035).
● IP Protection: IP68
● Application: Flex protecting cable gland is the best for cable entry system which protects against bending break failure. This is an important safety feature for a flexible cable on hand-held equipment, moving machine parts or other instruments.
| Thread | Item No. | Cable Range mm Φ |
Thread O. D. C1 mm |
Panel Mounting Hole mm |
Thread Length C2 mm |
SpannerSize A/ F mm | ||
| Black | Light grey | |||||||
|
Short Thread |
M12 X 1.5 M12 X 1.5 M16 X 1.5 M16 X 1.5 M20 X 1.5 M20 X 1.5 M20 X 1.5 M20 X 1.5 M25 X 1.5 |
M12-P-05B-ST M12-P-07B-ST M16-P-07B-ST M16-P-10B-ST M20M-P-09B-ST M20M-P-12B-ST M20-P-10B-ST M20-P-14B-ST M25-P-16B-ST |
M12-P-05G-ST M12-P-07G-ST M16-P-07G-ST M16-P-10G-ST M20M-P-09G-ST M20M-P-12G-ST M20-P-10G-ST M20-P-14G-ST M25-P-16G-ST |
5.5 ~ 3 6.8 ~ 4 7 ~ 4 10 ~ 6 8.8 ~ 5 12 ~ 7 11 ~ 6 14 ~ 9 15.8 ~ 10 |
12 12 16 16 20 20 20 20 25 |
12 ~ 12.3 12 ~ 12.3 16 ~ 16.3 16 ~ 16.3 20 ~ 20.3 20 ~ 20.3 20 ~ 20.3 20 ~ 20.3 25 ~ 25.4 |
8.5 8.5 10 10 10 10 10 10 10 |
18 / 15 18 / 15 22 / 22 22 / 22 24 / 24 24 / 24 27 / 27 27 / 27 33 / 33 |
|
Long Thread |
M12 X 1.5 M12 X 1.5 M16 X 1.5 M16 X 1.5 M20 X 1.5 M20 X 1.5 M20 X 1.5 M20 X 1.5 M25 X 1.5 |
M12-P-05B M12-P-07B M16-P-07B M16-P-10B M20M-P-09B M20M-P-12B M20-P-10B M20-P-14B M25-P-16B |
M12-P-05G M12-P-07G M16-P-07G M16-P-10G M20M-P-09G M20M-P-12G M20-P-10G M20-P-14G M25-P-16G |
5.5 ~ 3 6.8 ~ 4 7 ~ 4 10 ~ 6 8.8 ~ 5 12 ~ 7 11 ~ 6 14 ~ 9 15.8 ~ 10 |
12 12 16 16 20 20 20 20 25 |
12 ~ 12.3 12 ~ 12.3 16 ~ 16.3 16 ~ 16.3 20 ~ 20.3 20 ~ 20.3 20 ~ 20.3 20 ~ 20.3 25 ~ 25.4 |
15 15 15 15 15 15 15 15 15 |
18 / 15 18 / 15 22 / 22 22 / 22 24 / 24 24 / 24 27 / 27 27 / 27 33 / 33 |
| PG7 PG7 PG9 PG 9 PG 11 PG 11 PG 13.5 PG 13.5 PG 16 PG 16 PG 21 |
PG7-P-05B PG7-P-07B PG9-P-05B PG9-P-08B PG11-P-07B PG11-P-10B PG13.5-P-09B PG13.5-P-12B PG16-P-10B PG16-P-14B PG21-P-16B |
PG7-P-05G PG7-P-07G PG9-P-05G PG9-P-08G PG11-P-07G PG11-P-10G PG13.5-P-09G PG13.5-P-12G PG16-P-10G PG16-P-14G PG21-P-16G |
5.5 ~ 3 6.8 ~ 4 5.5 ~ 3 8 ~ 4 7 ~ 4 10 ~ 6 8.8 ~ 5 12 ~ 7 11 ~ 6 14 ~ 9 15.8 ~ 10 |
12.5 12.5 15.2 15.2 18.6 18.6 20.4 20.4 22.5 22.5 28.3 |
12.5 ~ 12.8 12.5 ~ 12.8 15.2 ~ 15.5 15.2 ~ 15.5 18.6 ~ 18.9 18.6 ~ 18.9 20.4 ~ 20.7 20.4 ~ 20.7 22.5 ~ 22.8 22.5 ~ 22.8 28.3 ~ 28.7 |
8 8 8.5 8.5 9 9 10 10 10 10 12 |
17 / 15 17 / 15 22 / 19 22 / 19 24 / 22 24 / 22 27 / 24 27 / 24 30 / 27 30 / 27 36 / 33 |
|
| G(PF)1/4 G(PF)1/4 G(PF)3/8 G(PF)3/8 G(PF)1/2 G(PF)1/2 G(PF)3/4 |
G1/4-P-05B G1/4-P-08B G3/8-P-07B G3/8-P-10B G1/2-P-09B G1/2-P-12B G3/4-P-16B |
G1/4-P-05G G1/4-P-08G G3/8-P-07G G3/8-P-10G G1/2-P-09G G1/2-P-12G G3/4-P-16G |
5.3 ~ 3 7.8~ 4.5 7 ~ 4 10 ~ 6 8.8~ 5 12 ~ 7 15.8 ~ 10 |
13.157 13.157 16.662 16.662 20.955 20.955 26.441 |
13.2 ~ 13.4 13.2 ~ 13.4 16.7 ~ 16.9 16.7 ~ 16.9 21.0 ~ 21.2 21.0 ~ 21.2 26.5 ~ 26.8 |
8 8 10 10 10 10 12 |
19 / 19 19 / 19 22 / 22 22 / 22 27 / 24 27 / 24 33 / 33 |
|
| NPT3/8 NPT3/8 NPT1/2 NPT1/2 NPT3/4 |
NPT3/8-P-07B NPT3/8-P-10B NPT1/2-P-09B NPT1/2-P-12B NPT3/4-P-16B |
NPT3/8-P-07G NPT3/8-P-10G NPT1/2-P-09G NPT1/2-P-12G NPT3/4-P-16G |
7 ~ 4 10 ~ 6 8.8 ~ 5 12 ~ 7 15.8 ~ 10 |
17.055 17.055 21.223 21.223 26.568 |
- - - - - |
15 15 15 15 15 |
22 22 24 24 33 |
|
