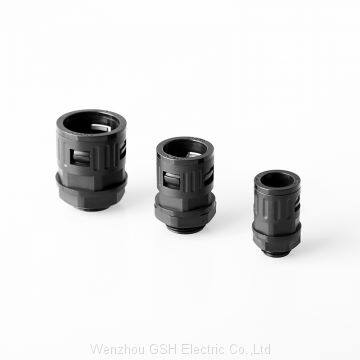

PG11-AD15.8 Straight Connector/ Plastic Tubing Fitting
US$ 0.12 - 0.13
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
GSH
Place of Origin:
China
Model Number:
PG11-AD15.8
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
15 days
Related Products
-
M20-AD21.2 Right Angle Connector / Corrugated Conduit FittingUS$ 0.50 - 0.55MOQ: 100 Pieces -
Y-Distributor for Nylon Corrugated TubingUS$ 0.51 - 0.56MOQ: 100 Pieces
-
T-Distributor for Nylon Corrugated ConduitUS$ 0.48 - 0.53MOQ: 100 Pieces
-
AD13.0 Tubing Clamp / Conduit Clamp / Bracket From GSH ElectricUS$ 0.15 - 0.16MOQ: 100 Pieces
-
M16-AD13.0 Watertight Corrugated Tubing Fitting / Waterproof IP68 LevelUS$ 0.16 - 0.18MOQ: 100 Pieces
Brand Name
GSH
Place of Origin
China
Model Number
PG11-AD15.8
Material
Other, Nylon
Type
Other, Fits to Corrugated Tubing/ Corrugated Conduit
PG11-AD15.8 Straight Connector/ Plastic Tubing Fittings:
● Thread Type: Metric, PG and G
● Material: UL approved Nylon PA (Polyamide)
● Working temperature: -40℃ to 100℃.
● Color: Black (RAL 9005)
● Application: Special design of inner locking buckle make the mounting and dismounting done only by plugging or pulling,without using tools. Straight Connector is the matching product for Plastic Corrugated Tubings / Conduits, can entry equipment cabinet directly, or can connect with electric device hole which have corresponding female thread, another side with respective size conduit by tighting up the sealing nut.
| Item No. | Fits to Tubing Size | Thread | AG Outer diameter (mm) |
AG Inner diameter (mm) |
Thread length GL (mm) |
Length H (mm) |
|---|---|---|---|---|---|---|
| SC-M10-AD10.0 | AD10.0 | M10×1.0 | 10 | 6.5 | 10 | 23 |
| SC-M12-AD10.0 | AD10.0 | M12×1.5 | 12 | 6.5 | 10 | 25 |
| SC-M16-AD10.0 | AD10.0 | M16×1.5 | 16 | 6.5 | 10 | 25 |
| SC-M12-AD13.0 | AD13.0 | M12×1.5 | 12 | 7.5 | 11 | 25 |
| SC-M18-AD13.0 | AD13.0 | M18×1.5 | 18 | 10 | 10 | 25 |
| SC-M20-AD13.0 | AD13.0 | M20×1.5 | 20 | 10 | 10 | 25 |
| SC-M16-AD15.8 | AD15.8 | M16×1.5 | 16 | 11.5 | 10 | 27.5 |
| SC-M18-AD15.8 | AD15.8 | M18×1.5 | 18 | 12 | 10 | 27.5 |
| SC-M20-AD15.8 | AD15.8 | M20×1.5 | 20 | 12 | 10 | 27.5 |
| SC-M20-AD18.5 | AD18.5 | M20×1.5 | 20 | 14.3 | 12 | 28 |
| SC-M20-AD21.2 | AD21.2 | M20×1.5 | 20 | 15 | 13 | 31.5 |
| SC-M24-AD21.2 | AD21.2 | M24×1.5 | 24 | 18 | 13 | 31.5 |
| SC-M25-AD21.2 | AD21.2 | M25×1.5 | 25 | 17 | 13 | 27 |
| SC-M25-AD25.0 | AD25.0 | M25×1.5 | 25 | 19.5 | 14 | 29 |
| SC-M25-AD28.5 | AD28.5 | M25×1.5 | 25 | 20 | 14 | 34 |
| SC-M27-AD28.5 | AD28.5 | M27×1.5 | 27 | 20.5 | 14 | 34 |
| SC-M30-AD28.5 | AD28.5 | M30×1.5 | 30 | 22 | 14 | 34 |
| SC-M32-AD28.5 | AD28.5 | M32×1.5 | 32 | 22 | 14 | 34 |
| SC-M32-AD34.5 | AD34.5 | M32×1.5 | 32 | 27 | 14 | 36 |
| SC-M36-AD34.5 | AD34.5 | M36×1.5 | 36 | 29 | 14 | 36 |
| SC-M40-AD34.5 | AD34.5 | M40×1.5 | 40 | 29 | 14 | 36 |
| SC-M40-AD42.5 | AD42.5 | M40×1.5 | 40 | 34 | 14 | 38 |
| SC-M42-AD42.5 | AD42.5 | M42×1.5 | 42 | 36 | 14 | 38 |
| SC-M48-AD42.5 | AD42.5 | M48×1.5 | 48 | 36 | 14 | 38 |
| SC-M50-AD54.5 | AD54.5 | M50×1.5 | 50 | 44 | 15.5 | 39 |
| SC-M63-AD54.5 | AD54.5 | M63×1.5 | 63 | 48 | 15.5 | 39 |
| SC-PG7-AD10.0 | AD10.0 | PG7 | 12.5 | 6.5 | 10 | 23 |
| SC-PG9-AD13.0 | AD13.0 | PG9 | 15.2 | 10 | 10 | 25 |
| SC-PG11-AD15.8 | AD15.8 | PG11 | 18.6 | 12 | 10 | 27.5 |
| SC-PG13.5-AD15.8 | AD15.8 | PG13.5 | 20.4 | 12.5 | 10 | 28 |
| SC-PG13.5-AD18.5 | AD18.5 | PG13.5 | 20.4 | 14.3 | 12 | 28 |
| SC-PG16-AD21.2 | AD21.2 | PG16 | 22.5 | 17 | 13 | 32 |
| SC-PG21-AD28.5 | AD28.5 | PG21 | 28.3 | 23 | 14 | 34 |
| SC-PG29-AD34.5 | AD34.5 | PG29 | 37 | 29 | 14 | 36 |
| SC-PG36-AD42.5 | AD42.5 | PG36 | 47 | 36 | 14 | 38.5 |
| SC-PG48-AD54.5 | AD54.5 | PG48 | 59.3 | 48 | 15 | 40 |
| SC-G1/4-AD10.0 | AD10.0 | G1/4 | 13.157 | 6.5 | 10 | 23 |
| SC-G3/8-AD15.8 | AD15.8 | G3/8 | 16.662 | 12 | 10 | 28 |
| SC-G1/2-AD21.2 | AD21.2 | G1/2 | 20.955 | 15 | 13 | 31 |
| SC-G3/4-AD28.5 | AD28.5 | G3/4 | 26.441 | 20 | 14 | 35 |
| SC-G1-AD34.5 | AD34.5 | G1 | 33.249 | 27 | 14 | 36 |
| SC-G1-1/4-AD42.5 | AD42.5 | G1-1/4 | 41.91 | 36 | 14 | 38 |
| SC-G2-AD54.5 | AD54.5 | G2 | 59.614 | 48 | 15.5 | 39 |
