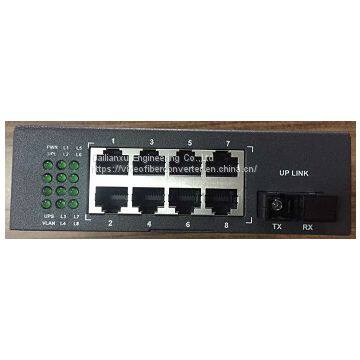

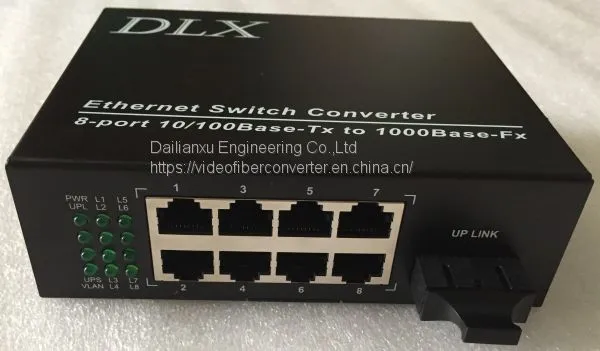

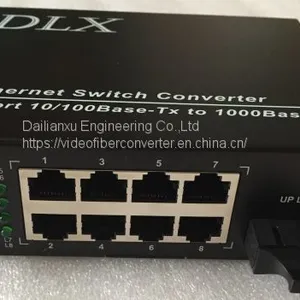

9ports 10/100M/1000M IP Ethernet Optical Fiber Ethernet Switch 8ports Ethernet IP +1port SC Fiber Optical Single-mode Duplex 20KM

9ports 10/100M/1000M IP Ethernet Optical Fiber Ethernet Switch 8ports Ethernet IP +1port SC Fiber Optical Single-mode Duplex 20KM thumbnail-1
9ports 10/100M/1000M IP Ethernet Optical Fiber Ethernet Switch 8ports Ethernet IP +1port SC Fiber Optical Single-mode Duplex 20KM thumbnail-2
9ports 10/100M/1000M IP Ethernet Optical Fiber Ethernet Switch 8ports Ethernet IP +1port SC Fiber Optical Single-mode Duplex 20KM thumbnail-3
9ports 10/100M/1000M IP Ethernet Optical Fiber Ethernet Switch 8ports Ethernet IP +1port SC Fiber Optical Single-mode Duplex 20KM photo-1
9ports 10/100M/1000M IP Ethernet Optical Fiber Ethernet Switch 8ports Ethernet IP +1port SC Fiber Optical Single-mode Duplex 20KM photo-2
9ports 10/100M/1000M IP Ethernet Optical Fiber Ethernet Switch 8ports Ethernet IP +1port SC Fiber Optical Single-mode Duplex 20KM photo-3
US$ 40 - 43 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DLX
Place of Origin:
China
Model Number:
DLX-FS08-G
Contact Supplier Request Quote Chat Now
Dailianxu Engineering Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DLX
Place of Origin China
Model Number DLX-FS08-G

BRIEF INTRODUCTION

DLX-FS08-G series 10/100M/1000M Fiber Ethernet Switch is included one 1000M fiber optical port and Eight 10/100M Ethernet ports.

It has the function of photo electricity switchover between 8channels10/100M Ethernet ports and 1000M optical ports. Adopts original chips and highquality fiber module, stable and excellent performance. It is used in Telecast,Telecom, Broadcast, industrial broadband etc. fiber Ethernet network. Fullycompatible with IEE802.3,IEEE802.3u,100Base-TX/FX. Supports Full-duplexIEEE802.3x,IEEE802.3z and half-duplex control.

Supports super jumbo frame,Auto-adaptive to different protocol and MDI/MDI-X etc. Supports Rack mountedand remote management of running state real-time monitor and performanceparameter setting.






FEATURES

●8channel10/100M and one 1000M fiber port, realize the photo electricity switchoverbetween twisted-pair and optical cable

●SupportsIEEEE802.3X,Full-duplex/Half-duplex stream control, supports broadcaststorm-control

●Fullycompatible with IEEEE802.3u,IEEEE802.3z/ab,IEEEE802.1q,IEEEE802.3ah,10Base-Tx,100Base-TX,100Base-FX

●Supportssuper jumbo frame andfiber connectorSC/FC/ST optional

●Indicatorsfor Power Supply, Ethernet, Optical link etc.

●Supportsrack mounted

●Auto-negotiateand Auto-cross to NIC/HUB and MDI/MDI-X, Supports full-duplex and half-duplex

●Averageworking time of fault free is more than 50,000hours,meet the standard oftelecommunication operation

●Transmissiondistance: 5km(multi-mode),20km,40km,60km,80KM,100km,120km optional(Single-mode)






APPLICATIONS

●High-definitionIP video surveillance and power supply

●HighWay& Road surveillance system, Capture system

●Video-surveillancesystem of large factories and mines systems

●IPNetwork Multi-function system

●HighWay & Toll Station Surveillance

●PublicSecurity Surveillance

●Surveillanceand cable TV system

●Intelligenttraffic monitoring system

●HighQuality Video Conference

●Broadcastand TV program transmission

●Long-distancemultimedia teaching

●IndustrialClosed Circuit Television Surveillance






SPECIFICATIONS

Wavelength:MM:850/1310nm,SM:1310/1550nm, DFB:1260~1610nm

Fiber power: 0 dBm ~ -3 dBm/-5 dBm ~ -10 dBm

Receiving Sensitivity:≤-26dBm

Bandwidth of Single wavelength: 1000M

Transmission distance:5km(MM),20km/40km/60km/80km/100km/120km(SM)

Max. optic Budget:15dbm/20dbm/25dbm/30dbm

Fiber connector:ST/FC/SC optional

Ethernet port:RJ45,10/100M auto-negotiation, Full-duplex/Half-duplex

Standard:IEEEE802.3X,IEE802.3u,IEE802.3z/ab,IEE802.1q,IEE802.3ah,10Base-TX,100Base-TX,100Base-FX

Control:IEE802.3X/IEE802.3Zand Full-duplex/Half-duplex

TemperatureOperation:-20℃~+70℃,Storage: -40℃~+80℃

HumidityOperation:10%—90%, Storage: 5%—95%

Dimension:135(L) x 120(W) x 44(H)mm

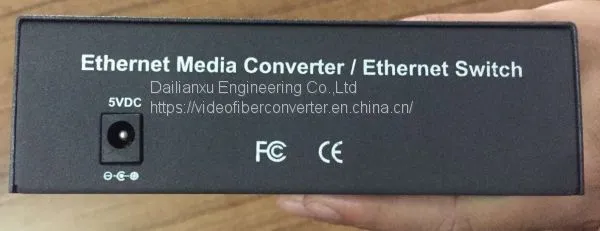

Power supply:5V DC


Packing list: One Fiber Ethernet Switch,One 100-265V AC /5V DC power adapter,one user manual



Product Tags: IP Ethernet fiber Optical converter , 8ch IP camera to fiber converter , Fiber Ethernet Switch
