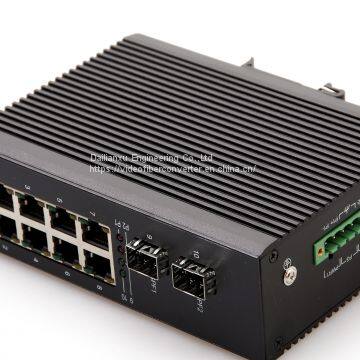

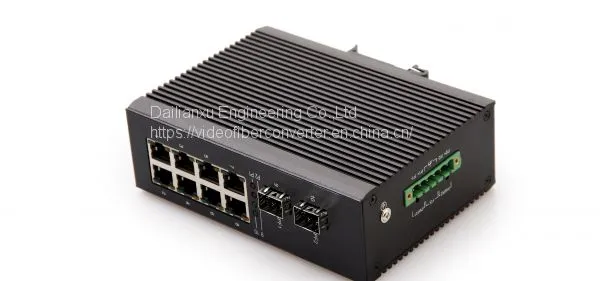

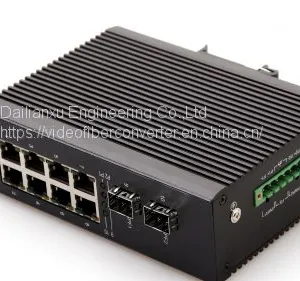

4/8channels DIN Rail Industrial Loop Self-healing POE Fiber Switch

BRIEF INTRODUCTION

DLX-IMPFS04G/08G series 10/100M/1000M DIN Rail Industrial Loop Self-healing Managed POE Ethernet Fiber Switch is included two 1000M fiber optical port and 4/8 POE 10/100M/1000M Ethernet ports. Adopts newest ring loop redundancy technique, Self-heal at very less time (<20ms). Support node type, ring loop, T, star etc. fiber network structure. Support Multiple management method (SNMP, Web browser, Telnet and RS232 control). Has multiple management functions, like 802.1Q VLAN,802.1p QoS, IGM static multicast, port Aggregation, port mirroring, port configuration, RSTP, MR-Ring, access control, remote control, port statistics, port network diagnosis etc. All ports support non-blocking and full line speed forwarding. Support Line detection and 32Kbps port’s bandwidth control to use the band resources properly. Support base-on port, 802.1p, IP TOS/DS and TCP/UDP ports’ Priority Mode etc. QoS control strategy.

It has the function of photoelectricity switchover between 4/8channels 10/100M/1000M Ethernet ports and 1000M optical port. Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD(Powered Devices) and feeds power to it. Support smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices. Has smart POE auto-recognized system to protect devices from overflow current and over-voltage etc. Adopts Auto-standby mode and cable distance detection management to ensure the switch has excellent energy saving capability. Using imported original industrial components and Gold-plated PCB. Support 1+1 dual-power supply input and 1ch relay alarm output. Using 5mm high strength aluminum housing, meet IP40 protection, Support 9V~56V wide range input voltage which can meet 12V/24V/48V etc.various voltage. Adopts industry grade design ,support long time stable working under -45℃~ 85 ℃.All RJ45 ports adopt advanced Self-healing multi-stage lightning protection design, have high-level(4KV) lightning, surge and ESD(8KV) protection.

APPLICATIONS

●   High-definition IP video surveillance and power supply

●   High Way& Road surveillance system, Capture system

●   Video-surveillance system of large factories and mines systems

●   IP Network Multi-function system

●   High Way & Toll Station Surveillance

●   Public Security Surveillance

●   Surveillance and cable TV system

●   Intelligent traffic monitoring system

●   High Quality Video Conference

●   Broadcast and TV program transmission

●   Long-distance multimedia teaching

●   Industrial Closed Circuit Television Surveillance

FEATURES

●   2 1000M Fiber ports and 4/8 10/100M/1000M RJ45 Ethernet ports

●   Operating temperature:-45℃~ 85 ℃, Suit to harsh environment

●   Support STP, RSTP, MSTP, ERPS etc. Loop self-healing protocol

●   All Ethernet and power ports adopt advanced Self-healing multi-stage lightning protection design, meet EN6~EN61000-4-6 series standard

●   DIN rail installation, using sturdy and durable 5mm aluminum housing, meet IP40 protection standard

●   Electromagnetic Compatibility meet Industrial grade 4 standard, suit to harsh electromagnetic environment

●   Support multiple network management, like: SNMP, Web browser, Telnet and RS232 Console

●   Support Command Line Interface(CLI), Easy to quick configure key managements

●   Bandwidth management: port aggregation, port speed limit, multicast and broadcast storm suppression

●   Support IEEE 1588 PTP V2(precision time protocol),to achieve accurate network time synchronization

●   Support QoS and ToS/D ffServ for flow control and manage DHCP Opt on 82 for assign IP address by different strategy

●   Support Line detection and 32Kbps port’s bandwidth control to use the band resources properly

●   Support port Aggregation, port mirroring, port configuration

●   Support patent ring protocol “FR Ring”(self-healing time<20ms),STP,RSTP Support SnMPv3, IEEE 802.1X, HTTPS and SSH, MSTP Ethernet redundancy

●   Support TACACS+,IGMP Snooping and GMRPto filter multicast traffic

●   RMOn effectively improve network monitoring and forecasting capabilities

●   Support port-based VLAN, IEEE 802.1Q VLAN and GVRP protocol

●   Support MAC address-based port lock to prevent illegal instrusion

●   Support Ethernet/ IP and Modbus/TCP protocol to device management and control

●   Support Automatic alarm via E-mail and relay output

●   All ports support non-blocking and full line speed forwarding, supply powerful data processing capacity

●   Support 12V/24V/48V DC and 110V/220V AC wide voltage

●   Support Priority Mode and QoS control strategy.

●   Auto-negotiate to NIC/HUB and MDI/MDI-X

●   Single port full-power technology, and single port Support Max.30W

●   Support IEEE802.3AF and IEEE802.3AT protocol, Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD(Powered Devices) and feeds power to it

●   Support smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices

●   Support Auto-standby mode and cable distance detection management, if no devices been connected, then auto-standby to save energy, if cable distance less than 10meters,then will use Lower transmission power

●   Smart POE auto-recognized system to protect devices from overflow current and over-voltage etc.

●   1/2/3/6 lines or 4/5/7/8 lines power supply optional, Support all PD devices

●   Anti-lightning and ESD protection for all Ethernet ports, power ports.

●   Immersion gold PCB board, Industry grade components

●   Support 1+1 dual power supply and reverse connection protection

●   Support VLAN Network isolation and BSTM broadcast storm-control setting

●   Indicators for Power Supply, Ethernet etc.

●   Support line speed switching of all ports and in 64~1536 frame length can reach line speed

●   Wall mounted installation

●   Transmission distance: 500M(multi-mode),,,,80KM optional(Single-mode)
