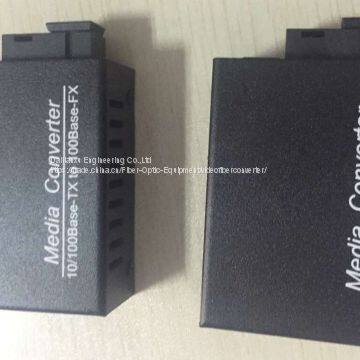

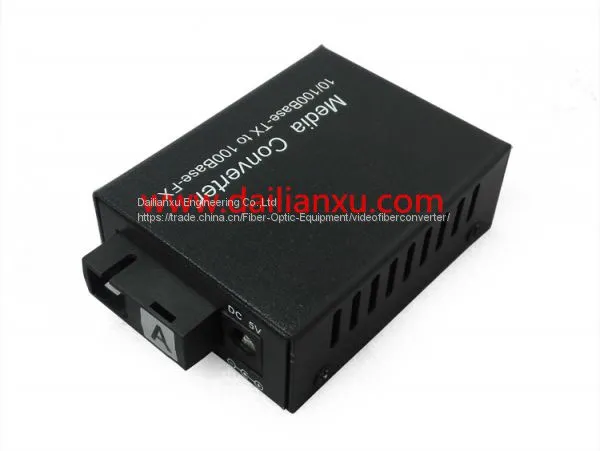

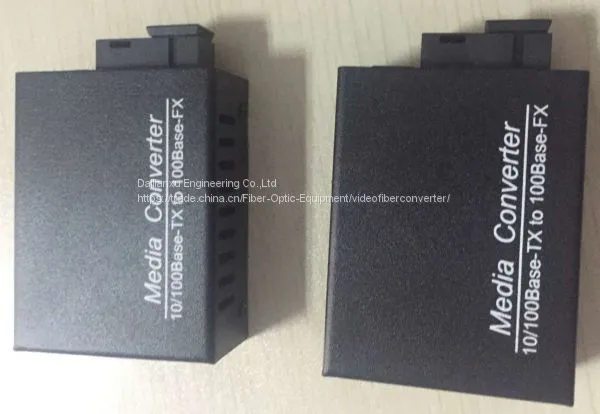

6.1x4.2x2.2cm Mini 10/100M Fast Ethernet Fiber Media Converter IP Camera to Fiber Converter

DLX-850 mini series 10/100M Ethernet Fiber Media Converter is a kind of media converter with the function of photo electricity switchover between 10Base-T twisted-pair and 10Base-FL optical cable or between 100Base-TX twisted-pair and 100Base-FX optical cable. It can extend the transmission distance of conventional 10M Ethernet or 100M Fast Ethernet to 100KM via the Fast Ethernet Fiber-optical Line. It can realize the connection between terminal and server, repeaters, hub, Exchanger or terminal easily. Realizes plug and play in the condition of without setup and drive.

Product Feature
Capable of filtering broadcast, automatic recognizing and modifying address with store-and-transmission operational mechanism

Fully compatible with IEEEE802.3, IEEE802.3U, IEEEE802.3X, IEEE802.1d

Supports full duplex flow control or half duplex back pressure flow control

Auto-negotiation for 10/100M and the bandwidth can be up to 200Mbps(full-duplex)

Advanced optical and electronic integration mechanism can supports good optic characteristic and electrical characteristic, and can ensure the high quality and excellent reliability of data transmit

Supports remote port management function via diagnostic and monitoring LEDs for the status of power, FX link/ACT, TX link/ACT

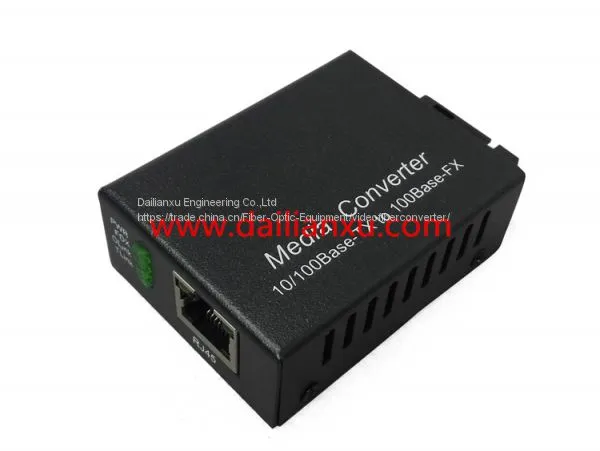

Supply one RJ-45 electrical port

Auto-negotiate to NIC/HUB and MDI/MDI-X

Optional power:External power supply

Average working time of fault free is more than 50,000hours,meet the standard of telecommunication operation

Technologies reference
Operating temperature: 0℃-50℃

Storage temperature: -40℃-70℃

Environment humidity: 5-90%(non-condensing)

Power parameters: 5V DC (External power supply)

Dimension: 6.1cmx4.2cmx2.2cm
