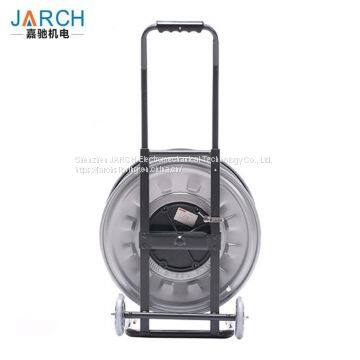

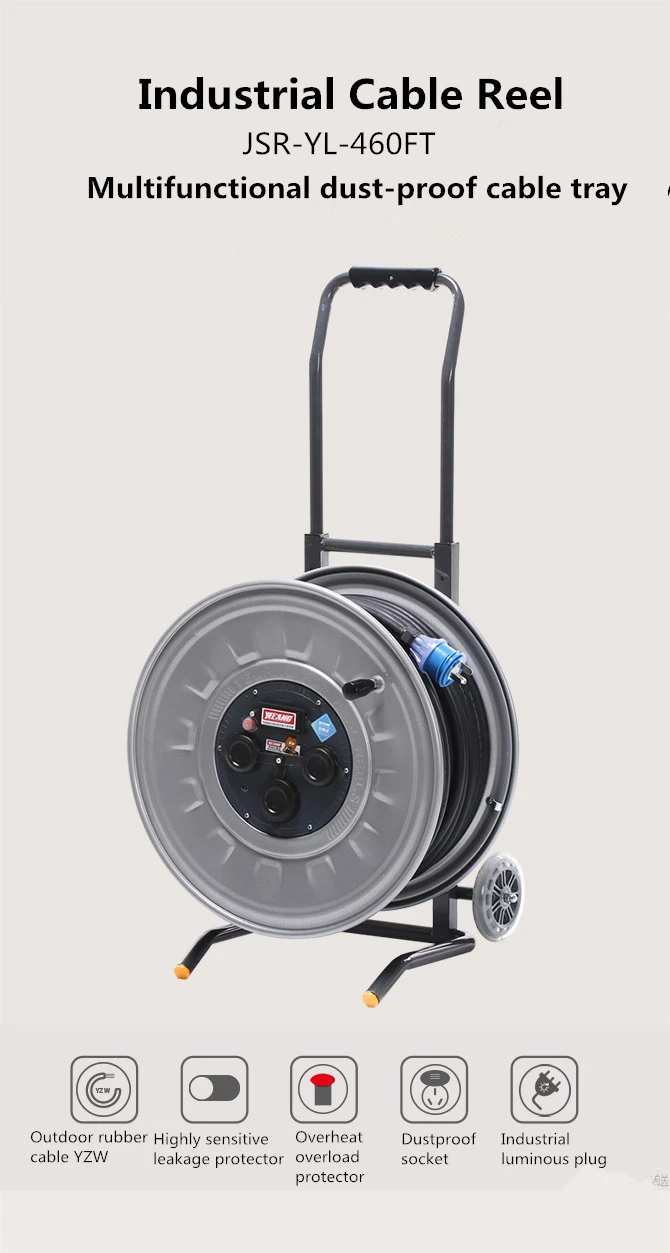

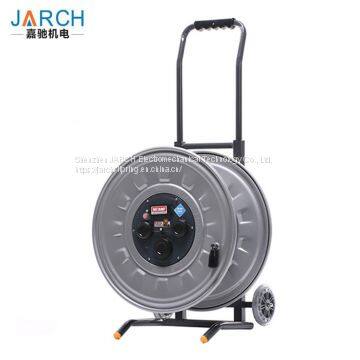

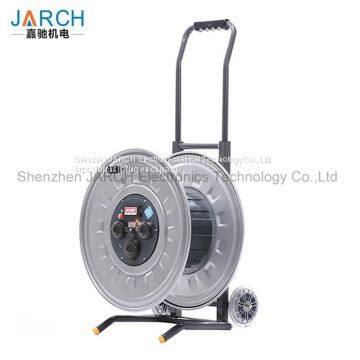

JARCH's Multifunctional dust-proof cable tray
|
Feature
1. High temperature socket panel
2. Ergonomic pickpocket
3. Industrial grade luminous plug
4. Dustproof socket
5.Overheat overload protector
6. leakage protector
7. Rotary handle
8. Card line device
Notice:
It is recommended to test the button" T " once a month to ensure safe use of electricity.

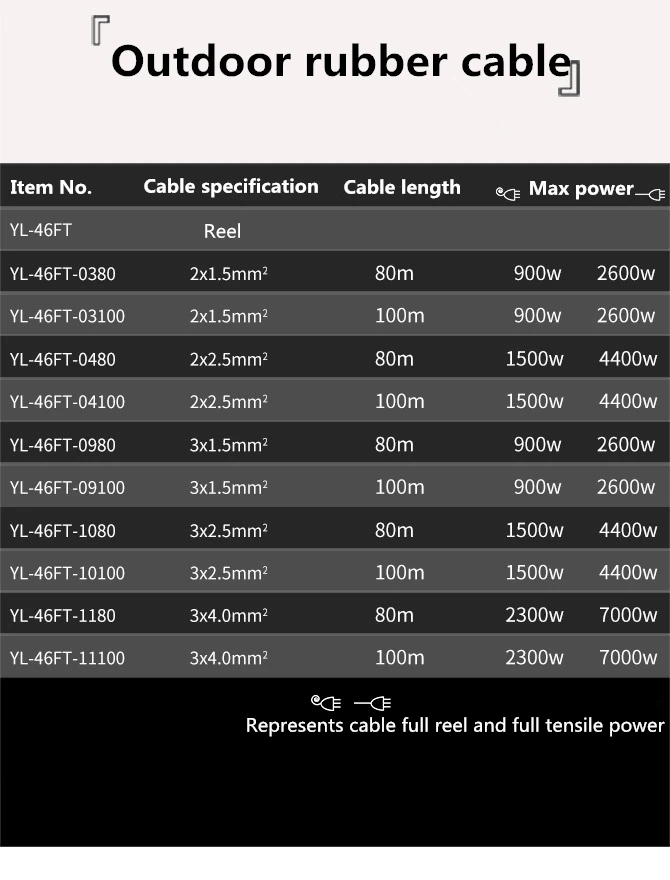

Rubber Cable for Reference

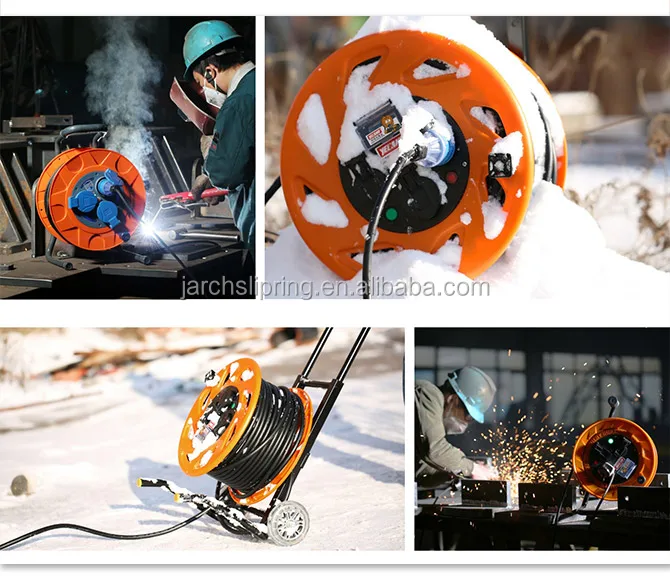

Application
JARCH Multifunctional Dustproof sockets rubber Cable Reel, extension cord reel drum cable tray 80m,100m
Jarch main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
4. Hybrid slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
7. Capsule slip ring series
8. Pancake slip ring series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
12.Miniature slip ring series
13.Wind turbine slip ring series
14.Ethernet slip ring series
15.Explosion proof slip ring series
16.Mercury slip ring series
17.Waterproof slip ring series
| Packaging Details: | Standard Export carton Package |
| Delivery Details: | Delivery time for Sample: 3 days / Delivery time for Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT...... |
Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.
To reduce spring tension:
This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.
*For Series D9000 reels, you will have to remove the bumper and control handle then feed end of hose through roller bracket assembly to add or remove wraps of hose from the reel drum.
2.How do I install a new drive spring and set pre-turns?
We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.
For how many wraps of "pre-tension" to put on the reel, please reference the chart below.
| Spring Number | Wraps Required |
| S400030 | 18 |
| S404230 | 13 |
| S504240 | 19 |
| S505740 | 13 |
| S503755 | 21 |
| S600050 | 21 |
| S600625 | 13 |
| S600620 | 19 |
| S504230 | 17 |
| 602718-80 | 33 |
| 602720-100 | 27 |
| 602720-70 | 25 |
| 602721-80 | 21 |
| 602733 | 33 |
3.Can my spring driven reel be made "constant tension"?
While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.
Please contact Reelcraft Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.
4.Reel will not latch
This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.
If you have any questions, pls contact us without any hesitation.
