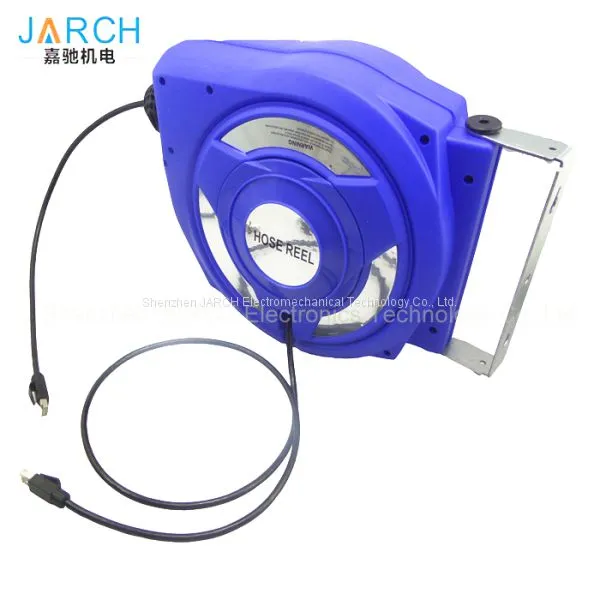

10~25m CAT6 CAT5E Retractable Data Network Ethernet Cable Reels With Slip Ring Inside

JARCH CAT6E CAT5E Retractable Data Network Ethernet Cable Reels

Our CAT6 cable reels are equipped with Category 6 cable.

Like CAT5e, CAT6 is sometimes referred to as network cable or Ethernet cable. They are ideal for use in mobile equipment or any building network application where a cable management solution is needed, such as conference rooms, lecture halls, work stations, or classrooms.

CAT6 cables can be assembled into any of our standard housings and can be customized for special applications.

Features:

1. Industrial grade PU material high-flex cable, which is specially used for winding bending and long service life.

2. Industrial grade shielded cable connector.
3. Special precision conductive slip ring inside, with shielding, can be used in complex electromagnetic environment

5M Network Ethernet Cable Reels as below:

1. Product specifications of CAT6 Retractable Data Network Ethernet Cable Reels

Material: plastic
Disc diameter: 160 (mm)
Width of disk: 55.8 (mm)
Weight: 0.5 (kg)
Rated voltage: 220/50HZ or 125V/60HZ
Rated Current-Contact Current: 10A
Outer box size: 50*35*38CM.30pcs/box
Product color: black
Product certification: 3C/UL
Main Uses: Network Connection, etc.
Product packaging: PE bag;
Processing customization: support customization

2. Technical Indicators of Electrical Characteristics of CAT6 Retractable Data Network Ethernet Cable Reels

1. Wire specifications: shielded wire 8*0.3 m_ (8 cores 0.3 square) (customized according to customer requirements, four cores, 6 cores mesh wire can be done.)
2. Certification Standard: CCC Certification Standard
3. Main Material: ABS Fireproof Material
4. Fire Protection Level: VO
5. Wire Length: 5M
6. Rated voltage: 300/500V
7. Strength of pull-out and roll-back: (KGf): > 1.6-2.2kgf

[Suitable for environment] of CAT6 Retractable Data Network Ethernet Cable Reels

It is suitable for transmission lines, electrical equipment, instruments, automation equipment, security and anti-theft alarm system, high-rise building intercom system, household lighting connection lines, etc. under 500V. It is convenient for cable reception, protects cable from mechanical damage and chemical corrosion, and prolongs the service life of products.
