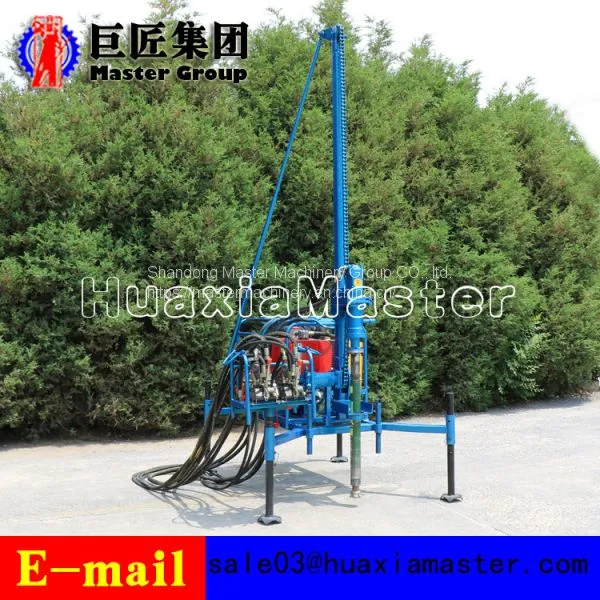

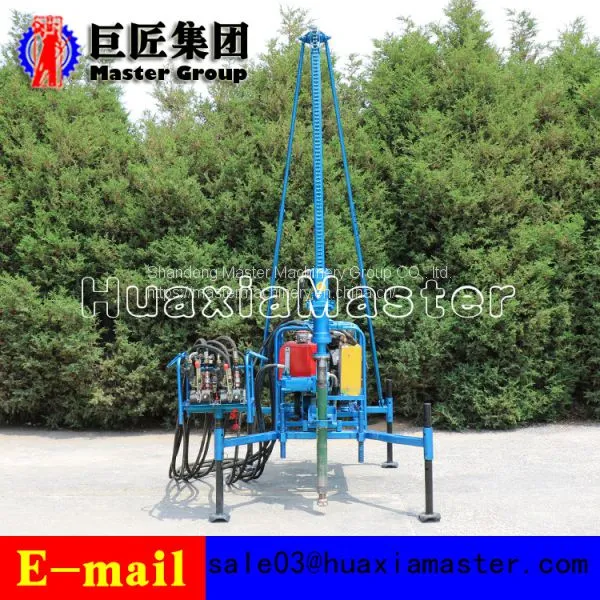

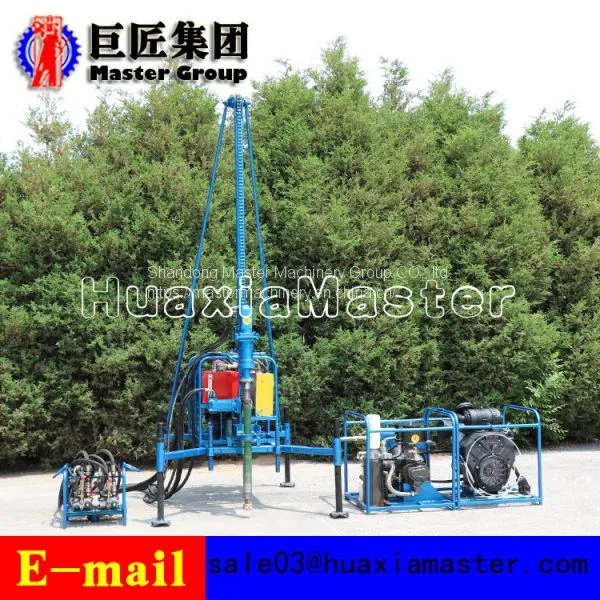

Help CenterSDZ-30S Hot Sales Portable Hydraulic Mountain Drilling Rig With Air Compressor
Related Products
-
Strong Recommend Full Hydraulic XYC-3 Vehicle-mounted Coring Drilling RigUS$ 4000 - 6000MOQ: 1 Set -
FY200 Air Driven Power Hammer Boring MachineWater Well Drilling Rig For SaleUS$ 6000 - 7500MOQ: 1 Set
-
600 Meters Air Driven Power Hammer Boring Machine Water Well Drilling Rig For SaleUS$ 10000 - 11600MOQ: 1 Set
-
HZ-200Y Diesel Power Hydraulic Press Rotary Diamond Rock Core Sample Machine For SaleUS$ 4000 - 8000MOQ: 1 Set
-
Diesel Engine Wheeled Mobile Hydraulic Rotary 600M Water Well Drilling Rig On PromotionUS$ 6000 - 7500MOQ: 1 Set
Key words: SDZ-30S: Mountain rig, portable mountain rig, small mountain rig, portable mountain rig, human mountain rig, split type mountain rig, hydraulic mountain rig, pneumatic mountain drill, geophysical drilling rig, mountain geophysical drilling rig, and mountain exploration rig.
1.Brief introduction of SDZ-30S mountain rig
SDZ-30S mountain drilling machine is the Shandong master’s machinery group combined with its own years of geophysical exploration drilling rig experience, and the integration of foreign excellent mountain rig, the giant group group SDZ-30 type mountain rig re optimization design and new promotion of a high price upgrade mountain rig. The SDZ-30S portable mountain drill can meet the construction requirements of air shock drilling and so on, so as to adapt to different geological environments. The SDZ-30S mountain geophysical drilling rig is now widely used in the mountainous, jungle, hilly, Gobi, loess tableland, seasonal farmland and other complex anhydrous areas, such as oil and gas seismic exploration, field investigation, geological structure investigation and other drilling engineering construction work.
2.Characteristics of SDZ-30S mountain rig
a.Light weight modular design is adopted for quick disassembly and assembly for easy handling.
b.The drilling rig and drill frame are strengthened and reinforced, which are more earthquake resistant and longer lasting.
c.The front end of the base is designed with two sets of screw support, and the drill rig is more stable when drilling.
d.adopt a new and optimized hydraulic system, with higher efficiency and better control.
e.the hydraulic oil tank is made by sheet metal process to reduce weld seam and use oil leakage for a long time.
f.Lengthening the tubing between the hydraulic pump station and the operation table can achieve 3 meters outside operation.
g.The screw type air compressor has the advantages of low energy consumption, low noise, high outgassing quality, stable exhaust pressure and low failure rate.
3.Technical parameters of SDZ-30S mountain rig
SDZ-30S Mountain rig | |||
|
Rig ability
|
Drilling method
|
Air shock drilling
|
|
Borehole diameter |
mm |
76 |
|
Borehole depth |
m |
30 |
|
Drilling pipe |
mm |
60*1500 |
|
Give a process |
mm |
1850 |
|
|
Hydraulic pump station
|
Gasoline engine power |
hp |
35 |
Rated pressure |
mpa |
20 |
|
Rated flow rate |
l/min |
60 |
|
|
Power head
|
Output torque |
n.m |
1000 |
Output speed |
r/min |
0-140 |
|
|
Pressurized lifting system
|
Rated pressure |
kn |
7.5 |
Rated lifting power |
kn |
15 |
|
Speed of lifting |
m/s |
0.77 |
|
|
Screw compressor
|
Gasoline engine power |
hp |
35 |
Exhaust volume |
m3/min |
3.5 |
|
Exhaust pressure |
mpa |
0.8 |
|
4.SDZ-30S mountain rig configuration list
|
number
|
Name
|
Unit |
Quantity
|
Remarks
|
1 |
Base assembly
|
Set |
1 |
It includes chassis, leg and screw support
|
2 |
Drill frame assembly |
Set |
1 |
It includes diagonal bar, mast, sprocket, chain, lifting motor, rotary motor and intake seat.
|
3 |
Power package of pump station
|
Set |
1 |
It includes frames, engines, pulleys and belts
|
4 |
Pump station assembly
|
Set |
1 |
It includes frame, hydraulic oil pump, hydraulic oil tank, hydraulic oil pipe and radiator.
|
5 |
Hydraulic tubing
|
Set |
1 |
It includes hydraulic tubing and connecting head |
6 |
Operating table
|
Set |
1 |
It includes frame, balance valve, control valve, operation handle and throttle valve |
7 |
Air compressor power package |
Set |
1 |
Contains frames, engines, pulleys, belts |
8 |
Screw compressor
|
Set |
1 |
It includes frame, air compressor and radiator |
9 |
Gas belt
|
Plate
|
1 |
It is used to connect air compressor and drill. |
10 |
60drill pipe |
M |
30 |
1.5m/root |
11 |
70Impactor |
Branch |
1 |
70 |
12 |
76Percussion bit |
Per |
1 |
76 |
