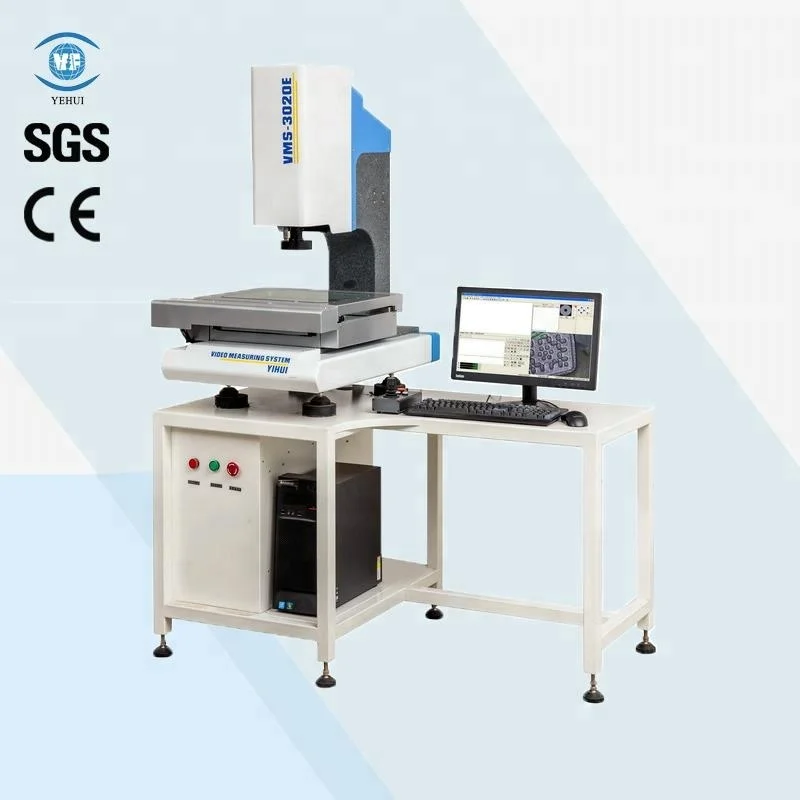

Economical CNC Video Measuring System VMS Series
I Feature
1. Double closed-loop motion control, motor in high-speed movement with precise positioning performance.2. Using the embedded modules developed to control motor, increasing motor speed accordingly, but also to simplify the instrument and the PC-interface, PC machines and instruments through the USB line and S-Video cable.
3. Surface light source formed by an independent group of 24, each group are constant current source driver and 200-step continuous variable.4. With my company-specific CNC software has greatly enhanced the efficiency measurement.
5. Granite base, column, high stability.
II Usage
VMS Series is an economical type CNC video measuring system produced by Yihui. It has been widely used in machinery, electronics, metalwork, plastics, mould, and other industries for precision automatic measurement.
III Specification
Model |
VMS-3020E |
VMS-4030E |
VMS-504E |
|||
|
Worktable |
Work table’s size(mm) |
500x330 |
606466 |
706x566 |
||
Glass table’s size(mm) |
350x280 |
450x350 |
550x450 |
|||
X,Y stroke (mm) |
300x200 |
400x300 |
500x400 |
|||
Z stroke (mm) |
150(focus) |
150(focus) |
150(focus |
|||
X.Y.Z-axis scale resolution |
1um |
1um |
1um |
|||
X.Y coordinates indication error |
Ex, y ≤(3+;L/200)um (L be regarded as length, unit:mm |
|||||
Instrument Weight (kg) |
270 |
325 |
500 |
|||
Dimension (mm) |
720x770x1000 |
700x1000x1020 |
800x1040x1020 |
|||
|
Motor |
Three-axis velocity |
X,Y:400mm/s Z :200mm/s |
||||
Three-axis positioning accuracy |
0.001mm |
|||||
Imaging System |
Camera |
TEO Color 1 / 2 "CCD Camera |
||||
Zoom lens |
German manual zoom lens |
|||||
Zoom lens magnification |
0.7-4.5X |
|||||
Total magnification |
20-128X |
|||||
Object field |
11.1-1.7mm |
|||||
Power |
AC220V/AC110V |
|||||
Power consumption |
600W |
|||||
Dongguan Yihui Optoelectronics Technology Co., Ltd.
Established in 2003, has 15-year experience in manufacturing optical instrument and 9-year experience in trading overseas. Yihui is equipped with professional Overseas Sales Team, R&D Dept. and After Sales Dept. to help our global clients settle measuring difficulties.
Quality Certificates: our machine has passed CE/SGS/ISO9001 certificated.
Warranty Assurances: Our machine has 12 month warranty date.

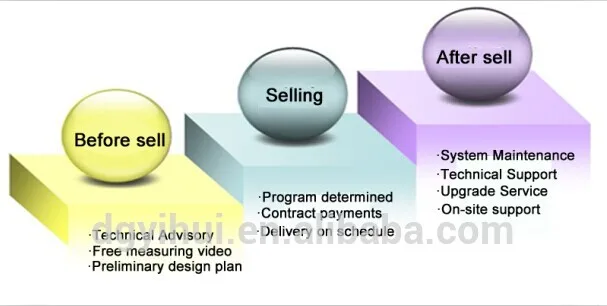

1. Top pre-sales support: the professional sales engineers ans product engineer will provide the best service, technology solutions and suitable machine.
2. Top after-sales support: the free national unity service hotline is provided .
3..Positive attitude is our commitment to our customers.
