2D Manual Vision Measuring System I Usage

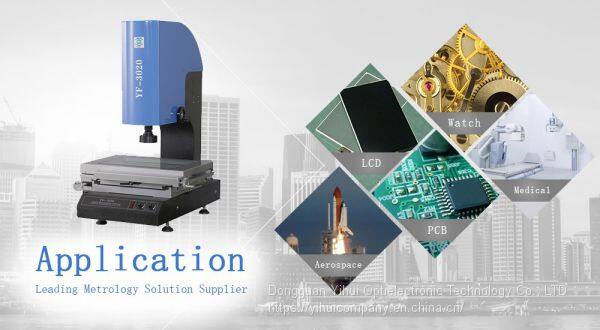

YF-Series is the basic type manual Video Measuring System developed by Yihui. It has been widely used in machinery, electronics, metalwork, mould , plastic and other industries for precision measurement.
1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.
2. In metrology terms, the machine can test and dimension width, length, height, thickness, diameter, angel, straightness, flatness, perpendicularity, circular degree, coaxiality, etc.
3. Combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.
II Feature

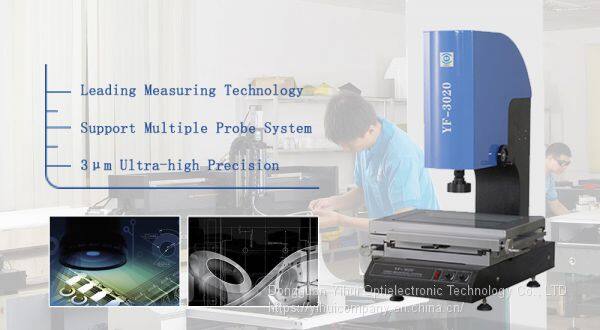

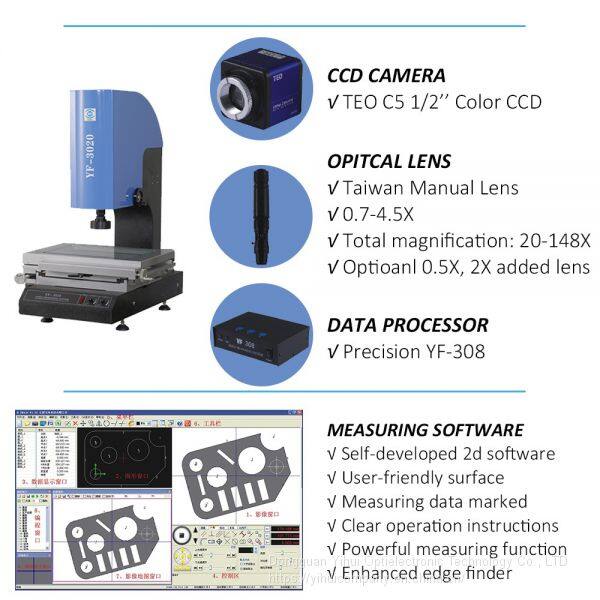

1. It adopts 1 / 2’’ color CCD camera, the cross-line generator is the measuring aiming system.
2. Digital measurement and data processing system are made up by the two coordinate’s studio, the optical grating and the SDK series data card.
3. It has RS-232 interface with a computer and specialized measurement software which can also processes and output circular mapping. Measurement data can be directly transformed into AutoCAD file and become a full work circle; the data also can be entered in Excel and Word to conduct statistical analysis.
4. Granite base and column, high stability.
III Specification
Model |
YF-2010 |
YF-3020 |
YF-4030 |
YF-5040 |
|
Worktable |
Work table dimension(mm) |
404x228 |
500x330 |
606x466 |
706x466 |
Glass table dimension(mm) |
260x160 |
350x280 |
450x350 |
550x350 |
|
Stroke(mm) |
200x100 |
300x200 |
400x300 |
500x400 |
|
Weight(kg) |
180 |
260 |
315 |
500 |
|
Dimension (L)x(W)x(H) |
556x540x860 |
670x660x950 |
720x950x1020 |
800x1040x1020 |
|
|
Measuring system (Standard Accessories) |
Camera: 1/2” color CCD camera |
||||
Zoom lens magnification: 0.7-4.5X WD:92mm | |||||
Video magnification: 30-190X FOV: 7-1.1mm | |||||
Scale resolution: 0.001mm | |||||
Z-axis stroke(mm) |
150mm |
||||
accuracy |
Ex,y |
||||
Power |
220(AC), 50HZ 30W |
||||
IV Packing & Delivery

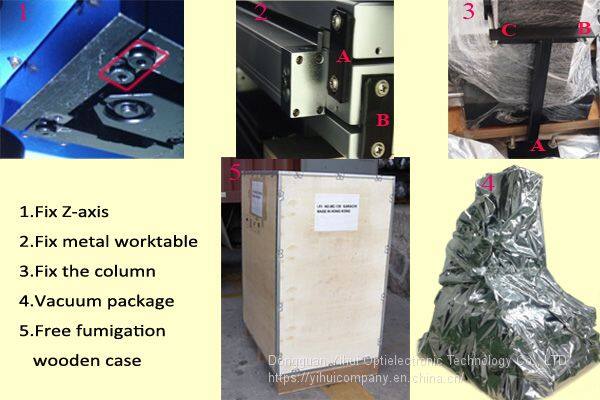

Packaging Details：vacuum packing & free fumigation wooden case
Port：shenzhen
V Company Information
Dongguan Yihui Optoelectronics Technology Co.,Ltd. was established in 2003, which is a high-tech enterprise.. Our main products are: video measurement system, measurement profile projector, cmm, tool microscope etc. We have 15-year experience in manufacturing optical measuring instrument and 9-year experience in trading overseas. Yihui is equipped with professional Overseas Sales Team, R&D Dept. and After Sales Dept. to help our global clients settle measuring difficulties.
VI Service
1.Top production management and quality control: using advanced technology and equipment for the production. Every aspect of the production has strict quality control to ensure the high quality of products available to all customers.
2. Top pre-sales support: the professional sales engineers ans product engineer will provide the best service, technology solutions and suitable machine.
3. Top after-sales support: the free national unity service hotline is provided.
