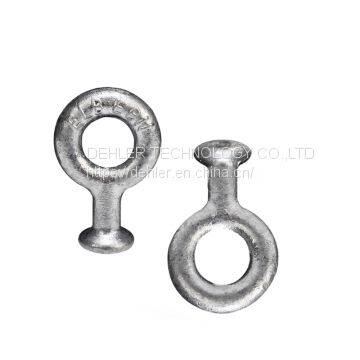

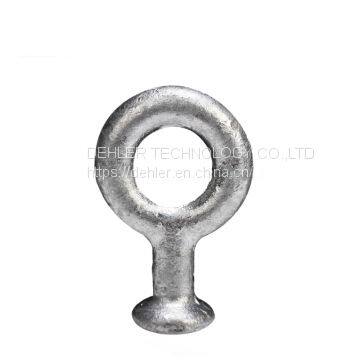

Q-7, Qp-7 Type Ball Eyes Hardware Power Fitting
Company Introduction:
Dehler Technology Co., Ltd. specializes in producing high and low voltage switchgear, box type substation, cable branch box, outdoor vacuum circuit breaker, isolation switch, grounding switch, load switch and low voltage components and other products.
Product Introduction:
Ball eyes are used to attach ball and socket insulators to other associated hardware. The use of the ball oval eye and an anchor shackle is one of the most common distribution tower attachment combinations.

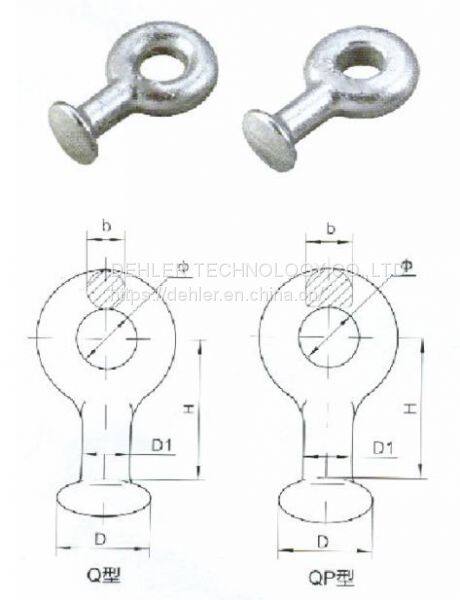

| Universal Model No | Catalog No. | Main Size(mm) |
Connecting Marker |
Specified Failure Load(kN) |
Weight (kg) |
||||
| Φ | b | H | D | D1 | |||||
| Q-7 | 22 | 16 | 50 | 33.3 | 17 | 16 | 70 | 0.3 | |
| QP-7 | 20 | 16 | 50 | 33.3 | 17 | 16 | 70 | 0.3 | |
| QP-10 | 20 | 16 | 50 | 33.3 | 17 | 16 | 100 | 0.3 | |
| QP-12 | 24 | 16 | 60 | 33.3 | 17 | 16 | 120 | 0.5 | |
| QP-12G | 24 | 18 | 60 | 33.3 | 17 | 16 | 120 | 0.4 | |
| QP-16 | 26 | 20 | 60 | 41.0 | 21 | 20 | 160 | 0.5 | |
| QP-20 | 26 | 24 | 80 | 49.0 | 25 | 24 | 200 | 1.0 | |
| QP-21D | 30 | 24 | 70 | 41.0 | 21 | 20 | 210 | 0.9 | |
| QP-30 | 39 | 28 | 80 | 49.0 | 25 | 24 | 300 | 1.1 | |
| QP-0750 | 20 | 16 | 50 | 33.3 | 17 | 16 | 70 | 0.3 | |
| QP-1050 | 20 | 16 | 50 | 33.3 | 17 | 16 | 100 | 0.3 | |
| QP-1260 | 24 | 16 | 60 | 33.3 | 17 | 16 | 120 | 0.4 | |
| QP-1660 | 26 | 18 | 60 | 41.0 | 21 | 20 | 160 | 0.5 | |
| QP-2180 | 26 | 20 | 80 | 41.0 | 21 | 20 | 210 | 0.7 | |
| QP-2580 | 30 | 24 | 80 | 49.0 | 25 | 24 | 250 | 1.0 | |
| QP-3280 | 33 | 28 | 80 | 49.0 | 25 | 24 | 320 | 1.2 | |
Hot-dip galvanized steel.
