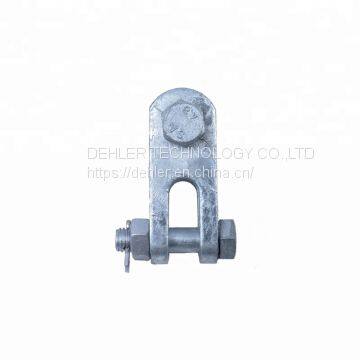

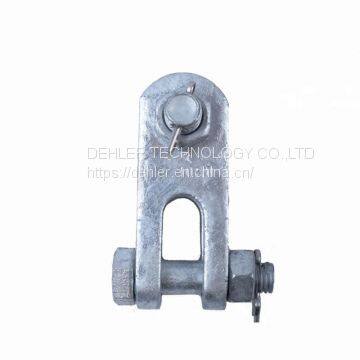

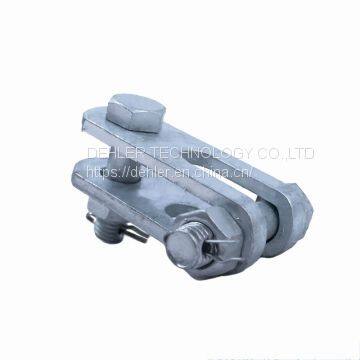

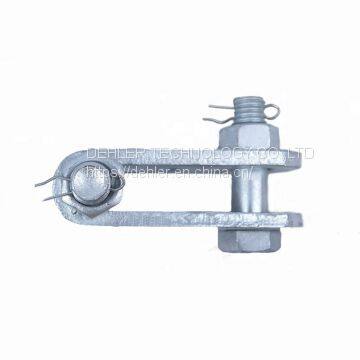

Good Price Overhead Power Line Accessories Z Type Clevis/Right Angle Plates
US$ 0.2 - 1
MOQ: 100 Sets
Key Specifications
Get Latest Price
Brand Name:
Dehler
Place of Origin:
China
Model Number:
Z Type Clevis
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XTS Type Suspension Clamps for Twin Jumper ConductorsUS$ 0.2 - 1MOQ: 100 Sets -
XGH Aluminum Alloy Suspension Bridge Cable Clamps for Fiber Optic CableUS$ 0.2 - 1MOQ: 100 Sets
-
Xgu Trunnion Type Suspension Clamp Electric Pole ClampUS$ 0.2 - 1MOQ: 100 Sets
-
Xgj Type High Quality Suspension Clamp/Power Fitting HardwareUS$ 0.2 - 1MOQ: 100 Sets
-
Xcs Aluminum Alloy Suspension Clamp for Twin WireUS$ 0.2 - 1MOQ: 100 Sets
Brand Name
Dehler
Place of Origin
China
Model Number
Z Type Clevis
Material
Stainless Steel
Usage
Other, Power Fitting
Standard or Nonstandard
Standard
Structure
Other, Strain Clamp
Company Introduction:
Dehler Technology Co., Ltd. specializes in producing high and low voltage switchgear, box type substation, cable branch box, outdoor vacuum circuit breaker, isolation switch, grounding switch, load switch and low voltage components and other products.
Product Introduction:
Z Type Clevis is widely used to connect insulator & insulator, or connect insulator and ground wire clamp to tower arms or subjection structures.
|
Universal Model No. |
Catalog No. |

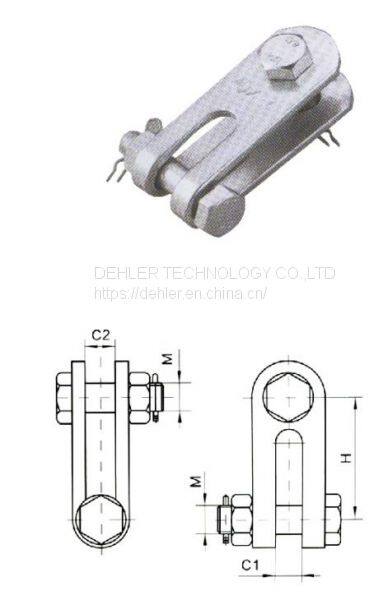

Main Size(mm) | Specified Failure Load (kN) |
Weight (kg) |
|||
| C1 | C2 | M | H | ||||
| Z-7 | 20 | 20 | 16 | 80 | 70 | 0.56 | |
| Z-10 | 20 | 20 | 18 | 80 | 100 | 0.87 | |
| Z-12 | 24 | 24 | 22 | 100 | 120 | 1.16 | |
| Z-16 | 26 | 26 | 24 | 100 | 160 | 2.38 | |
| Z-21 | 30 | 30 | 27 | 120 | 210 | 3.85 | |
| Z-25 | 33 | 33 | 30 | 120 | 250 | 5.00 | |
| Z-0780 | 20 | 20 | 16 | 80 | 70 | 0.70 | |
| Z-1080 | 20 | 20 | 18 | 80 | 100 | 0.90 | |
| Z-12100 | 20 | 24 | 22 | 100 | 120 | 1.30 | |
| Z-16100 | 22 | 26 | 24 | 100 | 160 | 2.90 | |
| Z-21100 | 24 | 26 | 24 | 100 | 210 | 3.40 | |
| Z-25110 | 28 | 30 | 27 | 110 | 250 | 3.80 | |
The cotter pins are stainless steel. The other parts are hot-dip galvanized steelwork.
|
Universal Model No. |
Catalog No. |
Main Size(mm) | Specified Failure Load(kN) |
Weight (kg) |
|||
| C1 | C2 | M | H | ||||
| Z1-25 | 34 | 34 | 30 | 100 | 250 | 2.8 | |
| Z-30 | 38 | 38 | 36 | 135 | 300 | 5.4 | |
| Z-40 | 42 | 42 | 36 | 150 | 400 | 8.6 | |
| Z-60 | 50 | 50 | 48 | 180 | 600 | 19.6 | |
| Z-321135 | 32 | 32 | 30 | 135 | 320 | 8.0 | |
| Z-42150 | 36 | 36 | 36 | 150 | 420 | 8.4 | |
The cotter pins are stainless steel. The other parts are hot-dip galvanized steelwork.
