Ny High Quality Electricity Transmission Strain Clamps Made in China

Ny High Quality Electricity Transmission Strain Clamps Made in China thumbnail-1
Ny High Quality Electricity Transmission Strain Clamps Made in China thumbnail-2
Ny High Quality Electricity Transmission Strain Clamps Made in China thumbnail-3
Ny High Quality Electricity Transmission Strain Clamps Made in China thumbnail-4
Ny High Quality Electricity Transmission Strain Clamps Made in China photo-1
Ny High Quality Electricity Transmission Strain Clamps Made in China photo-2
Ny High Quality Electricity Transmission Strain Clamps Made in China photo-3
Ny High Quality Electricity Transmission Strain Clamps Made in China photo-4
US$ 0.2 - 1 MOQ: 100 Sets
Key Specifications
Get Latest Price
Brand Name:
Dehler
Place of Origin:
China
Model Number:
Ny
Contact Supplier Request Quote Chat Now
Dehler Technology Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Dehler
Place of Origin China
Model Number Ny
Material Stainless Steel
Usage Other, Power Fitting
Standard or Nonstandard Standard
Structure Other, Strain Clamp

Company Introduction:

Dehler Technology Co., Ltd. specializes in producing high and low voltage switchgear, box type substation, cable branch box, outdoor vacuum circuit breaker, isolation switch, grounding switch, load switch and low voltage components and other products.

Product Introduction:

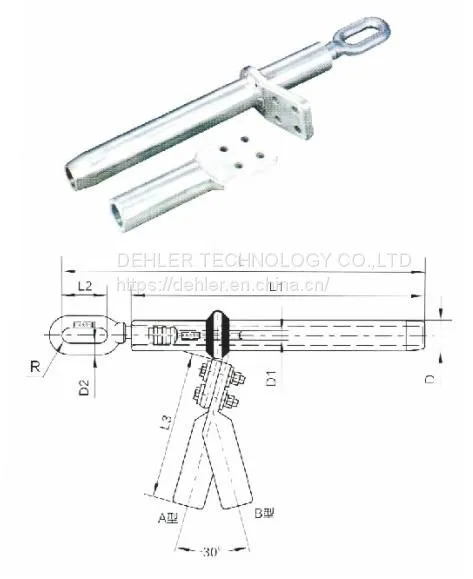

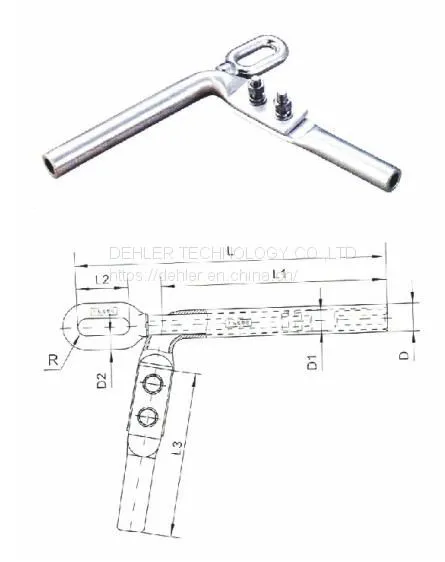

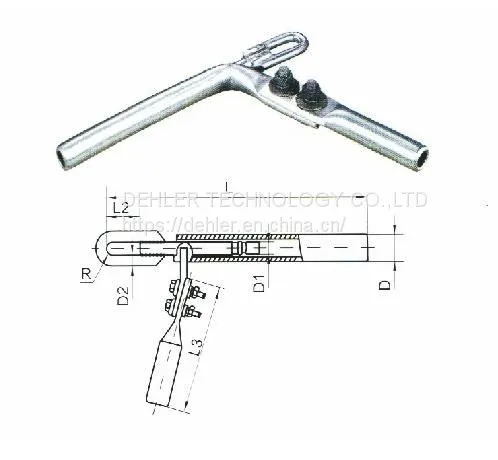

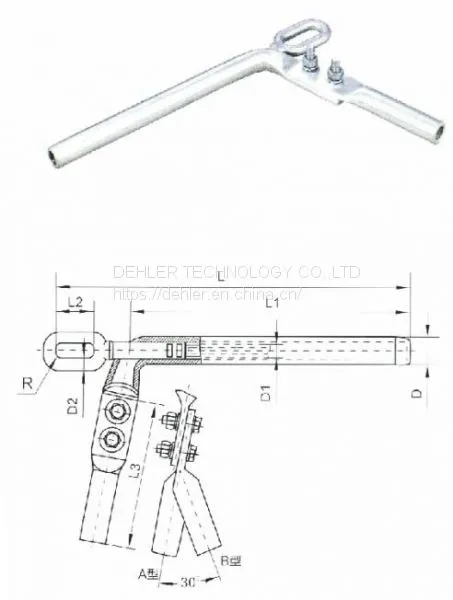

NY type hydraulic compression tension clamp used for ground wire is used to fix & connect conductor onto the tension insulator string or the fittings on pole & tower through sustaining tensile force generated by the conductor.It is made up of high-strength aluminum & steel materials, with clean surface & durable usage period; meanwhile it is easy for installation, free of hysteresis loss, low carbon & energy saving.

Catalog
No. 		Suitable
Wire 		Main Size(mm) Grip
Strength
(kN] 		Weight
(kg)
L L1 L2 L3 D D1 D2 R
NY-50/8 LGJ-50/8 355 250 55 190 26 12 16 10 16.1
NY-50/30 LGJ-50/30 405 300 55 190 30 14 16 10 40.5 1.59
NY-70/10 LGJ-70/10 385 280 55 200 26 12 16 10 22.3 1.28
NY-70/40 LGJ-70/40 455 350 55 200 32 18 16 10 55.4 1.90
NY-95/15 LGJ-95/15 385 280 55 205 26 14 16 10 33.3 1.25
NY-95/20 LGJ-95/20 385 280 55 205 26 14 16 10 35.4 1.29
NY-95/55 LGJ-95/55 495 380 65 205 34 20 18 11 74.2 2.26
NY-120/7 LGJ-120/7 385 280 55 205 30 12 16 10 26.2
NY-120/20 LGJ-120/20 405 300 55 205 30 14 16 10 39.0 1.55
NY-120/25 LGJ-120/25 425 320 55 205 30 14 16 10 45.5 1.50
NY-120/70 LGJ-120/70 535 420 65 215 36 22 18 11 93.5 2.66
NY-150/8 LGJ-150/8 415 295 55 210 30 12 16 10 31.3 1.54
NY-150/20 LGJ-150/20 435 320 65 210 30 14 16 10 44.3 1.47
NY-150/25 LGJ-150/25 445 330 65 210 30 14 16 10 51.4 1.59
NY-150/35 LGJ-150/35 465 350 65 210 30 16 16 10 61.8 1.60
NY-185/25 LGJ-185/25 465 350 65 230 32 14 16 10 56.5 1.99
NY-185/30 LGJ-185/30 465 350 65 230 32 16 16 10 61.1 2.03
NY-185/45 LGJ-185/45 485 370 65 230 32 18 18 11 76.2 2.22
NY-240/30 LGJ-240/30 505 390 65 230 36 16 18 11 71.9 2.59
NY-240/40 LGJ-240/40 505 390 65 250 36 16 18 11 79.2 2.59
NY-240/55 LGJ-240/55 540 420 65 250 36 20 20 12 97.0 2.87
NY-300/15 LGJ-300/15 495 380 65 250 40 14 16 10 64.7
NY-300/20 LGJ-300/20 510 390 70 265 40 14 18 11 71.9 2.92
NY-300/25 LGJ-300/25 520 400 70 265 40 14 18 11 79.3 2.97
NY-300/40 LGJ-300/40 540 420 70 265 40 16 18 11 87.6 3.07
NY-300/50 LGJ-300/50 557 430 78 265 40 18 20 12 98.3 3.23
NY-300/70 LGJ-300/70 563 460 78 265 42 22 22 13 121.6 3.82
NY-400/20 LGJ-400/20 560 440 70 270 45 14 18 11 84.4 3.69
NY-400/25 LGJ-400/25 560 440 70 270 45 14 18 11 91.2 3.62
NY-400/35 LGJ-400/35 573 440 78 270 45 16 20 12 98.7 3.89
NY-400/50 LGJ-400/50 593 460 78 270 45 20 22 13 117.3 4.14
NY-400/65 LGJ-400/65 616 480 78 270 48 22 22 13 128.5 4.22
NY-400/95 LGJ-400/95 663 520 80 270 48 26 24 15 162.8 5.23

Catalog
No. 		Suitable
Wire 		Main Size(mm) Grip
Strength
(kN7 		Weight
(kg)
L L1 L2 L3 D D1 D2 R
NY-500/300 LGJ-500/35 598 480 78 260 52 16 22 13 113.6 4.85
NY-500/46 LGJ-500/46 598 480 78 260 52 18 22 13 121.7 4.90
NY-500/65 LGJ-500/B5 628 510 78 260 52 22 22 13 146.3 4.97
NY-630/46 LGJ-630/46 608 490 78 290 60 18 22 15 141.3 7.05
NY-630/55 LGJ-630/55 635 510 80 290 60 20 24 15 156.2 7.34
NY-630/80 LGJ-630/80 675 550 80 290 60 24 24 15 183.3 9.85
NY-800/55 LGJ-800/55 725 580 100 335 65 20 26 17 182.0 10.16
NY-800/70 LGJ-800/70 775 630 100 335 65 22 26 17 196.7
NY-800/100 LGJ-800/100 775 630 100 335 65 26 26 17 229.0 10.75

Catalog
No. 		Dia. of Steel Wire(mm) Main Size(mm) Grip
Strength
(kN) 		Weight
_
L L1 L2 D1 D2 d R
NY-35G 7.8 200 115 55 16 16 8.4 10 45 0.47
NY-50G 9.0 215 130 55 18 16 9.7 10 60 0.51
NY-55G 9.6 225 140 55 20 16 10.2 10 70 0.58
NY-70G 11.0 250 155 65 22 18 11.7 11 88 0.76
NY-80G 11.5 260 175 55 24 18 12.2 11 90 0.89
NY-100G 13.0 285 185 65 26 20 13.5 11 123 1.36
NY-120G 14.0 313 195 78 28 22 14.7 12 143 1.53
NY-135G 15.0 338 215 78 30 22 15.7 13 164 1.65
NY-150G 16.0 335 230 80 32 24 16.7 15 187

Catalog
No. 		Suitable
Wire 		Main Size(mm) Grip
Strength
(kN) 		Weight
(kg)
L L2 L3 D D1 D2 R
NY-240Q LGJQ-240 420 55 255 38 22 16 11 66 2.24
NY-300Q LGJQ-300 410 55 265 40 22 18 12 80 2.75
NY-400Q LGJQ-400 505 70 280 45 24 18 12 103 3.58
NY-500Q LGJQ-500 540 78 245 52 28 20 14 129 4.35
NY-600Q LGJQ-600 560 80 290 55 33 22 15 151 5.50
NY-700Q LGJQ-700 575 80 290 60 36 24 18 180 6.30

The clamp bodies and jumper wire clamps are made of aluminum while the other parts, hot-dip galvanized steelwork, suitable for standard 74 wire.

Catalog
No. 		Suitable
Wire 		Main Size(mm) Grip
Strength
(kN) 		Weight
(kg)
L L1 L2 L3 D D1 D2 R
NY-35BG JLB20A-35 325 230 55 200 32 18 16 10 38 1.92
NY-50BG JLB20A-50 345 250 55 200 32 18 16 10 57 1.96
NY-65BG JLB20A-65 390 285 65 210 36 22 18 11 73 2.71
NY-70BG JLB20A-70 390 285 65 210 36 22 18 11 78 2.76
NY-80BG JLB20A-80 435 325 65 210 36 24 18 11 85 3.15
NY-95BG JLB20A-95 450 340 65 250 40 26 18 11 96 3.75
NY-100BG.1 JLB20A-100 465 340 78 250 40 28 20 13 116 4.34
NY-100BG.2 JLB30A-100 435 325 65 210 36 24 18 11 76 3.25
NY-120BG.1 JLB20A-120 465 340 78 250 42 30 22 13 129 5.00
NY-120BG.2 JLB30A-120 450 340 65 250 40 26 18 11 92 3.75
NY-150BG.1 JLB20A-150 535 390 85 260 45 32 24 15 170 6.62
NY-150BG.2 JLB30A-150 465 340 78 250 40 28 20 13 112 4.34
NY-185BG.1 JLB20A-185 575 435 85 260 48 34 24 15 199 7.92
NY-185BG.2 JLB30A-185 465 340 78 250 42 30 22 13 138 5.10

The clamp bodies and jumper wire clamps are made of aluminum; and the other parts, hot-dip galvanized steelwork.
