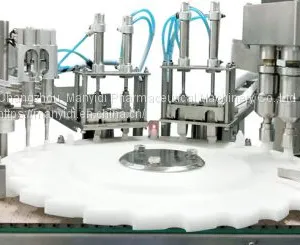

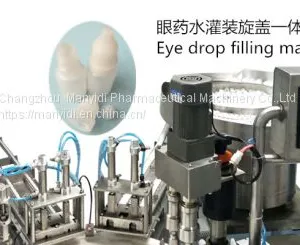

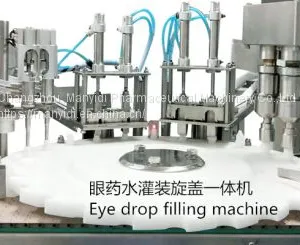

Eyedrop Bottle Filling Machine Capper

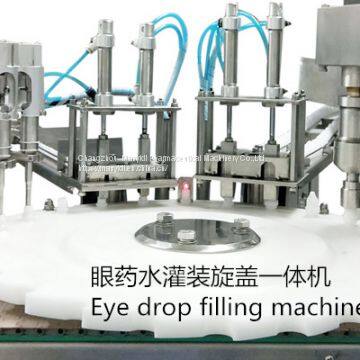

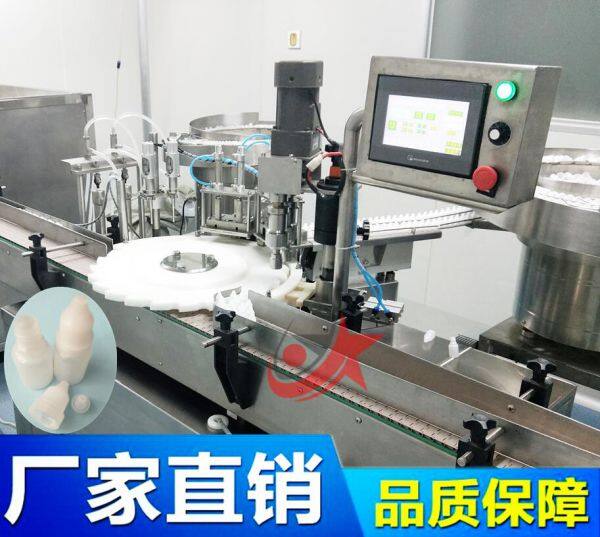

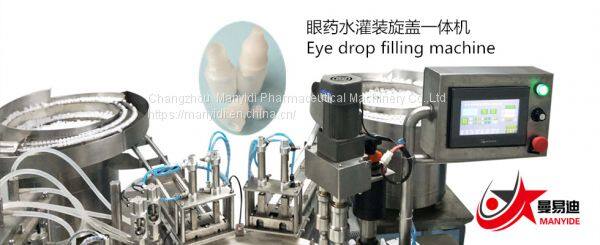

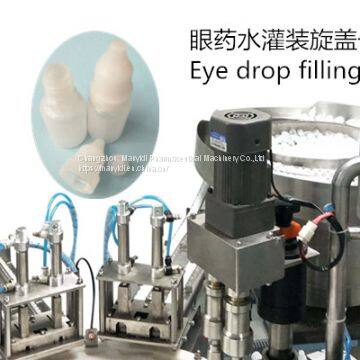

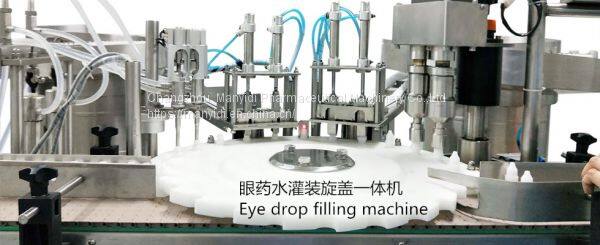

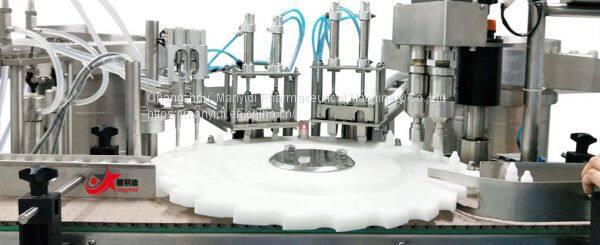

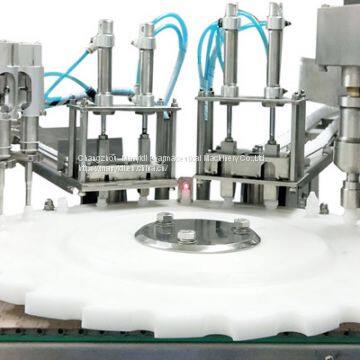

Eyedrop bottle filling machine capper

Purpose and introduction:

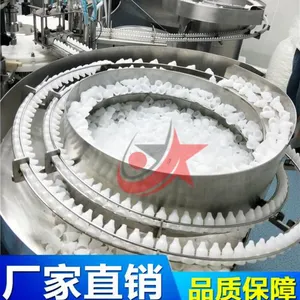

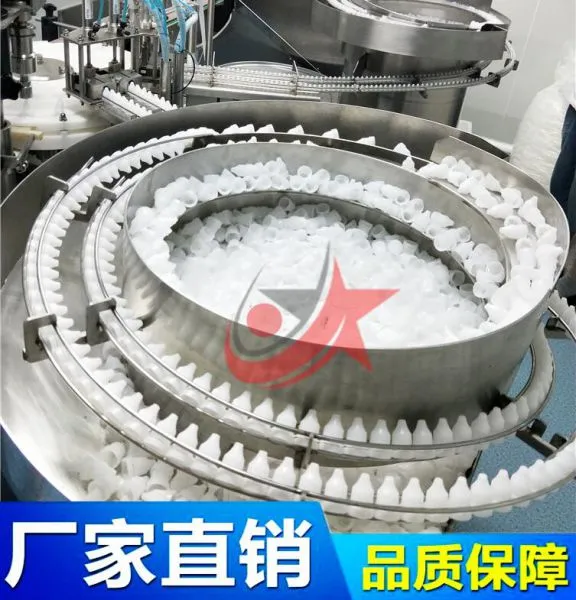

This machine is suitable for filling eyedrops of round flat plastic or glass bottles of 2-30ML of various materials.The machine is provided by high-precision cam indexing mechanism with indexing plate positioning upper plug cover.Acceleration cam transmission provides the lifting of screw cap head;constant torque screw cap;ceramic pump metering filling;touch screen control.No bottle filling,no inner plug and outer cover. The utility model has the advantages of accurate positioning, smooth transmission, protection of the bottle cap, accurate measurement and simple operation. Special control adds a slideway system to the pagoda and the inner cover, ensuring the top cover rate of the lid 100%!

Characteristic:

1, microcomputer setting, accurate loading and easy operation.

2, the main engine speed can be stepless frequency conversion.

3, automatic quantitative control of production volume.

4, a variety of troubleshooting functions (such as low air pressure). No filling, no inner plug, etc.

5, automatic shutdown function, no continuous filling for any track, no stoppage can be automatically stopped.

Technical parameters:

Applicable specification: 2-30ml

Production capacity: 60-80 bottles / min

Filling accuracy: less than or equal to 1%

Power: 220V/50Hz

Rotation (rolling) coverage ratio: greater than 99.9%

Automatic plug rate: greater than or equal to 99.9%

Air source: 1.3 m3/h 0.3-0.8Mpa

Power: 2 kW

Net weight of machine: 550 kg

Outline size: 4000*1100*1500mm
