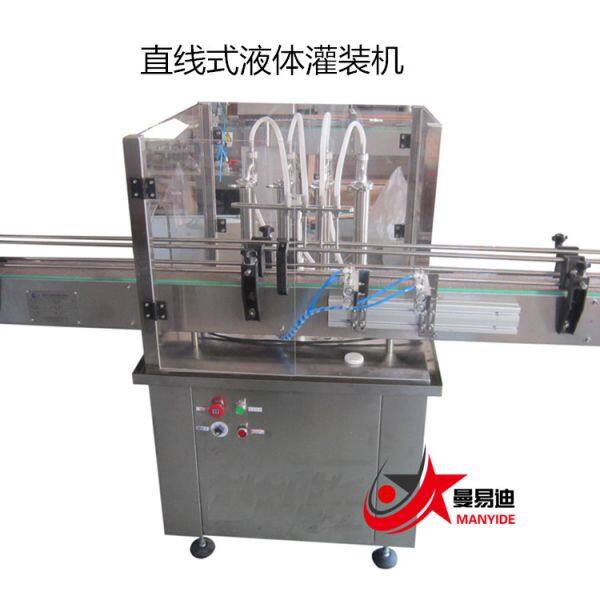

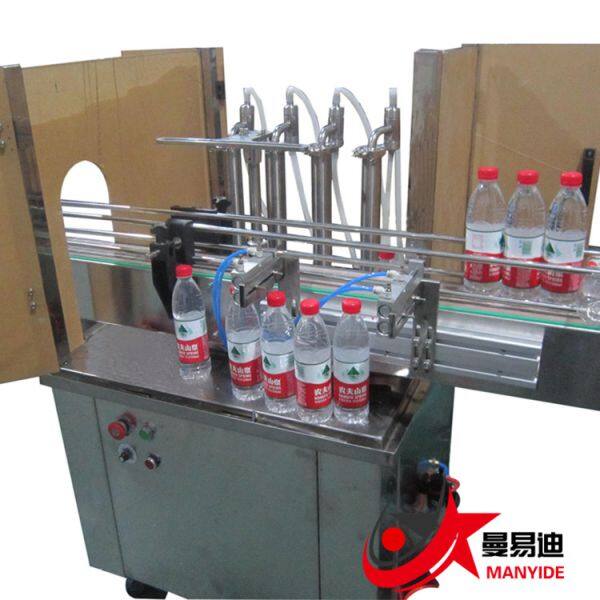

Linear liquid filling machine is a semi-automatic filling machine, customers can according to their own production needs, configuration of turntable mold, multi-functional filling can be achieved 20-500 ml different liquid filling, such as toner, bubble water, essential oil, eyedrops, sprays and so on.
Technical parameters of linear liquid filling machine:
Power: 0.5KW
Filling volume: 20ml-500ml
Filling speed: 40-100 pieces per minute.
Filling head: four (customized according to filling speed requirements)
Error: + 0.3%
Weight: 150kg
Appearance: all stainless steel protective cover.
Rated voltage: 220V 50/60Hz
Host size: 1200*800*1340mm
Packing: wooden case packing
The characteristics of linear liquid filling machine are:
1. the filling volume is adjustable from 100ml-500ml, the section is stable and accurate, and the error is small.

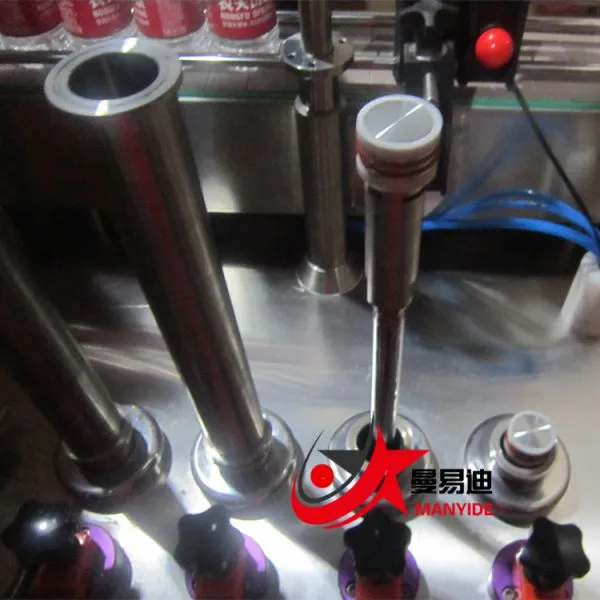

2. select 316L/304L stainless steel pump, reliable quality and long life.
3. stainless steel chassis, desktop style, small size, durable.
4. quick fit connector, easy to operate, easy to clean and disinfect.
It can be applied to the assembly line. It can be equipped with multiple filling heads. The commonly used models are single filling machine, double head filling machine and four filling machines. Most types of liquids can be filled, including highly viscous liquids. For example, there are no granulated liquids such as pharmaceuticals, chemicals, oils, cosmetics and foodstuffs.
Welcome customers to inquire about liquid filling machine linear filling machine Multi-Filling machine single filling machine semi-automatic filling machine and other specifications!
