Smt Panasonic CM602-L Pick and Place Machine

Smt Panasonic CM602-L Pick and Place Machine thumbnail-1
Smt Panasonic CM602-L Pick and Place Machine thumbnail-2

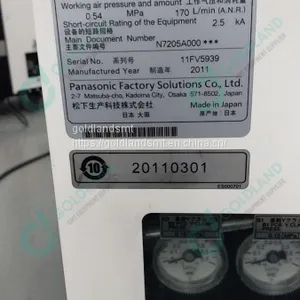

Smt Panasonic CM602-L Pick and Place Machine thumbnail-3
Smt Panasonic CM602-L Pick and Place Machine photo-1
Smt Panasonic CM602-L Pick and Place Machine photo-2

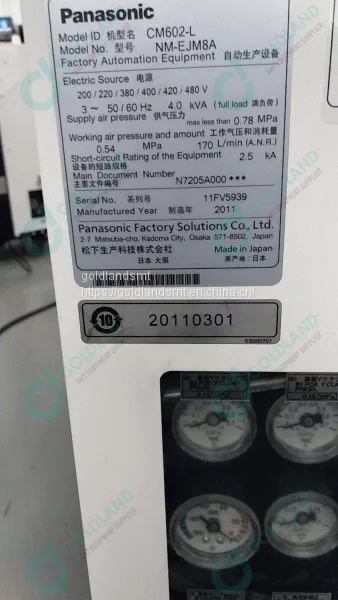

Smt Panasonic CM602-L Pick and Place Machine photo-3
US$ 30000 - 40000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
panasonic
Place of Origin:
China
Model Number:
CM602
Contact Supplier Request Quote Chat Now
Goldlandsmt
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name panasonic
Place of Origin China
Model Number CM602

Panasonic CM602-L pick and place machine

If interest,feel free to contact me :jcak@goldlandsmt.com

MODEL ID: CM602-L

MODEL NUMBER:  NM-EJM8A

PCB DIMENSIONS:  L 50 mm x W 50mm to L 510 mm × W 460 mm

HEAD TYPE:  High-speed head (Type A-2 head,12/12 nozzles)  (OPTION)

 Number of nozzles:    12 nozzles

 Maximum speed:    0.036 s/chip (100,000 cph)

 Placement accuracy:    ±40um/chip

 Component dimensions:  (01005")0402 chip*5 to L 12mm x W12mm xT6.5mm

HEAD TYPE:  High-Flexibility Head                          (OPTION)

 Number of nozzles:    LS 8 nozzles

 Maximum speed:    0.048 s/chip (75,000 cph)

 Placement accuracy:    ±40um/chip, ±35um/QFP≧24mm, ±50um/QFP

 Component dimensions:  (01005")0402 chip*5 to L 32mm x W32mm xT8.5mm*8

HEAD TYPE:    Multi-Functional Head                          (OPTION)

 Number of nozzles:    3 nozzles

 Maximum speed:    0.18 s/QFP (20,000 cph)

 Placement accuracy:    ±35 um/QFP

 Component dimensions:    (0201")0603 chip to L 100mm x W 90mm xT 25mm*7

PCB EXCHANGE TIME:  0.9s (board length: up to 240mm under optimum conditions)

ELECTRIC SOURCE:  3-phase AC 200,220,380,400,420,480V, 4.0kVA

PNEUMATIC SOURCE:    490 kPa, 170 L/min (A.N.R)

DIMENSIONS  W 2,350 mm x D 2,290 mm *2 x H 1,430 mm *3

MASS    3,400 kg
