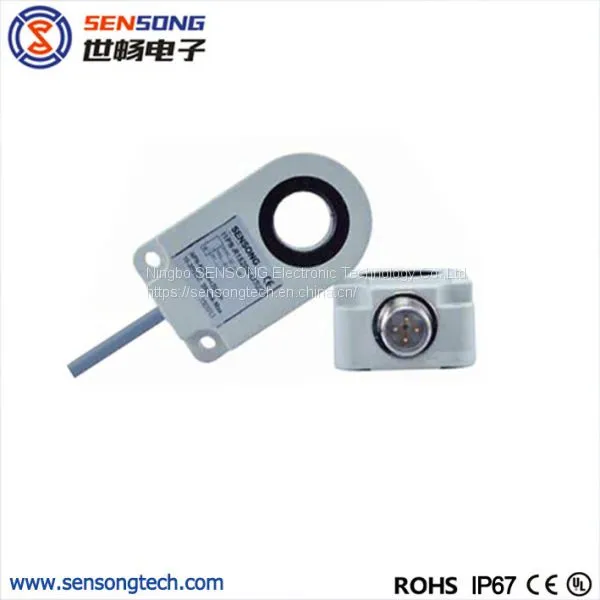

Help Center6mm 10mm 15mm 21mm Inside Diameter Ring Shape Inductive Sensor
Related Products
-
Spool Position Sensor for Hydraulic Directional Valve Relief ValveUS$ 1 - 50MOQ: 50 Pieces -
M18mm Ultrasonic / Sensor SwitchUS$ 10 - 15MOQ: 50 Pieces
-
Through-Beam Diffuse Rotro-Reflective Laser Proximity Sensor/SwitcUS$ 100 - 120MOQ: 50 Pieces
-
M18 Metal Steel Face Inductive Proximity Sensor SwitchUS$ 10 - 15MOQ: 50 Pieces
-
31mm Square Diffuse Retro-Reflective Photoelectric SensorUS$ 15 - 20MOQ: 50 Pieces
SENSONG brand Static Ring and Tube Sensors operate like inductive sensors. They generate an output signal when there is metal in the detection zone. For example, the sensors can be used for jam control in feed processes. Dynamic sensors are used when particularly small parts are to be detected. During a damping operation a short pulse is generated at the output of the sensor, adjustable from 0.1 to 150 ms. The functionality will remain stable for a long time, even in the case of metal contamination in the tube.
An inductive sensor to detects metallic objects without requiring physical contact with the targets to be sensed. SENSONG offers a broad range of robust inductive sensors to suit a wide variety of industrial applications. Usually this type sensor have a operating voltage range of 10-30VDC,10-55VDC,10-60VDC with NPN-NO,NPN-NC,PNP-NO,PNP-NC output function and connection versions like 2m PVC Cable version, 3 Pins Pico Style M8 Connector version and 4 Pins Euro Style M12 Connector version.Now SENSONG industrial sensors mainly are Inductive Proximity Sensors, Metal Face Inductive Proximity Sensors, Analog Output Inductive Proximity Sensors, Corrosion Resistance Proximity Sensors, Weld Field Immune Inductive Proximity Sensors, Namur Inductive Proximity Sensors, Ring Inductive Proximity Sensors, High Pressure Resistance Inductive Proximity Sensors, Magnetic Hall Sensors, Capacitive Proximity Sensors, Photoelectric Sensors, Laser Sensors, Safety Light Curtain, sensor connectors, etc.
Advantages of inductive proximity sensor
1. Using self-developed special IC improve anti-jamming performance
2. Built-in power reverse connection protection circuit (DC3 wire)
3. Long life, high reliability, economic and simple operation
4. Yellow / Red LED can confirm the proximity switch working state
5. IP67/IP68 degree of protection (IEC) specifications
6. Widely used alternative micro switch and the limit switch
| Diameter | 6mm/10mm /15mm/21mm |
Response Time | 0.1ms | |
| Switching Distance | 20mm | Switching Hysteresis | ||
| Housing Material | PBT | Repeat Accuracy | ||
| With LED | Yes | Protection Category | IP67 | |
| Operating Voltage | 10-30VDC | Operating Temperature | -25ºC-+70ºC | |
| Ripple | Temperature Drift | |||
| No Load Current | Short circuit protection | Yes | ||
| Max.Load Current | 200mA | Reverse polarity protection | Yes | |
| Leakge Current | Overload Trip Point | 220mA | ||
| Voltage Drop | Certifications | CE,ROHS,UL | ||
| Switching Frequency | 2KHZ | Connection | 2m Cable M12 Connector |
FAQ
What is our MOQ?
Sample: 1pcs (charged) Order:100 pcs OEM item: Depends on your Qty.
How to purchase SENSONG inductive / capacitive /photoelectric sensors?
Step-1) Please tell us the model No.you are interested in ,Quantity,sensing distance,out put function and other specification
Step-2) Please tell us your installation environment,working temperature,we could recommend the most suitable products.
Step-3) Proforma Invoice with order details as your requested will be sent to your mailbox,goods will be delivered upon receipt of your full payment and shipping instruction
