Application: cemented carbide bars, Polycrystallin
Introduction to resin diamond grinding wheel
The resin bond diamond wheels are mainly used for grinding tungsten carbide and non-metal materials. Various kinds of dimensions and shapes are available, such as flat shapes, cup shapes and dish shapes, etc.
Feature |

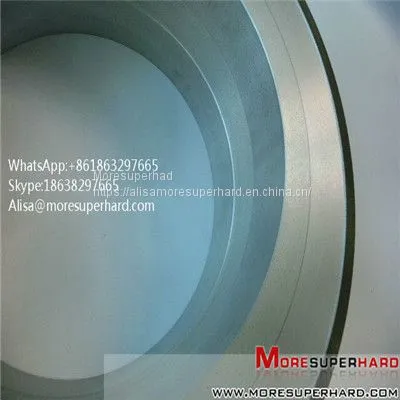

1:Name:Centerless Diamond Grinding Wheel |
|
2:Type Code: 1A1, 6A1, 9A1
|
3:Material: Diamond, CBN |
5:Line speed: 35~80 (M/S) |
6:Grit: 80#~5000# (D251-D1) |
7:Application Industry: Jewelry, Automobile, Aerospace, Oil drilling, Coal mining, Metal processing |
8:Certification: ISO 9001:2008 |
9:Diamond grit: #100, #150, #200, #300, #400, or upon your request |
10:Type: straight wheel, bowl-shaped wheel, cup-shaped wheel, dish- shaped wheel |
Product Feature |
Resin bond diamond grinding wheel model: |
Application of centerless diamond grinding wheels:
rough, semi-finish and finish grinding of cemented carbide bars , PDC Cutter (Polycrystalline Diamond Compacts), tungsten carbide, ceramics, magnetic material, stainless steel bar, PCD and PCBN composites.
Features of centerless diamond grinding wheels:
1：high roundness
2：good surface finish
3:superior grinding action
4:bulk removing of materials
5:competitive price
6: long life .
Specification of centerless grinding wheels:
Model |
D (mm) |
H (mm) |
T (mm) |
X (mm) |
|
1A1 6A1 9A1 |
200 |
75 |
50 |
5, 10 |
305 |
120 |
150 |
5, 10 |
|
350 |
127 |
125 |
5, 10 |
|
400 |
203 |
150 |
5, 10 |
|
455 |
228.6 |
205 |
5, 10 |
|
500 |
127 |
125, 150, 200 |
5, 10 |
|
600 |
305 |
200, 400, 600 |
10 |
|
other specification can be made according to customers requirements | ||||
Centerless wheels for the centerless grinding machines:
Centreless (centerless) grinding can perform excellent roundness of the work piece.The workpiece is supported by a work rest blade and set between a rubber regulating wheel that rotates the workpiece and a rotating grinding wheel.The mainly centerless grinding machines: Koyo, Crystec, Dedtru, Landis , Okuma, Paragon, Royal Master, Unison, WMV and so on.
Why choose our grinding wheel
|
Our product’s advantages: 1.High grinding efficiency |
2.Wonderful edge quality |
3.Long service life |
4.High polishing efficiency |
5.Large Exports |
6.Considerable after-sell service |
7.Amazing performance |
8.Various types and sizes available |
9.Direct Factory Manufacturer |
10.Backing/substrate material: Aluminum |
11.Abrasive layer: diamond |
12.Bond: vitrified |
13.Excellent cutting edges |
14.Reduced cycle times |
15.Custom Engineered |
If you have any questions, please contact us
WhatsApp:+8618638297665
Skype:18638297665
Alisa@moresuperhard.com
Tel:18638297665
URL:
