Diamond and CBN Cup grinding wheels
As a major manufacturer and supplier of diamond and CBN wheels, Hongtuo owns a large production line for producing resin bond grinding wheels at an annual production of 40,000 units each year. Our resin bond diamond and CBN wheels are available flat, cup shaped, bowl shaped, and a cylindrical shape. These bonded abrasive products can be used to sharpen cutters on various materials, slotting axis parts, cutting quartz and glass, grinding end faces, and the internal bore of metals.
These resin bond grinding wheels are suited for use in German Swiss, and Chinese grinding machines, and have garnered high praise among their users. When purchasing a Hongtuo grinding product, please inform us of the related information about your grinding machine and work pieces that will be machined, so that we may recommend the best abrasive tool for the project.
Description of the resin diamond grinding wheel:
The resin bond diamond wheels are mainly used for grinding tungsten carbide and non-metal materals. Various kinds of dimensions and shapes are available, such as flat shapes, cup shapes and dish shapes, etc.
Features:
1. Excellent sensitivity, it is easy to recondition and reconditioning during use is unnecessary
2. It ensures a great surface finish accuracy.
3. The work piece will not be burned.
4. The wheels can work on a number of odd shapes.

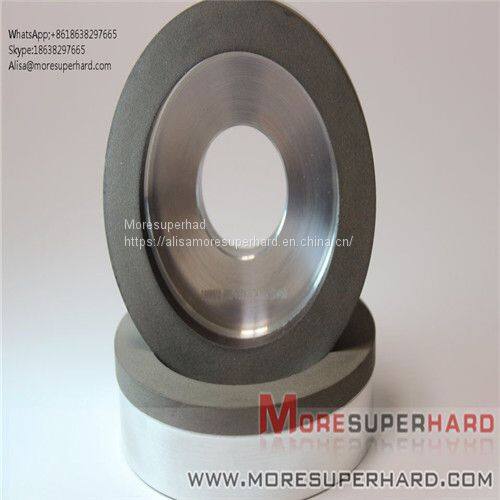

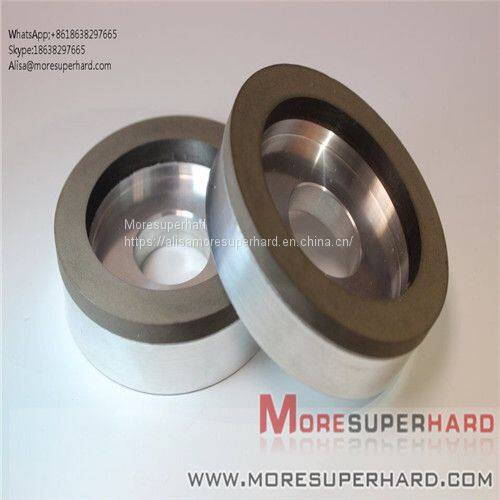

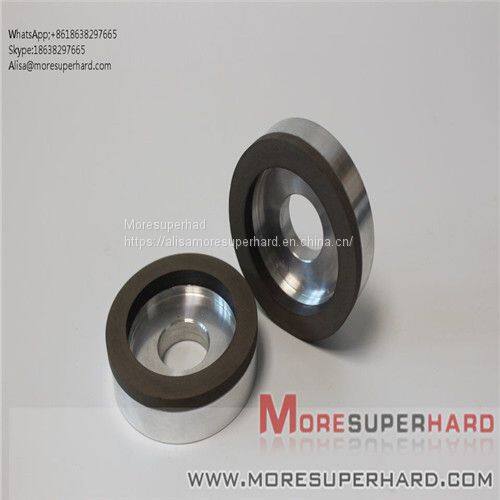

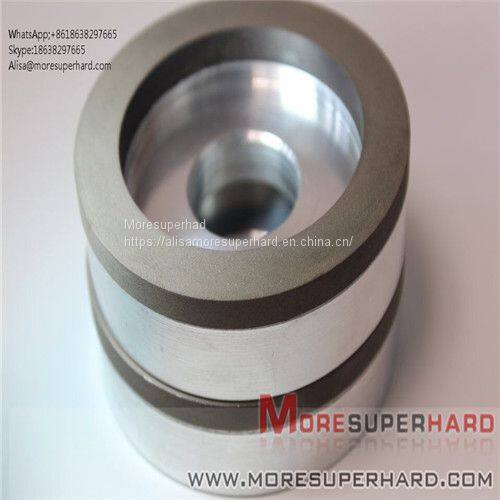

6A2 Resin Bond Cup Cbn Grinding Wheels,skype:nina-superhardtools |
Specification of resin diamond grinding wheel:
Type: 1A1,1V1,1A1R,6A2,6A9,3A1,9A1,11V9,12A2,14A1 etc.
Diameters: 25mm-500mm
Thickness: 5mm-40mm
Grit: 80# -5000# (D251-D1)
Hole: 10mm-127mm
Concentration: 25%, 50%, 75%, 100%, 125%, 150%

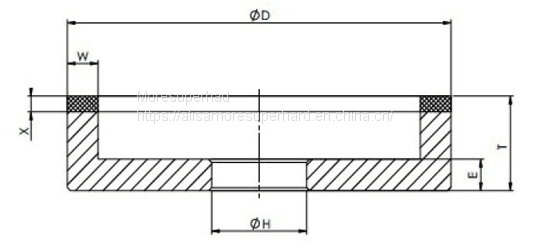

Specifications Of Vitrified Diamond Grinding Wheel:
MoDel |
D(Mm) |
T(Mm) |
H(Mm) |
W(Mm) |
X(Mm) |
|
6A2 |
150 |
40 |
32,40 |
5,10,15 |
10 |
125 |
40 |
32,40 |
5,10,15 |
10 |
|
100 |
40 |
20,32,40 |
5,10,15 |
10 |
|
Grit: 325/400, W40(500#), W28(600#), W20(800#) , W10(1500#),W5(3000#),W3(5000#) | |||||
Characteristics of Resin Bond Wheels
1. Resin bond usually has some added filler such as organic and inorganic materials, metals, etc. into the phenolic resin in order to control its wear resistance, heat resistance, grit retention and lubrication.
2. Resin wheels are low in Young’s modulus, therefore they have excellent characteristics in: processing efficiency, free cutting, surface finish, and minimal chipping.
3. Resin bond wheels have shorter wheel life because the adhesion between the grit and the bond is not as strong as that of metal bond wheels. However, resin bond has much better cutting ability when processing hard-to-grind materials such as cermets, cermets, ceramics, etc.
4. The diamond and CBN abrasives used for resin bond wheels are different from those used for metal bond. They are irregular-shaped and easy to microfracture. By doing so, they also create new cutting edges constantly while grinding. In order to improve grit retention, the diamond is metal-coated and the surface is more uneven shaped.
5. Resin wheels are typically used for wet grinding, but they can be used for dry grinding by adding some filler to reduce heat generated by grinding and improving their cutting ability.
Application:
Resin bond diamond wheel mainly used for grinding carbide, non-metallic material, crispy hard alloy, non-metallic mineral, such as carbide, ceramic, agate, silicon,magnetic,self-fluxing alloy material,PCD & PCDN and so on. , wear resistant cast iron, stone materials
Resin bond CBN wheels are suitable for machining high speed steel,cast iron and so on.
Grain Size Selection Of Vitrified Diamond Grinding Wheel:
|
Grain Size
|
Machining Type |
Application |
|
W40(500#, D35) W28 (600#, D20) |
Rough |
Regrinding A Blade Edge Profiling And Sharpening Of Much Worn Inserts. |
W14(1200#,D15) |
Universal |
Standard Grain Size-Can Also Getting A High Sharpening Efficiency, Good Quality Machined Surfaces . |
W10(1500#, D15) |
Finish |
Finishing Grinding – Getting A Very Good Quality Of Machined Surfaces. |
|
W5(4000#, D3) W3.5(5000#,D1) |
Super Finish |
Super Finish Grinding – Getting A Brilliant Quality Of Machined Surfaces. |
* Others Grit Can Be Made According To Customer’s Requirements. | ||
FAQ:
Q1. Can I negotiate the price
A: yes, you can. We will give some discount according to your quantity.
Q2. How can know my order’s production progress?
A: we will keep closely track the production and shipment progress. And we will inform you with the newest progress about producing and shipping.
Q3. How can you ensure the quality of your products?
A: We have pass the ISO 9001:2008. If there is any problem with our products, please send me the detailed picture of the problem, once we verify it, we will change the products for you within 30 days.
Q4: When I contact you is suitable?
You can contact Us at any time, we promise that we will reply you within 12 hours.
A:So, please contact me for more information about our product, service and related issues.
Resin diamond wheel products1:resin cup diamond wheel
2:resin diamond polishing wheel
3: CNC resin diamond grinding wheel
4:resin diamond cutting wheel
5:resin diamond wheel for glass
6:resin centerless grinding wheel
7: resin diamond profile wheel
Products Range:
1. vitrified bond/resin bond/Metal bond/Electroplated diamond grinding wheel & other diamond tools
2. PCD milling tools, PCD turning tools, PCD drilling tools, PCD engraving tools, PCD/pcbn inserts, PCD/pcbn cutting tools, PCD/pcbn grooving tools, CBN inserts
3. PCD/TSP diamond, CVD diamond tools, large size synthetic diamond, Natural diamond tools, diamond abrasive tools
4. diamond grinding&cutting discs, diamond cutting blade, diamond cup wheel, diamond dressers
5. Roller cutting tools, PDC cutters, PDC drill bits& PDC core bits
6. PCD tool grinder & PCD grinding machine
|
Our product’s advantages: 1.High grinding efficiency |
2.Wonderful edge quality |
3.Long service life |
4.High polishing efficiency |
5.Large Exports |
6.Considerable after-sell service |
7.Amazing performance |
8.Various types and sizes available |
9.Direct Factory Manufacturer |
10.Backing/substrate material: Aluminum |
11.Abrasive layer: diamond |
12.Bond: vitrified |
13.Excellent cutting edges |
14.Reduced cycle times |
15.Custom Engineered |
If you have any questions, please contact us
Whats App:+8618638297665
Skype:18638297665
Alisa@moresuperhard.com
Tel:18638297665
URL:
To meet your requirements in every way, we need the following information
----- Shape and Dimension of the wheels
----- Grit size (Mesh, refer to Table#1)
----- Concentration
----- Bond(Resinoid, Vitrified, Metallic, Electroplated)
----- Quantity
