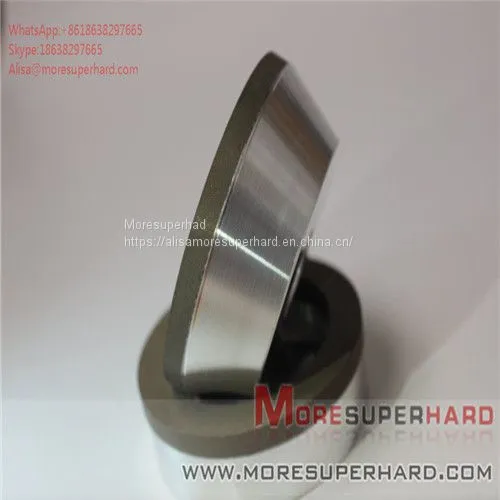

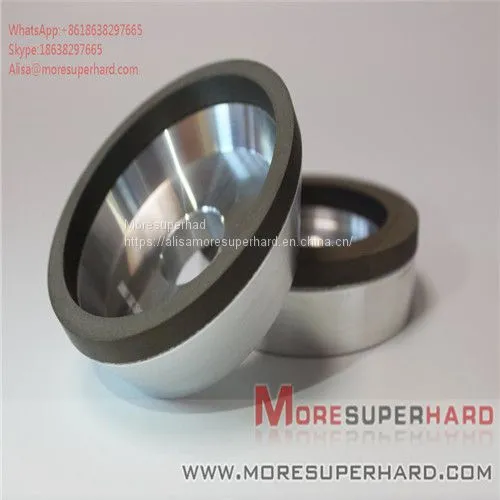

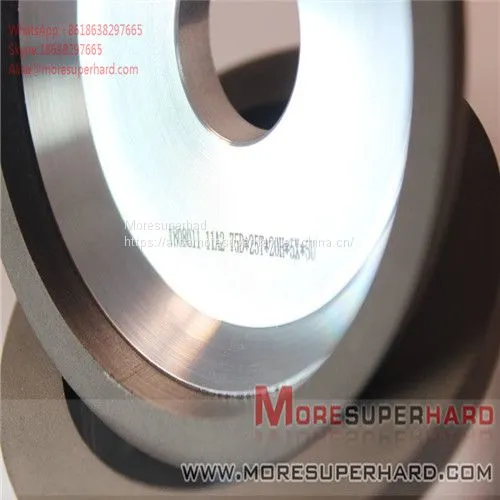

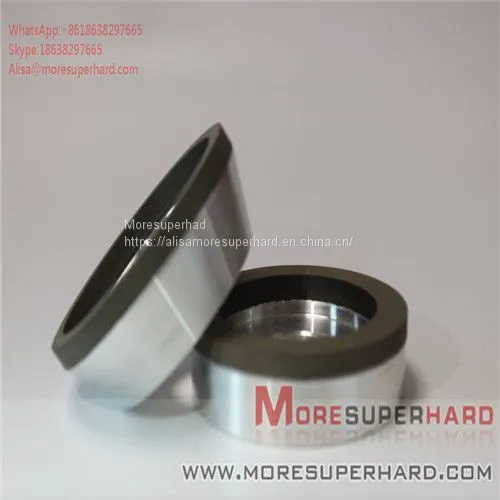

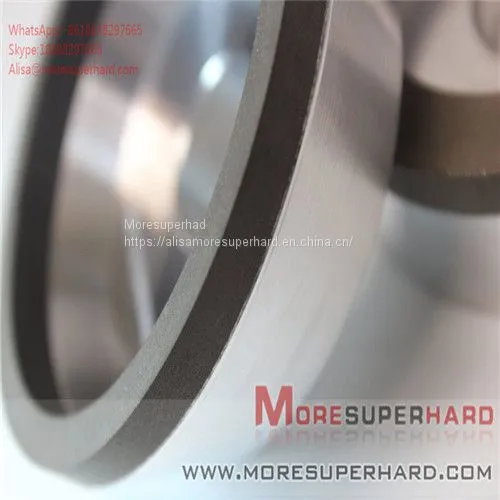

11A2 Diamond Grinding Wheel for Carbide, Resin- or Metal-bond is Available, Diamond Cup Wheels Alisa@moresuperhard.com

Introduction to resin diamond grinding wheel

The resin bond diamond wheels are mainly used for grinding tungsten carbide and non-metal materials. Various kinds of dimensions and shapes are available, such as flat shapes, cup shapes and dish shapes, etc.

Production of diamond grinding wheel with resin binder:

Resin as the bond material, metal powder, metal oxide, ordinary abrasive as filler mix to make the binding agent. The abrasive and binder are mixed into the molding material according to the requirements of concentration. The product is formed by hot pressing, curing and subsequent processing

Description:

brief description and superiority
Resin Bond CBN Grinding Wheel
1.High efficiency
2.Little grinding heat
3.Good sharpness
4.Name brand product made in China
detailed description
Resin Bond CBN Grinding Wheel

Application:

-11A2 Diamond grinding wheels used for sharpening and finishing of front surface of reamer teeth,hobbing cutters,circular saws,drawing dies and tools made of hard alloys.

-Machining of glass,ceramics,quarts,semi-conductors, PCD & PCBN tools and other non-metallic materials.

*The abrasive layer of the diamond grinding wheel is made of synthetic diamond powder in resin or vitrified bonds.

Features of 11A2 vitrified bond diamond grinding wheel:

Very Good Abrasion Resistance

Good Form-holding capability

Least Resistance to Damage

Chemical Stability

Controllable Stock Removal Rate and Surface Finish Characteristics

Heat Resistance

Well Performance

Specification of 11A2 diamond grinding wheel:

Resin diamond wheel products

1：resin cup diamond wheel

2:resin diamond polishing wheel

3: CNC resin diamond grinding wheel

4:resin diamond cutting wheel

5:resin diamond wheel for glass

6:resin centerless grinding wheel

Production process of Resin bond diamond grinding wheel

1. Mix: the binders and diamond powder are fully stirred and fused in a certain proportion

2. Weighing: weighing according to the volume, ring width and density of the grinding wheel required by the customer

3. Feeding: put mixed diamond powder and binding agent into the grinding tool

4: compression ring (let stand for a period of time to wait for molding)

5: back mould

6: the abrasive layer is air-dried

Cook for 10 hours at 7:670 degrees

8: cooling (prepare the matrix at the same time)

9. Fixed decoration of the whole

10: measure stationarity

Why choose our product

More SuperHard Products Co., Ltd is dedicated to finding solutions that help our clients in all markets succeed. More SuperHard has been manufacturing high-quality, competitively priced superabrasive diamond and cbn tools that are designed to perform in a wide range of industrial ,such as pcd tools grinding, natural diamond polishing, auto parts processing , thermal spray coated industry, optical glass, semicon and led industry, woodworking tool , cnc tool grinding and roll machining ,others ultral precision industry.

The company production and sales of products covered vitrified bond tools, resin bond tools, metal bond tools, electroplated diamond/cbn tools, vaccum brazed products, cvd diamond tools, polycrystalline diamond (pcd) tools, cubic boron nitride (cbn) tools.our objective is to meet all the customers’ needs and help every customer achieve maximum benefits.  more brings in revenue for you, you win, we win!

More SuperHard supplies the wheels for several application mainly:

1.Carbide round tools on cnc machines : flute grinding, gash grinding, end facing, clearance angle and cylindrical grinding .

2. Insert grinding for machines such as: agathon, wendt, haas, waida and ewag.

3.Woodworking saw blade and tools .

4.Hss tools

5.Cutting wheels

Products Range:

1. vitrified bond/resin bond/Metal bond/Electroplated diamond grinding wheel & other diamond tools
2. PCD milling tools, PCD turning tools, PCD drilling tools, PCD engraving tools, PCD/pcbn inserts, PCD/pcbn cutting tools, PCD/pcbn grooving tools, CBN inserts
3. PCD/TSP diamond, CVD diamond tools, large size synthetic diamond, Natural diamond tools, diamond abrasive tools
4. diamond grinding&cutting discs, diamond cutting blade, diamond cup wheel, diamond dressers
5. Roller cutting tools, PDC cutters, PDC drill bits& PDC core bits
6. PCD tool grinder & PCD grinding machine
