Introduction to resin diamond grinding wheel
The resin bond diamond wheels are mainly used for grinding tungsten carbide and non-metal materials. Various kinds of dimensions and shapes are available, such as flat shapes, cup shapes and dish shapes, etc.
Feature |
|
1:Name:diamond backgrinding wheel
|
3:Material: Diamond, CBN |
5:Line speed: 35~80 (M/S) |
6:Grit: 80#~5000# (D251-D1) |
7:Application Industry: Jewelry, Automobile, Aerospace, Oil drilling, Coal mining, Metal processing |
8:Certification: ISO 9001:2008 |
9:Diamond grit: #100, #150, #200, #300, #400, or upon your request |
10:Type: straight wheel, bowl-shaped wheel, cup-shaped wheel, dish- shaped wheel |
Product Feature |
Resin bond diamond grinding wheel model: |
Applications of back grinding wheels:

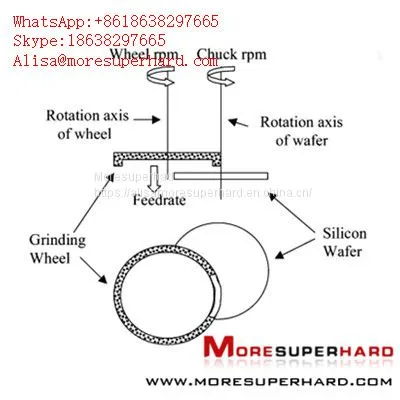

1：Back thinning, rough grinding and fine grinding of silicon wafer.
2：Workpiece processed include silicon wafer of discrete devices, integrated chips (IC) and virgin etc.
Advantages of back grinding wheels:
1：good Self-dressing ability
2：Long life and low prices
3：high heat conductivity
4：high wear resistance
5：low coefficient
Applicable grinding machine:
The back grinding wheels can be used for the Japanese ,German, American, Korean and other grinders . Such as Okamoto , Disco, Strasbaugh and others grinding machine.
The specification of diamond back grinding wheels:
Model |
Diameter (mm) |
thickness (mm) |
hole (mm) |
|
6A2 |
175 |
30, 35 |
76 |
200 |
35 |
76 |
|
350 |
45 |
127 |
|
|
6A2T |
195 |
22.5, 25 |
170 |
280 |
30 |
228.6 |
|
|
6A2T(three ellipses) |
350 |
35 |
235 |
209 |
22.5 |
158 |
Why choose our grinding wheel
|
Our product’s advantages: 1.High grinding efficiency |
2.Wonderful edge quality |
3.Long service life |
4.High polishing efficiency |
5.Large Exports |
6.Considerable after-sell service |
7.Amazing performance |
8.Various types and sizes available |
9.Direct Factory Manufacturer |
10.Backing/substrate material: Aluminum |
11.Abrasive layer: diamond |
12.Bond: vitrified |
13.Excellent cutting edges |
14.Reduced cycle times |
15.Custom Engineered |
If you have any questions, please contact us
WhatsApp:+8618638297665
Skype:18638297665
Alisa@moresuperhard.com
Tel:18638297665
URL:
