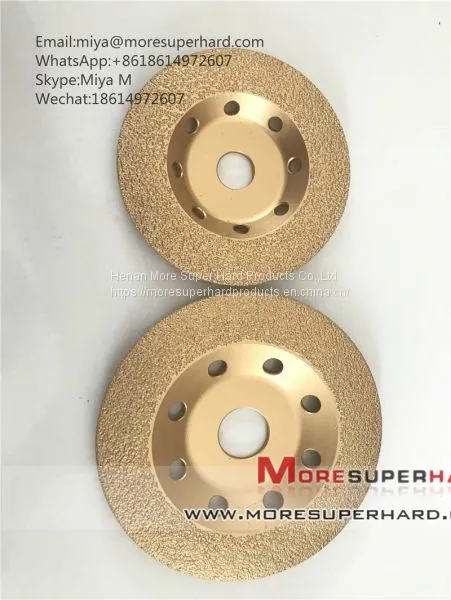

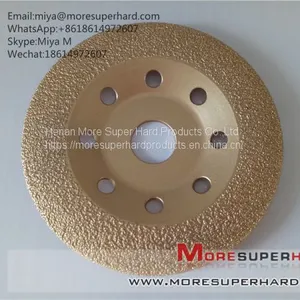

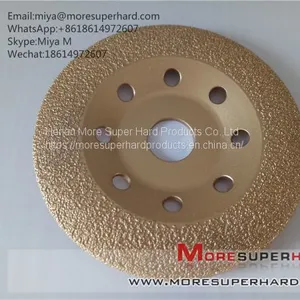

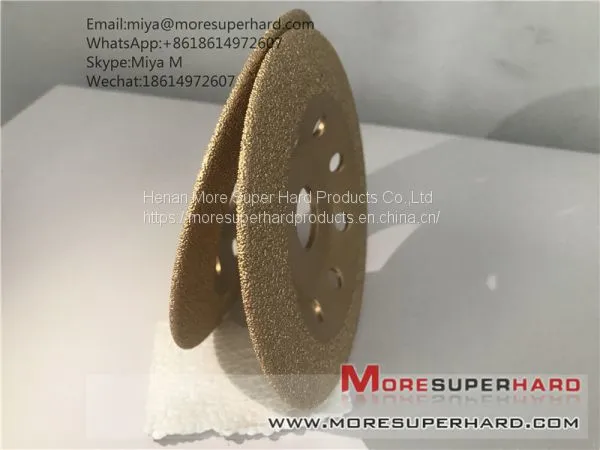

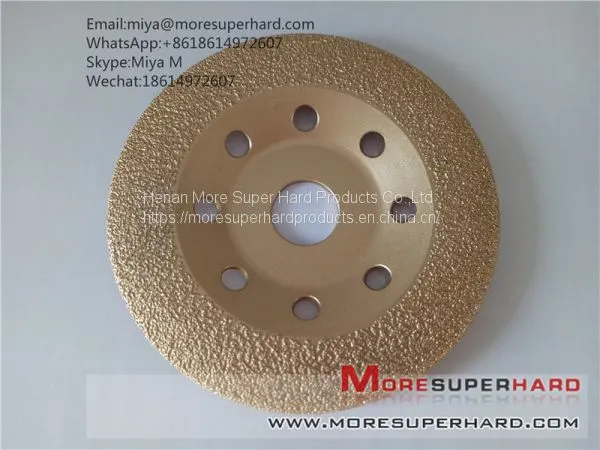

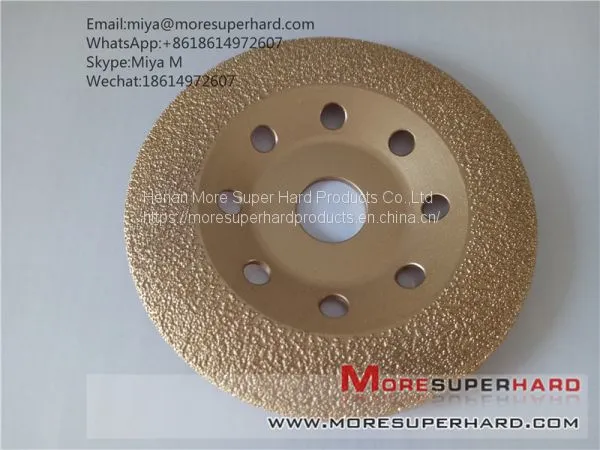

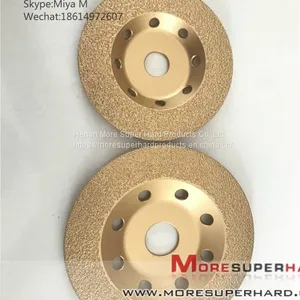

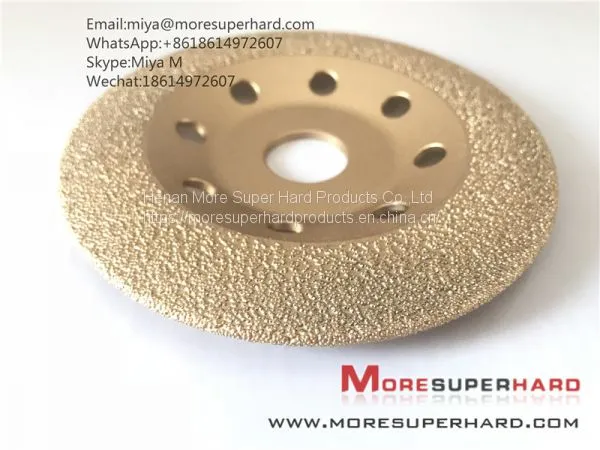

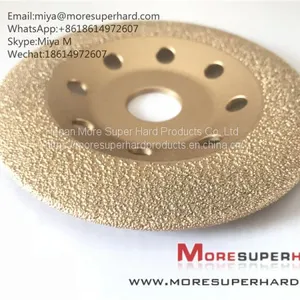

Diamond vacuum brazed grinding disc for grinding Marble, ceramic materials, fiber reinforced plastic ,silicon carbide and artificial stone
name: vacuum brazed diamond disc
Introduction:Our vacuum brazed diamond wheels are used on hand held grinder and used for grinding, weld cleanup, stock removal and beveling in a wide variety of industry include foundry, metal processing (weld removal and pipe beveling of all ferrous and non ferrous metals) ,auto parts, ship building , stone , ceramic, plastic processing ,and composite materials ,etc
Application: grinding marble, ceramic, FRP
Diamond vacuum brazed grinding disc for grinding Marble, ceramic materials, fiber reinforced plastic ,silicon carbide and artificial stone
Advantages of vacuum brazed diamond grinding disc:
* higher quality process than sintered or laser welded diamond wheel
* long life time. Up to 40 times longer life time than Resin grinding disc
* high efficiency .the efficiency is improved by 100% for grinding FRP slab,compare to resin bond wheel
* single layer of fully exposed diamond fused with nickel at high temperatures and sharp cutting
* no pollution, low noise ,never need dressing
Specifications of vacuum brazed diamond grinding disc:
Model |
D (mm) |
H (mm) |
T (mm) |
vacuum brazed diamond disc |
100 |
16 / 22.3 |
1.5 - 3 |
115 |
16 / 22.3 |
1.5 - 3 |
|
|
Grain Size: Rough 25/30, 30/35, 35/40, Finish 50/60 Others Size And Grit Can Be Customized According To Customers' Requirement. | |||
Tools |
Workpiece |
Lifetime |
Efficiency |
The Sintered Disc |
Marble Table-board |
5000cm2 |
26s |
|
MDC Vacuum Brazed Grinding Disc |
Marble Table-board |
15000cm2 |
20s |
Resin Grinding Disc |
FRP Slab |
7000m2 |
40s |
|
MDC Vacuum Brazed Grinding Disc |
FRP Slab |
m2 |
20s |
|
★The Lifetime of MDC Vacuum Brazed Diamond Grinding Disc is as long as Sintered Disc ,and the efficiency is improved by 30% for grinding Marble Table-board. ★The Lifetime of MDC Vacuum Brazed Diamond Grinding Disc is 40 times longer than resin bond grinding disc, and the efficiency is improved by 100% for grinding FRP slab. |
Diameter(Inch/mm) |
Segment Height(mm) |
Grit Size(#) |
Connection |
Bond |
100 |
2.0-5.0 |
30#-40#,50-60# |
7/8“-5/8"/M14/5/8"-11 |
Diamond |
115 |
2.0-5.0 |
30#-40#,50-60# |
7/8“-5/8"/M14/5/8"-11 |
Diamond |
125 |
2.0-5.0 |
30#-40#,50-60# |
7/8“-5/8"/M14/5/8"-11 |
Diamond |
150 |
2.0-5.0 |
30#-40#,50-60# |
7/8“-5/8"/M14/5/8"-11 |
Diamond |
100 |
2.0-5.0 |
30#-40#,50-60# |
7/8“-5/8"/M14/5/8"-11 |
Hard Metal |
115 |
2.0-5.0 |
30#-40#,50-60# |
7/8“-5/8"/M14/5/8"-11 |
Hard Metal |
125 |
2.0-5.0 |
30#-40#,50-60# |
7/8“-5/8"/M14/5/8"-11 |
Hard Metal |
150 |
2.0-5.0 |
30#-40#,50-60# |
7/8“-5/8"/M14/5/8"-11 |
Hard Metal |
If you need any products, do not hesitate to contact
Email:miya@moresuperhard.com
WhatsApp:+8618614972607
Skype:Miya M
Wechat:18614972607
QQ:1987680230
we also have a series of brazing products, welcom to your consult and choose.
