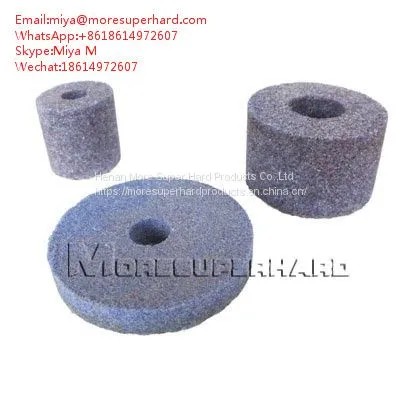

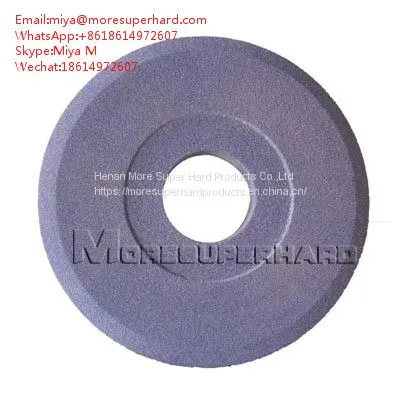

Name: SG grinding wheel
Brief introduction: Grinding wheel made of ceramic abrasive with has a higher durability and longer life, which is 5-10 times than the grinding wheel made of common corundum.
Application: grinding roller bearings, cylinders,
Details
The introcution of Ceramic abrasives :
Ceramic abrasives prepared by sol-gel method is a kind of sintered abrasive , grain size is tiny, only 100- 500nm. SG abrasive is high purity, ceramic aluminum oxide abrasive with a submicron crystalline structure deprived from a seeded gel sintering process.
The parameters of Ceramic abrasives :
|
Main chemical composition (typical value) |
Physical properties (grain size 60) |
The offerable grain size |
code |
|
Al2O3 (99.22%) Na2O(0.08%) |
Density : 3.90(g/cm³） Bulk density : 1.82(g/cm³） Crystal size : 0.15 (μm） |
24-180# |
s |
Applications of SG grinding wheel :
* Precision grinding for unhardened and hardened steels,such as cast iron,carbon steels, alloy steels, and tool steels, etc.
* Internal grinding roller bearings, cylinders, compressor parts,gear parts, hydraulic and pneumatic cylinders etc.
* Grinding the crankshaft and camshaft of the engine and transmission of the car ; worm gear grinding.
Advantages of SG grinding wheel:
* Grinding wheel made of ceramic abrasive with has a higher durability and longer life, which is 5-10 times than the grinding wheel made of common corundum.
* Sharp grains , good cutting ability, and high grinding efficiency .
* Good self- sharp ability, microcrystalline structure Benefits .
* Very good cutting capability, sharp grains .
* High removal rate extended wheel life .
FAQ:
Q1. Can I negotiate the price
A: yes, you can. We will give some discount according to your quantity.
Q2. How can know my order’s production progress?
A: we will keep closely track the production and shipment progress. And we will inform you with the newest progress about producing and shipping.
Q3. How can you ensure the quality of your products?
A: We have pass the ISO 9001:2008. If there is any problem with our products, please send me the detailed picture of the problem, once we verify it, we will change the products for you within 30 days.
Q4: When I contact you is suitable?
You can contact Us at any time, we promise that we will reply you within 12 hours.
A:So, please contact me for more information about our product, service and related issues.
Our products Range:
1. vitrified bond/resin bond/Metal bond/Electroplated diamond grinding wheel & other diamond tools
2. PCD milling tools, pcd turning tools, pcd drilling tools, pcd engraving tools,pcd/pcbn inserts, pcd/pcbn cutting tools, pcd/pcbn grooving tools,CBN inserts
3. PCD/TSP diamond, CVD diamond tools, Natural diamond tools, diamond abrasive tools
4. diamond grinding&cutting discs, diamond cutting blade, diamond cup wheel, diamond dressers
5. Roller cutting tools, PDC cutters, pdc drill bits& pdc core bits
6. PCD tool grinder & pcd grinding machine
