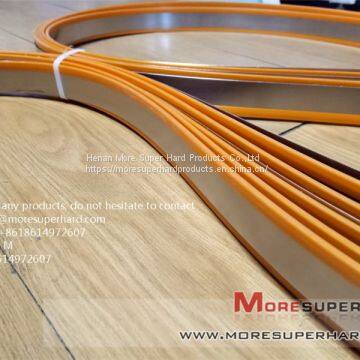

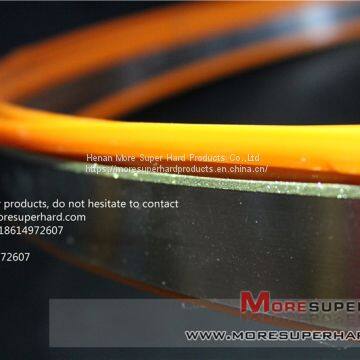

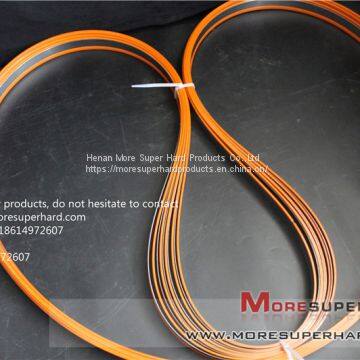

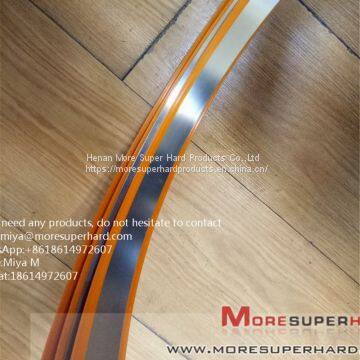

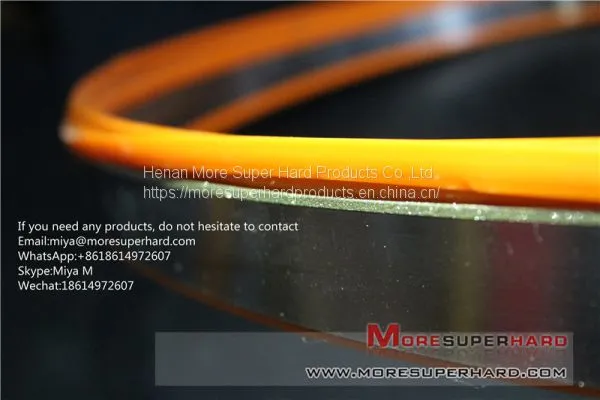

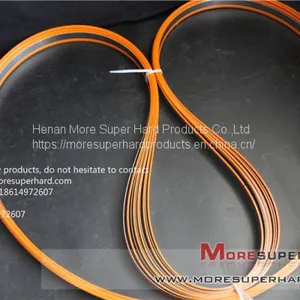

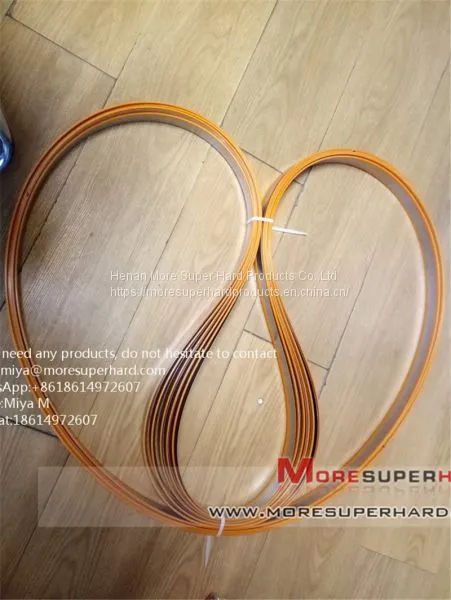

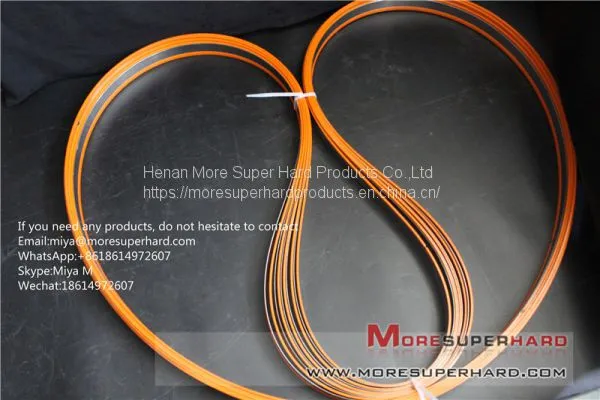

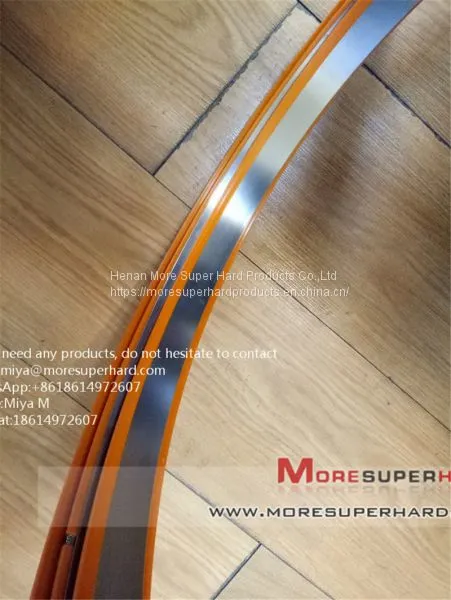

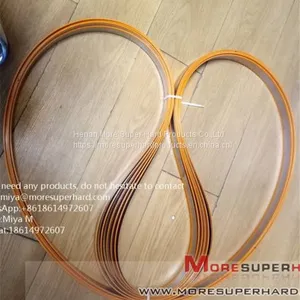

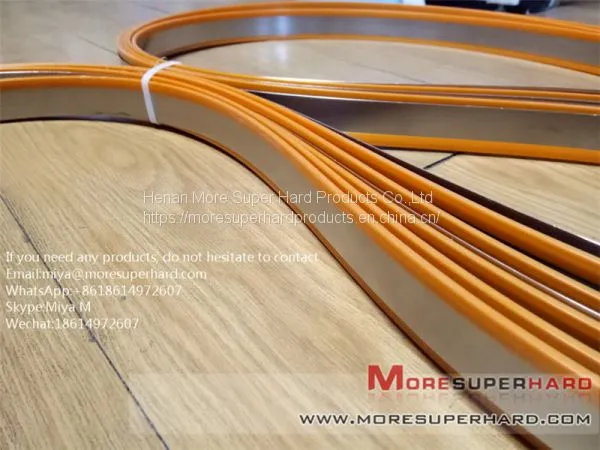

Name：Electroplated Diamond Band Saw Blades for Monocrystalline Silicon Quartz Glass
Brief Introduction ：The Electroplated Diamond Band Saw Blades Are Used For Cutting Super Hard Material And Brittle Materials .
Edge Shapes: Continuous, Segmented ( Half Moon), S
Application: Monocrystalline Silicon, Quartz Glass
Details
Introduction：The Diamond Blades Are Available In Continuous And Gulleted Edges. In The Processing Of The Electroplated Diamond Band Saw,The Heating Temperature Of The Diamond Is Less Than 100ºC,So The Damage To The Diamond Is Very Small,Then The Electroplated Diamond Band Saw Can Also Have The Good Long Life Time.
Application Of Diamond Band Saw Blade
Cutting Super Hard Material And Brittle Material ,Such As Mono Crystalline Silicon,Polycrystalline Silicon In Solar Energy, Semiconductor And Sapphire, Ruby In LED Field, Quartz Glass, Silicon Ingot, Sapphire Ingot And So On.
The Specifications Of Diamond Band Saw Blades
Length(Mm) | Width(Mm) | Thickness(Mm) |
|
3230 | 40 | 0.7 | |
3440 | 40 | 0.7 | |
3530 | 40 | 0.7 | |
3700 | 80 | 0.6 , 0.7 | |
4320 | 60 | 0.5 , 0.6 , 0.7 | |
5400 | 60 | 0.5 , 0.6 , 0.7 | |
6095 | 40 | 0.7 | |
Other Specifications Can Be Made According To Customers Requirements | |||
Edge Shapes Of Diamond Band Saw Blades
| Continuous A Variety Of Band Core Width Available Continuous Rim Design Reduces The Saw Marks On The Materials Suitable For Dry Cutting Hard Materials , Such As Glass , Ceramic , Carbon Materials And So On. |
| Segmented ( Half Moon) Cutting Hard And Brittle Materials Superior Tool Life And Cutting Ability In Silicon Processing Allows Greater Flexibility In Customizing Blade Edge Width And Pitch |
| Serrated Wide Width Band Saw Blades Possible Cutting Difficult To Cut Materials Reduced -Loading Saw Tooth Design Encourages Chip Evacuation |
Please don't hesitate to contact me if you have any needs:miya AT
Our company also has other electroplating series products, welcome to consult and choose
