Name: PCD Cutting Tool Blanks
Brief Introduction ：More SuperHard PCD Cutting Tool Blanks In The Size Of 5μm、10μm And 25μm Can Be Used In Super-Fine Processing And Fine.
Type: Triangle, Cylindrical, Square, Flake, Etc
Details
More SuperHard PCD Cutting Tool Blanks In The Size Of 5μm、10μm And 25μm Can Be Used In Super-Fine Processing And Fine. They Are Applicable To The Processing Of Non-Metal Materials As Wood, Ceramics,Intensified Planks And Non-Farrous Material As Copper And Aluminum. We Can Supply All Kinds Of PCD Cutting Tool Blanks That Diameter Can Reach 58mm .
Model |
Product No |
Angle (°） |
Diameter (Mm) |
Thickness (Mm) |
|
MoreD30 |
360 |
30 |
1.6, 2.0, 3.2 |
MoreD42 |
360 |
42 |
1.6, 2.0, 3.2 |
|
MoreD48 |
360 |
48 |
1.6, 2.0, 3.2 |
|
MoreD51 |
360 |
51 |
1.6, 2.0, 3.2 |
|
MoreD58 |
360 |
58 |
1.6, 2.0, 3.2 |
|
Note:The Products Can Be Manufactured Per Customer Request As Non-Standard Shapes Such As Rectangular, Square, Triangle, Rhombus, Sector And So On. | ||||
PCD Cutting Tool Blanks Application Recommendation
Grades |
Characters |
Applications |
Advantages |
W5 Fine Grain Size |
* Average Grain Size: 5μm *High Diamond Content Over90% *Laser Cutting ,Wire EDM Cutting |
Aluminum, Brass/Copper,Precious Metals, Wood Composites,Plastic |
Excellent Surface Finish |
W10 Medium Grain Size |
*Average Grain Size: 10μm *High Diamond Content Over 90% *Laser Cutting ,Wire EDM Cutting |
＜14% Si/Al Alloys, Copper Alloys, Graphite And Graphite Composites, Green Ceramics And Carbides |
Excellent Resistance, Good Surface Finish |
W25 Coarse Grain Size |
*Average Grain Size: 25μm *High Diamond Contentover 90% *Laser Cutting ,Wire EDM Cutting |
＞14% Si/Al Alloys, Metal Matrix Composites, Bi-Metals(Aluminum/Castiron), Sintered Ceramics And Carbides |
Long Life, Extremely High Wear Resistance |
Application Cases Of PCD Cutting Tool Blanks:
* 58mm Diameter PCD Wafers Have Sent To American Clients
Product Name |
PCD Wafer, Fine Grade PCD |
Size |
58 Mm Diameter, 2 Mm Thickness PCD Blanks |
Applicable Workpiece |
Woodworking Tools ( Brazing The PCD To Tool Body Then Wire EDM Again For Final Profile) |
|

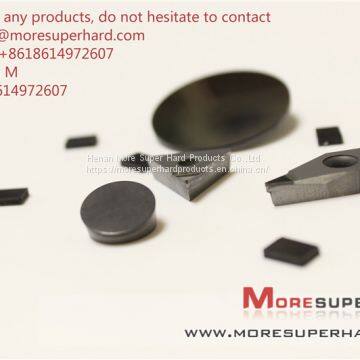

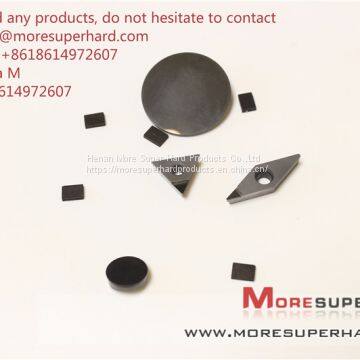

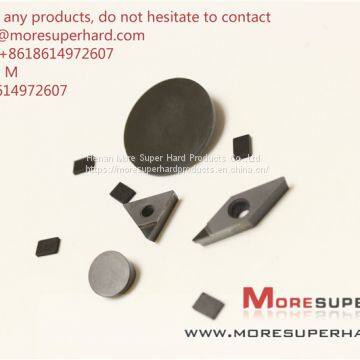

Product Photo Show
| |
Advantages:
1. High hardness, abrasion resistance and impact resistance
2. High speed, good surface finish, long life and high efficiency
3. Cutter layout is force balanced to drill a precise round hole and reduce bit whirl
4. Gauge pads have tungsten carbide inserts for maximum wear resistance
5. The diamond layer with thickness over 1 mm increases abrasion resistance of PDC cutter
Please don't hesitate to contact me if you have any needs:miya AT
Our company also produces a series of diamond and CBN tools, welcome to consult and choose at any time
