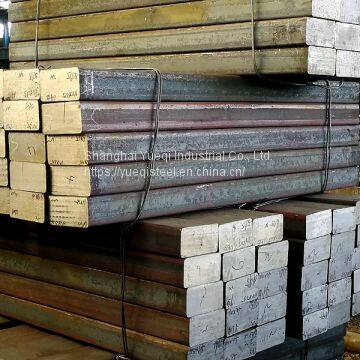

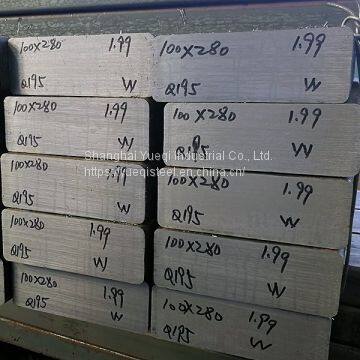

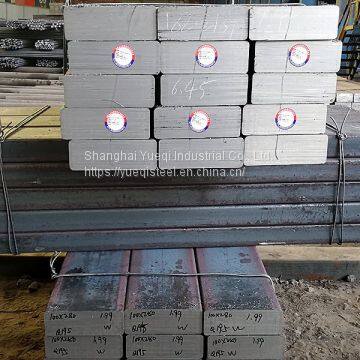

Q195 highly conductive cathode steel rod for Electrolytic aluminium factory using
Brand |
C |
Si |
Mn |
S |
P |
Q195 |
0.06~0.12 |
≤0.30 |
0.25~0.50 |
≤0.040 |
≤0.030 |
The flat steel thickness and its allowable deviation shall comply with the requirements of Table 1.
Table 1 Thickness tolerance mm
Thickness |
Tolerance |
≥50~80 |
+2.0 -2.5 |
>80~120 |
+2.0 -2.0 |
>120~150 |
+2.5 -2.5 |
The width of the flat steel and its allowable deviation shall comply with the provisions of Table 2.
Table 2 width tolerance mm
Width |
Tolerance |
≥50~100 |
+0.0 -2.0 |
>100~200 |
+0.0 -2.5 |
>200~300 |
+0.0 -3.0 |
Flat steel length and its allowable deviation
The cathode flat steel is delivered according to a fixed length, the length of the fixed length shall be specified in the contract, and its allowable length deviation is 0 to +15 mm.
The bending of the length of the cathode flat bar shall comply with the requirements of Table 3.
Table 3 Curvature mm
Length direction |
Degree of roughness |
Distortion |
Thickness |
≤2mm/m |
≤1.5mm/m |
Width |
≤2mm/m |
≤1.5mm/m |
Cathode flat steel is delivered according to actual weight. After negotiations between supply and demand sides, they can also be delivered according to theoretical weight. Flat steel measurements are calculated according to nominal dimensions and the specific gravity is calculated at 7.85t/m3.
Mechanical properties
The mechanical properties do not serve as delivery conditions for the cathode flat steel.
