Home > Industrial Equipment & Components > Valve > Ball Valve > ANSI 150 / DIN 3352 / BS5163 Gate Valves, Flanged Ends / Socket Ends / Threaded Ends

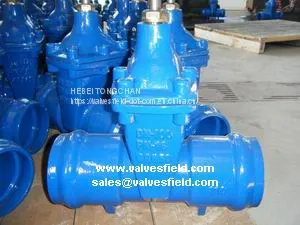

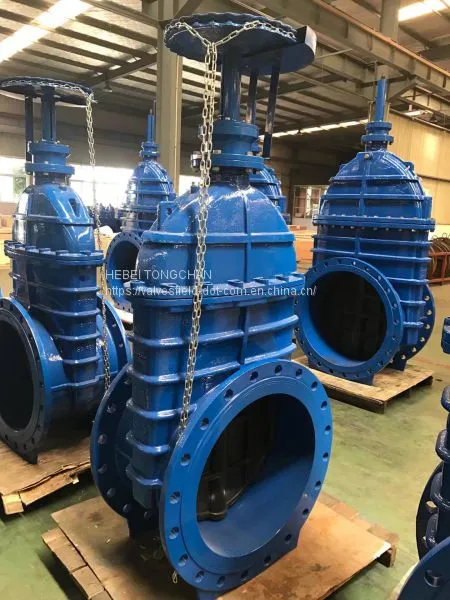

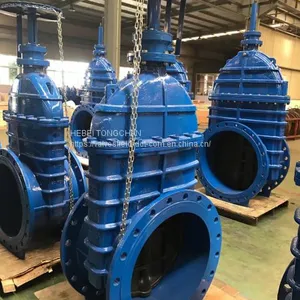

ANSI 150 / DIN 3352 / BS5163 Gate Valves, Flanged Ends / Socket Ends / Threaded Ends

Hebei Tongchan

ANSI 150 / DIN 3352 / BS5163 Gate Valves, Flanged Ends / Socket Ends / Threaded Ends thumbnail-2

ANSI 150 / DIN 3352 / BS5163 Gate Valves, Flanged Ends / Socket Ends / Threaded Ends thumbnail-3

ANSI 150 / DIN 3352 / BS5163 Gate Valves, Flanged Ends / Socket Ends / Threaded Ends thumbnail-4

ANSI 150 / DIN 3352 / BS5163 Gate Valves, Flanged Ends / Socket Ends / Threaded Ends thumbnail-5

ANSI 150 / DIN 3352 / BS5163 Gate Valves, Flanged Ends / Socket Ends / Threaded Ends photo-1

ANSI 150 / DIN 3352 / BS5163 Gate Valves, Flanged Ends / Socket Ends / Threaded Ends photo-2

ANSI 150 / DIN 3352 / BS5163 Gate Valves, Flanged Ends / Socket Ends / Threaded Ends photo-3

ANSI 150 / DIN 3352 / BS5163 Gate Valves, Flanged Ends / Socket Ends / Threaded Ends photo-4

ANSI 150 / DIN 3352 / BS5163 Gate Valves, Flanged Ends / Socket Ends / Threaded Ends photo-5

US$ 10 - 999 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

1974

Annual Export Value:

Above US$100 Million

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Gate valve (HB-12) Size: 1.5 to 24 inches Nominal pressure: PN1.0/1.6MPa Face to face dimension: BS5163: 1986 Flange drilled is according to BS4504 Test standard: API 598 Material list: Body & Bonnet: Cast iron / Ductile iron Wedge: Cast iron / Ductile iron with NBR / EPDM Stem: Stainless steel / Brass Bolt & Nut: Stainless steel / Carbon Steel with Zinc plated Standard: BS 5163 Optional: DIN 3352-F4 / F5, AWWA / ANSI Gate valve (HB-02B) Size: 1.5 to 24 inches Nominal pressure: 125 PSI / 150 PSI Face to face dimension: ANSI 16.10 Flange drilled is according to ANSI B16.1 / ANSI B16.5 Test standard: API 598 Material list: Body & Bonnet: Cast iron / Ductile iron Wedge: Cast iron / Ductile iron Body seat ring: Brass / Bronze / Stainless steel Wedge seat ring: Brass / Bronze / Stainless steel Stem: Stainless steel / Brass Bolt & Nut: Stainless steel / Carbon Steel with Zinc plated Standard: AWWA / ANSI Optional: DIN 3352-F4 / F5, BS 5163 Gate valve (HB-01A) Size: 1.5 to 16 inches Nominal pressure: 125 PSI / 150 PSI Face to face dimension: ANSI 16.10 Flange drilled is according to ANSI B16.1 / ANSI B16.5 Test standard: API 598 Material list: Body & Bonnet: Cast iron / Ductile iron Wedge: Cast iron / Ductile iron with NBR / EPDM Stem: Stainless steel / Brass Bolt & Nut: Stainless steel / Carbon Steel with Zinc plated Standard: AWWA / ANSI Optional: DIN 3352-F4 / F5, BS 5163 Gate valve (HB-02A) Size: 1.5 to 16 inches Nominal pressure: 125 PSI / 150 PSI Face to face dimension: ANSI 16.10 Flange drilled is according to ANSI B16.1 / ANSI B16.5 Test standard: API 598 Material list: Body & Bonnet: Cast iron / Ductile iron Wedge: Cast iron / Ductile iron with NBR / EPDM Stem: Stainless steel

For more info, pls contact sales@valvesfield.com (Ms. Lu Haihua)

Product Tags: gate valve , DIN3352 F4 , resilient seat
