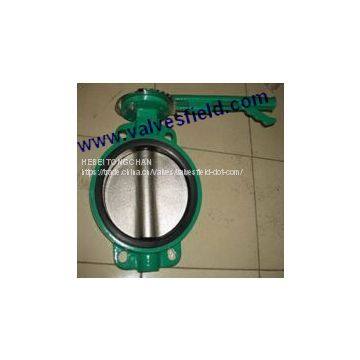

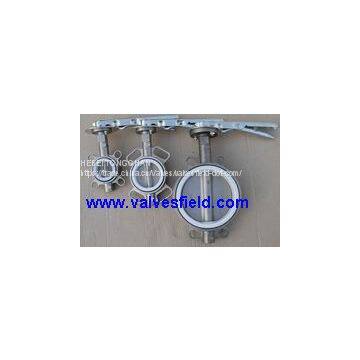

Butterfly Valve, Wafer Type or Lug Type or Double Flanged Type
Lever or Gear Operator, Resilient Seated, Centerline design
Design to comply with MSS SP-67, BS5155 and API 609
Compatible with ANSI, DIN, BS, JIS flanges
Size range: handles (1.5 to 12), manual gear operators (1.5 to 48)
Pressure: from PN0.6MPa to PN1.6MPa
Temperature Ratings: from -35 - 135
Connection: Wafer type, Lug type, U-section wafer type
Materials List:
Body materials: Cast Iron, Ductile Iron
Disc: Ductile Iron (with Nickel plated or Nylon Coated), SS 304, 304L, 316, 316L, AL-Bronze
Seat: NBR, EPDM, Neoprene, PTFE, Viton
Shaft: , SS316, SS410, SS416
Pin: SS316, SS410, SS416
"O" Ring: NBR, EPDM, Neoprene, Viton
Bushing: PTFE, Nylon, Lubricated Bronze
For more info, pls contact export@valvesfield.com (Ms. Lu Haihua)
