Gate Valves, Check Valves, Global Valves, Y-Strainers

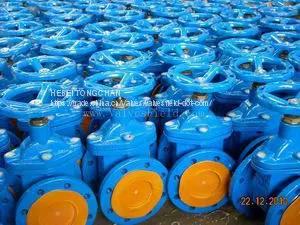

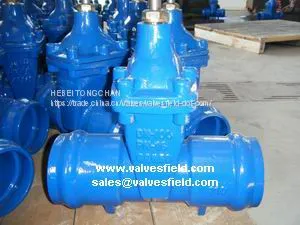

Gate valve (HB-12) Size: 1.5 to 24 inches Nominal pressure: PN1.0/1.6MPa Face to face dimension: BS5163: 1986 Flange drilled is according to BS4504 Test standard: API 598 Material list: Body & Bonnet: Cast iron / Ductile iron Wedge: Cast iron / Ductile iron with NBR / EPDM Stem: Stainless steel / Brass Bolt & Nut: Stainless steel / Carbon Steel with Zinc plated Standard: BS 5163 Optional: DIN 3352-F4 / F5, AWWA / ANSI Gate valve (HB-02B) Size: 1.5 to 24 inches Nominal pressure: 125 PSI / 150 PSI Face to face dimension: ANSI 16.10 Flange drilled is according to ANSI B16.1 / ANSI B16.5 Test standard: API 598 Material list: Body & Bonnet: Cast iron / Ductile iron Wedge: Cast iron / Ductile iron Body seat ring: Brass / Bronze / Stainless steel Wedge seat ring: Brass / Bronze / Stainless steel Stem: Stainless steel / Brass Bolt & Nut: Stainless steel / Carbon Steel with Zinc plated Standard: AWWA / ANSI Optional: DIN 3352-F4 / F5, BS 5163 Gate valve (HB-01A) Size: 1.5 to 16 inches Nominal pressure: 125 PSI / 150 PSI Face to face dimension: ANSI 16.10 Flange drilled is according to ANSI B16.1 / ANSI B16.5 Test standard: API 598 Material list: Body & Bonnet: Cast iron / Ductile iron Wedge: Cast iron / Ductile iron with NBR / EPDM Stem: Stainless steel / Brass Bolt & Nut: Stainless steel / Carbon Steel with Zinc plated Standard: AWWA / ANSI Optional: DIN 3352-F4 / F5, BS 5163 Gate valve (HB-02A) Size: 1.5 to 16 inches Nominal pressure: 125 PSI / 150 PSI Face to face dimension: ANSI 16.10 Flange drilled is according to ANSI B16.1 / ANSI B16.5 Test standard: API 598 Material list: Body & Bonnet: Cast iron / Ductile iron Wedge: Cast iron / Ductile iron with NBR / EPDM Stem: Stainless steel

For more info, pls contact export@valvesfield.com (Ms. Lu Haihua)
