Help CenterGDHL-400 HV Switch 400A Loop Resistance Tester
Related Products
-

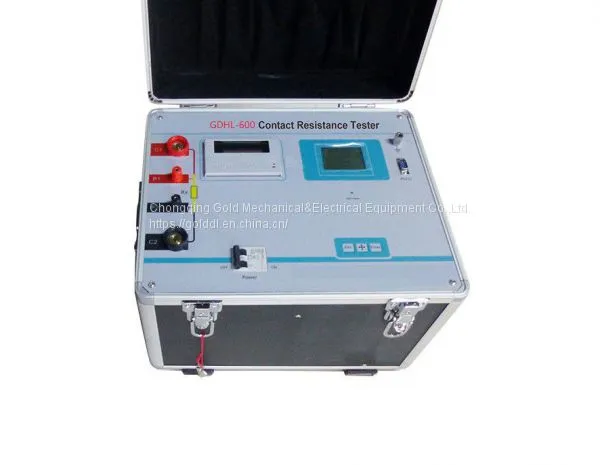

GDHL-600 Circuit Breaker 600A Loop Resistance TesterUS$ 2 - 6MOQ: 1 Set -
GDZH-2H SF6 Gas Purity,decompensation and Micro-water TesterUS$ 1 - 7MOQ: 1 Set
-
GDZH-2H Sf6 Gas Multifunctional Test Set, Sf6 Decomposition and Purity TesterUS$ 1 - 7MOQ: 1 Set
-
GDJL-H High Sensitive SF6 Gas Leak DetectorUS$ 1 - 7MOQ: 1 Set
-
GDJL-H SF6 Gas Leak Detector for SF6 Circuit Breaker and GISUS$ 1 - 7MOQ: 1 Set
* Contact resistance tester output DC 400A/300A/200A/100A current to test the contact resistance of circuit breaker or high current cable contacts.
* It is designed according to IEC62271.
* The main application of the tester is measurement of circuit breaker contact resistance.
* All the test results of the tester could be print by the micro-printer which is integrated in the tester.
* Also all the test results saved in the tester could be upload to PC computer and then convert to WORD document.
* Rapid test
* Result print
* Upload data to PC
1. Measuring range: 0-1999.9 μΩ Resolution:0.1 μΩ
2. Measuring current: DC 100A/200A/400A for different selection
3. Measuring precision:0.5 %RGD+0.05%FS
4. Display mode: LCD
5. Save no more than 100 groups of data
6. RS232 computer interface
7. Rated power supply:AC220V
8. Size: 340 × 280 × 210mm3
9. Environment temperature:-10 ℃~+40 ℃ Relative humidity
Our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument since 2009s’.
We have developed sales channels in many countries such as Malaysia,India,Germany,USA,Mexico,Saudi Arabia,South Africa and other countries worldwide. and we have gained great advantage and high reputation in international market.
We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity.Client,quality and service are our supreme target.
Contact resistance tester output DC 100A current to test the contact resistance of circuit breaker or high current cable contacts.
According to IEC62271,Contact resistance tester output DC 200A/100A current to test the contact resistance of circuit breaker or high current cable contacts.
It is designed according to IEC62271.Main application is to test the contact resistance of circuit breaker or high current cable contacts.
•Inquiry will be replied within 24 hours.
•Welcome to visit our factory.
•Technical datas and operation manual sent for evaluation.
After-sale Service:
•Training how to instal the machine, training how to use the machine at our factory;
•Engineers available to service machinery overseas at customers' cost;
