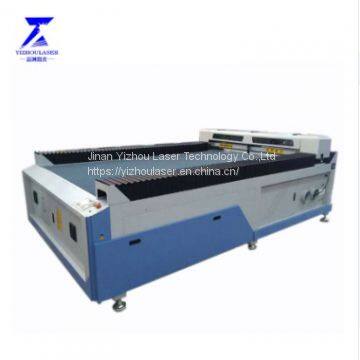

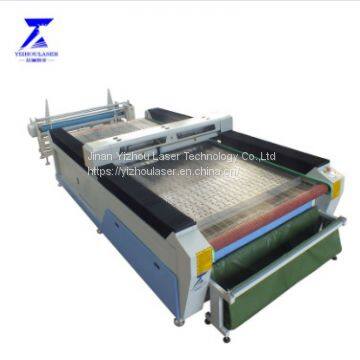

Fabric Laser Cutting Engraving Machine

Name: Fabric Laser Cutting Engraving Machine
Brand: YIZHOU
Availability: InStock

FOB Price

US$ 6000 - 13000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YIZHOU	Place of Origin	China
Model Number	Y-1630	Certification	CE, ISO
After-sales Service Provided	Engineers available to service machinery overseas	Condition	New
Graphic Format Supported	AI, BMP, DST, DXF	Control Software	RUIDA
Cooling Mode	Water Cooling	CNC or Not	Yes
Cutting Speed	0-40000mm/min	Cutting Area	1600*3000mm
Cutting Thickness	20mm	Applicable Material	Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Laser Type	CO2

Model	YZ1630
Working size	1600*3000mm
Price	FOB QINGDAO
Max.cutting thickness	30mm
Characteristic	Computer operation,data transmission fast
Cutting speed	0-900mm/s
Motor and driver	digital servo motor and driver
Laser Power	150W
Laser lens	II-VI
Air fan	750W2 550W1
Material fixing method	Intelligent divisional vacuum absorption
Machine resolution	0.025mm
Software resolution	0.025mm
Transmission interface	RJ45 Ethernet port
Air pump	0.8Mpa non-voice oil compressor
Memory	512MB
Software program	HP-GL and GP-GL drive language
HMI	Resistive touch screen
Voltage/ Frequency	AC220V±22V\50±1Hz
Support format	BMP,AI,PLT,DST,DXF
Working Temperature	0°C-45°C
Packing size	2.23.51.4m
Weight	1500KGS
Package	Standard wooden case for export
