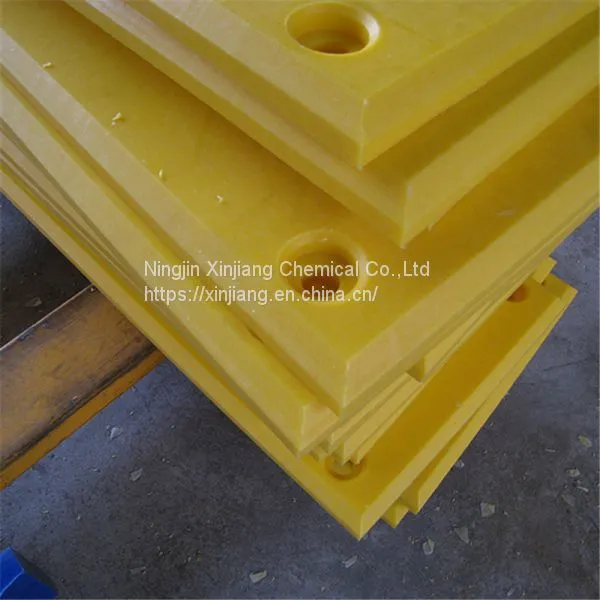

Uhmwpe Marine Fender Strip

Name: Uhmwpe Marine Fender Strip
Brand: xinjiang
SKU: 159011575
Availability: InStock

US$ 2.5 - 3.1 MOQ: 1 Kilogram

Key Specifications

Brand Name:

xinjiang

Place of Origin:

China

Model Number:

XJ01HG

Ningjin Xinjiang Chemical Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Brand Name xinjiang

Place of Origin China

Model Number XJ01HG

Product Description

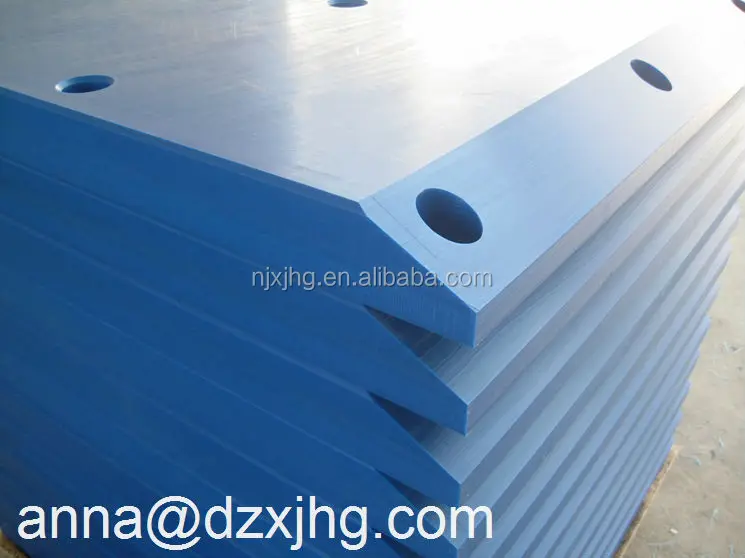

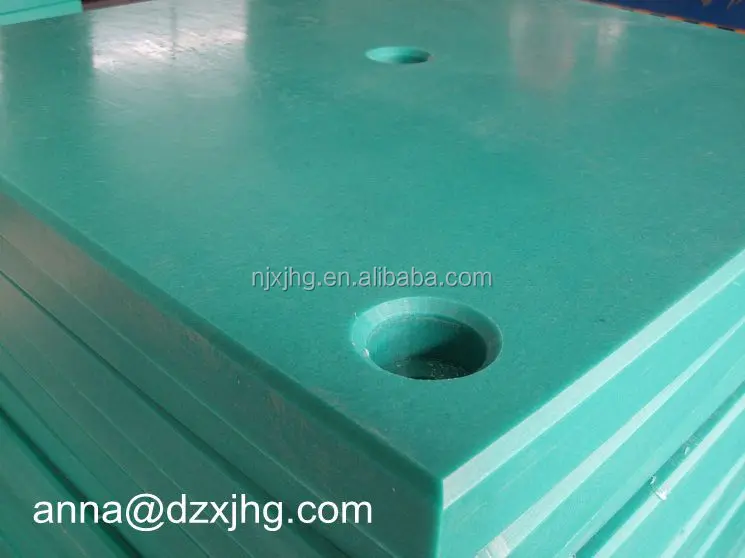

High quality first-class uhmwpe quay fender sheet/board

Because of the high impact resistance performance, UHMWPE pads instead of the traditional

steel are widely used in ports and docks.

uhmw-pe boat fender properties

1	High impact resistance and mechanical strength
2	Resistant to many solvents
3	Excellent chemical and corrosion resistance
4	Very high damping properties
5	Temperature resistance from -200C to +80C
6	Minimum water absorption (0.01%)
7	Extremely low co-efficient of friction
8	Light weight, 1/7 of steel, 1/3 of aluminum

UHMWPE applications

Site	Application

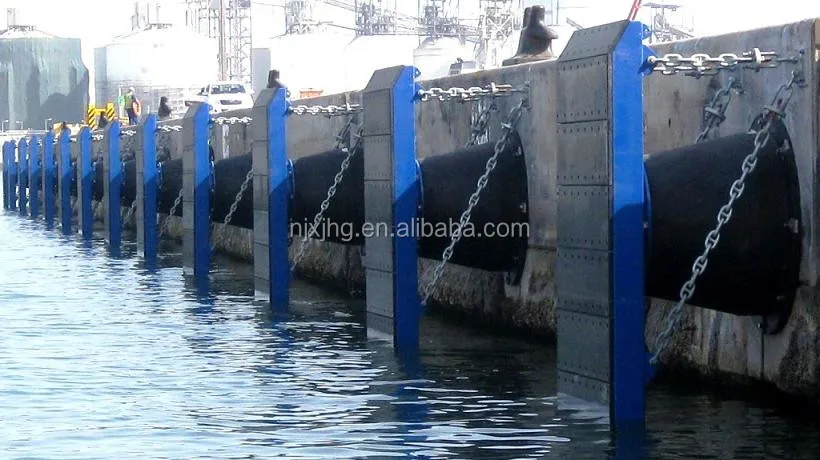

Harbour construction	Individual profiles on quay walls Wear pads to cover wood and rubber
Truck docks	Fenders for dock plate protection
Dredges	Slide wall fenders to protect dredge from barges.
Boats	Rubbing strips Low friction bushings
Pilings	Fenders Wear plates and slides
Floating docks	Wear plates where dock meets pillage Bushings for pivots Fenders Slide

Dimensions of UHMWPE sheet / rod

Shape	Length/mm	Width/mm	Thickness/mm
Sheet	3800	1400	10-300
	6200	1250	10-100
	6200	1100	10-100
	6200	1080	10-100
	2050	1260	10-100
	3720	1240	10-100
	1000	4080	10-100
	400	1500	10-100
Uhmwpe Rod	Dia:10-300mm Length:1000mm/piece,or as your requirement Color: white,black,red,or as your requirement

Packaging & Shipping

Packing	Plastic Film, Pallet, Wooden Box, Carton, etc.
Shipping	International Express (DHL, UPS, FEDEX, EMS, etc.), Ocean Transport, Air Transport

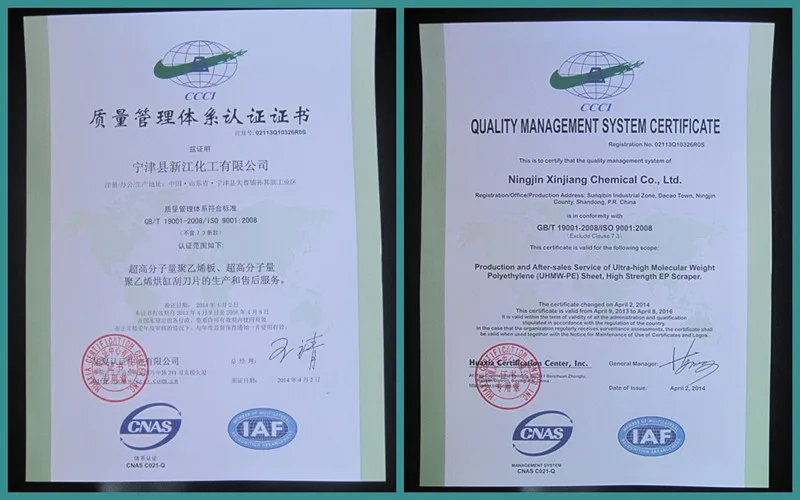

Quality Certificate

ISO Registration NO.:02113Q10326R0S

Technical data

Properties	unit	Result
Specifica Gravity	g/cm³	0.95
Max Continuous Operating Temp:	℃	80
Max Short Term Operating Temp(3~4hours):	℃	130
Tensile Strength at Yield:	Mpa	23.3
Tensile Strain at Yield	%	21
Tensile Strength	MPa	35.2
Elongation at Break	%	350
Hardness Rockwell:	-	M61
Dielectric Strength:	KV/mm	40
Surface Resistivity:	Ohms	>1014
Impact Resistance Charpy Unnotched:	KJ/m2	No Break
Impact Resistance Charpy Notched:	KJ/m2	>100
