extruded white UHMWPE rods polyethylene plastic rod uhmw pe solid round rod
UHMWPE Properties:
| Excellent impact resistance |
| High mechanical strength |
| Resistant to many solvents |
| Excellent chemical and corrosion resistance |
| Very high damping properties |
| Temperature resistance from -200C to +80C |
| Minimum water absorption (0.01%) |
| Extremely low co-efficient of friction |
| Self lubricating |
| 7 times lighter than steel |
| 3 times lighter than aluminum |
UHMWPE Application Areas:
1. Textile Industry: |
2. Chemical Industry: |
3. Food Processing Industry: |
4. Paper Industry: |
5. Material Handling: |
6. Farm Implement |
7. Mining & Metals Processing Industries: |
8. Transportation: |
9. Consumer Products: |
10. Waste Water Treatment |
Our factory produce white uhmwpe sheet and rod size:
Shape |
Length/mm |
Width/mm |
Thickness/mm |
|
Sheet
|
3800 |
1400 |
10-300 |
6200 |
1250 |
10-100 |
|
6200 |
1100 |
10-100 |
|
6200 |
1080 |
10-100 |
|
2050 |
1260 |
10-100 |
|
3720 |
1240 |
10-100 |
|
1000 |
4080 |
10-100 |
|
400 |
1500 |
10-100 |
|
Uhmwpe Rod |
Dia:10-300mm Length:1000mm/piece,or as your requirement Color: white,black,red,or as your requirement |
||

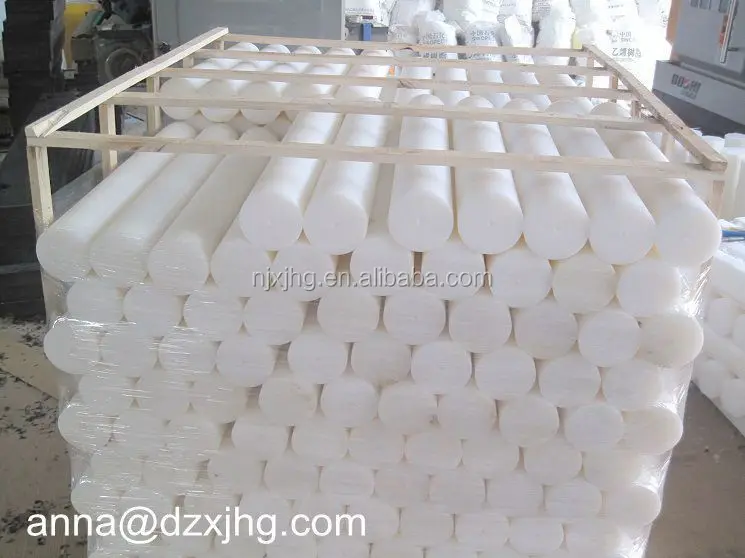

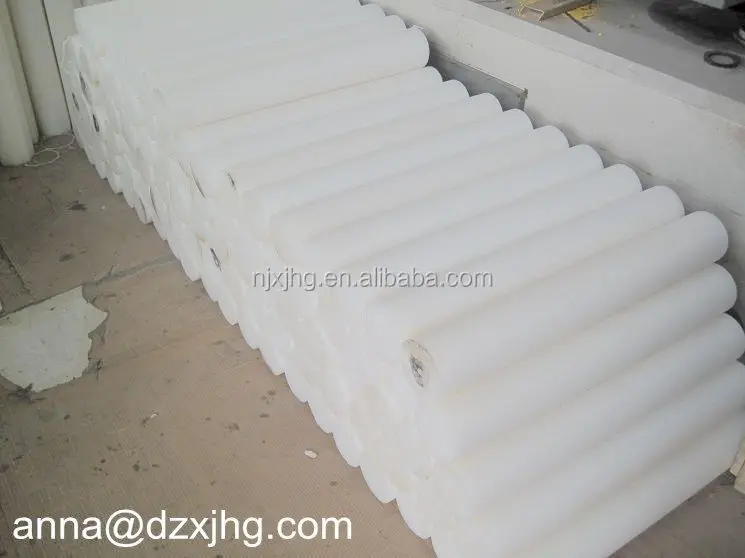

extruded white UHMWPE rods polyethylene plastic rod uhmw pe solid round rod pics:

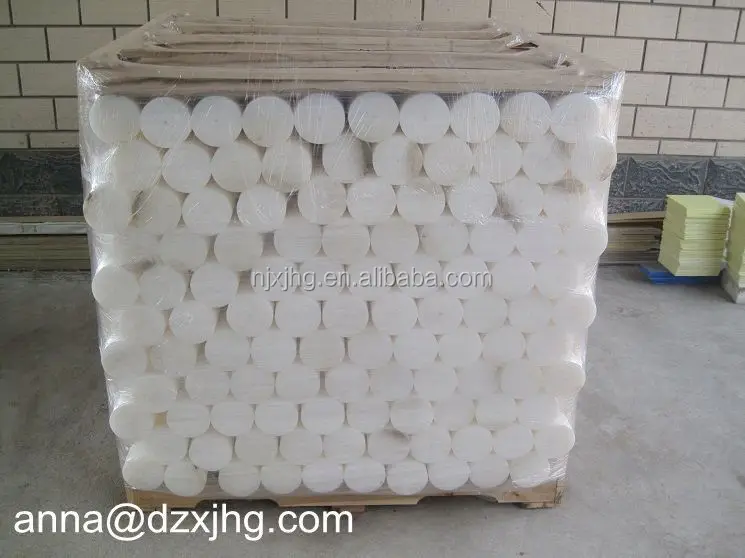

Packing |
Plastic Film, Pallet, Wooden Box, Carton, etc. |
Shipping |
International Express (DHL, UPS, FEDEX, EMS, etc.), Ocean Transport, Air Transport |
The technical data :
Properties |
unit |
Result |
Specifica Gravity |
g/cm³ |
0.95 |
Max Continuous Operating Temp: |
℃ |
80 |
Max Short Term Operating Temp(3~4hours): |
℃ |
130 |
Tensile Strength at Yield: |
Mpa |
23.3 |
Tensile Strain at Yield |
% |
21 |
Tensile Strength |
MPa |
35.2 |
Elongation at Break |
% |
350 |
Hardness Rockwell: |
- |
M61 |
Dielectric Strength: |
KV/mm |
40 |
Surface Resistivity: |
Ohms |
>1014 |
Impact Resistance Charpy Unnotched: |
KJ/m2 |
No Break |
Impact Resistance Charpy Notched: |
KJ/m2 |
>100 |
