Uhmwpe/hdpe Liner for Truck Bed, Chute, Hopper,bunker

Uhmwpe/hdpe Liner for Truck Bed, Chute, Hopper,bunker photo-1

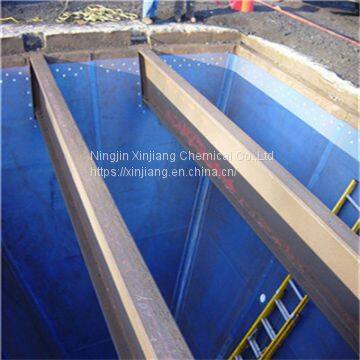

Uhmwpe/hdpe Liner for Truck Bed, Chute, Hopper,bunker photo-2

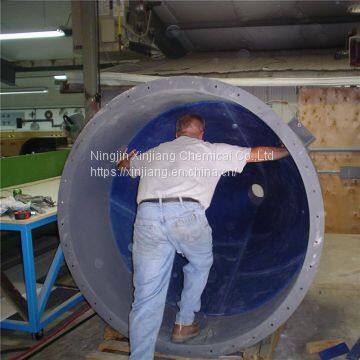

Uhmwpe/hdpe Liner for Truck Bed, Chute, Hopper,bunker photo-3

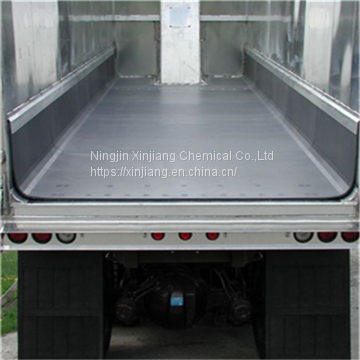

Uhmwpe/hdpe Liner for Truck Bed, Chute, Hopper,bunker photo-4

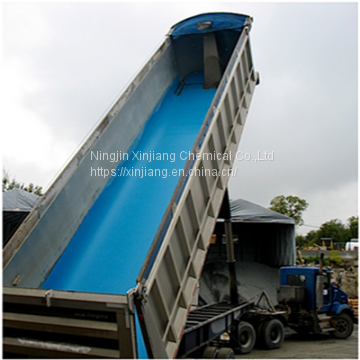

Uhmwpe/hdpe Liner for Truck Bed, Chute, Hopper,bunker photo-5
US$ 2 - 3.8 MOQ: 100 Kilograms
Key Specifications
Get Latest Price
Brand Name:
Xinjiang
Place of Origin:
China
Model Number:
XJ33HG
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
8 days
Brand Name Xinjiang
Place of Origin China
Model Number XJ33HG
Material Other, uhmwpe/hdpe
Size custom size
Thickness 5mm-300mm
Product Description

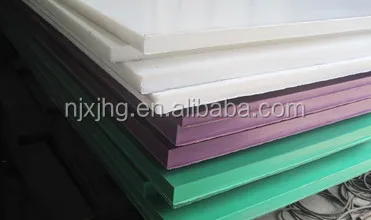

Self-lubricating UHMWPE HDPE liner sheet

Hdpe/uhmwpe has superior performance factors of all the engineering plastics. It is called an amazing material.Its characteristics of wear resistance, impact resistance, corrosion resistance, self-lubricating, impact absorption  are better than any other existing plastic material.

Detailed Images

Hdpe/uhmwpe as lining material is used to store or transport loose goods, such as minerals, coal powder, cement, sand, dirt, gravel, grain etc. Due to its properties of wear resistance, self lubrication, no bonding, UHMW PE liner not only protects equipment against wear or tear, but also improves the transportation speed.


Application of hdpe/uhmwpe liner

Application area
Containing /Transporting media
Storage bucket of iron oxide mine
Iron oxide
Mineral silo of sintering plant
Mineral
Coal conveying chute
Primary coal
Coal conveying  bin
With coal ash and slurry
Calcium sulfate chute
Wet calcium sulfate
Liner of ship cabin and truck bed
Loose and bulk goods, such as sand, dirt, gravel etc.
Technical data
Properties
unit
Result
Specifica Gravity
g/cm³
0.95
Max Continuous Operating Temp:
80
Max Short Term Operating Temp(3~4hours):
130
Tensile Strength at Yield:
Mpa
23.3
Tensile Strain at Yield
%
21
Tensile Strength
MPa
35.2
Elongation at Break
%
350
Hardness Rockwell:
-
M61
Dielectric Strength:
KV/mm
40
Surface Resistivity:
Ohms
>1014
Impact Resistance Charpy Unnotched:
KJ/m2
No Break
Impact Resistance Charpy Notched:
KJ/m2
>100
Packing & Delivery
Our Company

Ningjin Xinjiang Chemical Co., Ltd. established in 1996 is one of the largest engineering plastics manufacturers in China. We are specialized in UHMWPE products, like marine fender pad, truck liners, plastic rods/bars and machined parts, guide rails.  The products have been exported to USA, Panama, Germany, Korea, Japan, Malaysia, Saudi Arabia and many other countries. We hope to establish a wide and deep cooperation relation with customers both home and abroad.


If you need more information about uhmwpe/hdpe liner for truck bed, chute, hopper,bunker, please contact us.


Product Tags: hdpe liner , chute liner , truck bed liner
