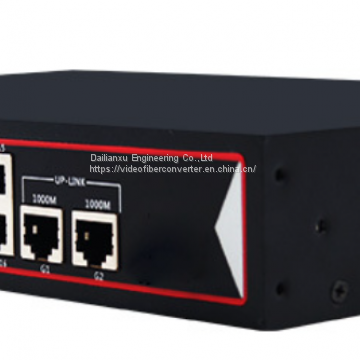

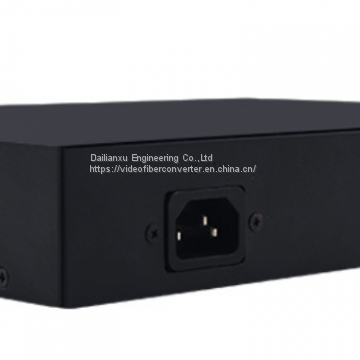

Help Center16channels 10/100M/1000M POE Switch POE Ethernet Switch 48V DC Standard POE 15.3W POE Switch
Related Products
-
24channels 10/100M/1000M POE Switch POE Ethernet Switch 48V DC Standard POE 15.3W POE SwitchUS$ 190 - 300MOQ: 1 Piece -
4channels 10/100M/1000M Gigabit POE Switch 48V 24V DC OptionalUS$ 40 - 70MOQ: 1 Piece
-
4channels 10/100M/1000M Gigabit POE Switch 5ports Gigabit POE Ethernet Switch 48VDC 24VDCNegotiableMOQ: 1 Piece
-
4channels 10/100M Fast Ethernet POE Switch With One 10/100M Ethernet Uplink Port 48VDC 24V DCNegotiableMOQ: 1 Piece
-
8channels 10/100M Fast Ethernet POE Switch With One 10/100M Ethernet Uplink Port 48VDC 24V DCNegotiableMOQ: 1 Piece
DLX-PS16-FG Adopts single port full-power technology, and single port supports Max.30W and feeds enough power to Array IR CCTV cameras. Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD (Powered Devices) and feeds power to it. Supports smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices. Has smart POE auto-recognized system to protect devices from overflow current and over -voltage etc. Adopts Auto-standby mode and cable distance detection management to ensure the switch has excellent energy saving capability. Using imported original industrial components and Gold-plated PCB. All RJ45 ports adopt advanced Self-healing multi-stage lightning protection design, have high-level lightning, surge and ESD protection.
Product Feature:
16channels 10/100M/1000M Gigabit Ethernet POE switch ,one 10/100M/1000M Uplink Ethernet port.
Adopts import industry PSE chip and Taiwan YDS transformer.
Supports IEEEE802.3X,IEE802.3u,IEE802.3z/ab,IEE802.1q, IEE802.3a protocol, Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD (Powered Devices) and feeds power to it.
Support VLAN Network isolation and BSTM broadcast storm-control setting.
Supports Auto-standby mode and cable distance detection management, if no
devices been connected, then auto-standby to save energy, if cable distance less
than 10meters,then will use Lower transmission power.
Smart POE auto-recognized system to protect devices from overflow current and
over -voltage etc.
2K MAC address.
Supports line speed switching of all ports and in 64~1536 frame length can reach line speed.
SPECIFICATIONS:
Ethernet port |
RJ45,10/100M/1000M auto-negotiation, Full-duplex/Half-duplex |
Standard |
IEEE 802.3i 10BASET；IEEE 802.3u 100BASETX；IEEE 802.3x Flow Control, IEEE 802.1af DTE Power via MDI,IEEE 802.3af/at 100Base-TX/FX |
Control |
IEE802.3X/IEE802.3Z and Full-duplex/Half-duplex |
Switching |
Back-plane:1.0Gbps ,Transfer Rate:14,880pps/14,880pps for every Ethernet Port |
Temperature |
Operation:-20℃~+70℃, Storage: -40℃~+80℃ |
Humidity |
Operation: 10%—90%, Storage: 5%—95% |
Dimension |
480(L) x 250(W) x 45(H)mm |
Power supply |
100-260V AC |
