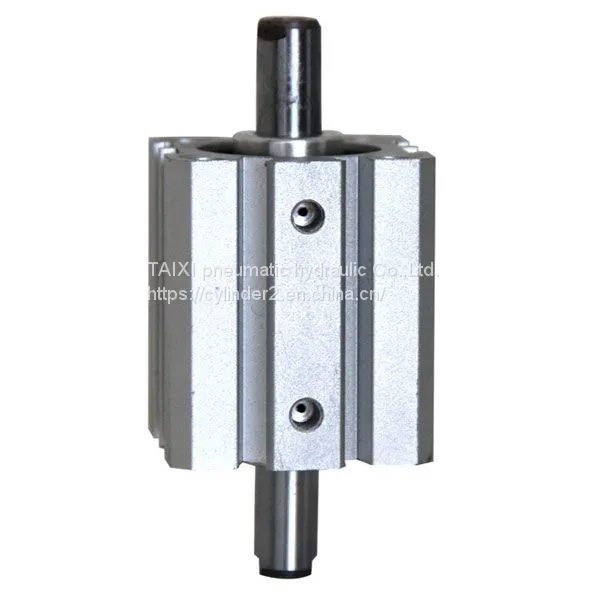

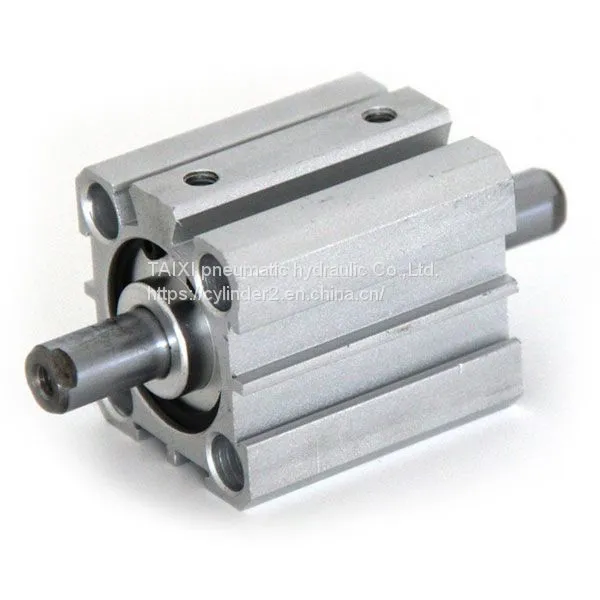

Help CenterUltra-thin Cylinder SDAD Series
US$ 1 - 1
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
TAIXI
Place of Origin:
China
Model Number:
SDAD
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
30 days
Related Products
-
Thin Cylinder CQS SeriesUS$ 2.5 - 4MOQ: 1 Unit -
Thin Cylinder ADVU SeriesUS$ 2 - 30MOQ: 1 Piece
-
Ultra Thin Cylinder SDA SeriesUS$ 3 - 14MOQ: 1 Piece
-
Ultra-thin Cylinder SDAW SeriesUS$ 1 - 1MOQ: 1 Piece
-
New Airtac Cylinder Airtac Compact Pneumatic Cylinder Sda j 50.5.10 MAL32X30-U MAL32X30UNegotiableMOQ: 1
Brand Name
TAIXI
Place of Origin
China
Model Number
SDAD
Symbol for Compact Cylinder SDAD Series
| Bore / symbol | Without magnet | With magnet | B1 | D | E | F | G | K1 | L | M | N | O | P1 | P3 | P4 | R | S | T1 | T2 | V | W | X | Y | ||||
| A | C | A | C | S=5 | S>5 | ||||||||||||||||||||||
| 12 | 27 | 17 | 37 | 27 | 5 | - | 6 | 4 | 1 | M3×0.5 | 10.2 | 3 | 5.5 | 6.3 | M5×0.8 | Both sides: Φ6.5 Thread M5×0.8 Hole: Φ4.2 | 12 | 4.5 | - | 25 | 16.3 | 23 | 6 | 5 | - | - | |
| 16 | 29.5 | 18.5 | 39.5 | 28.5 | 5.5 | - | 6 | 4 | 1.5 | M3×0.5 | 11 | 3 | 6.5 | 7.3 | M5×0.8 | Both sides: Φ6.5 Thread M5×0.8 Hole: Φ4.2 | 12 | 4.5 | - | 29 | 19.8 | 28 | 6 | 5 | - | - | |
| 20 | 30.5 | 19.5 | 40.5 | 29.5 | 5.5 | 36 | 8(st=5,6.5) | 4 | 1.5 | M4×0.7 | 13 | 3 | 7.5 | M5×0.8 | Both sides: Φ6.5 Thread M5×0.8 Hole: Φ4.2 | 14 | 4.5 | 2 | 34 | 24 | - | 8 | 6 | 11.3 | 10 | ||
| 25 | 33 | 21 | 43 | 31 | 6 | 42 | 10(st=5,7) | 4 | 2 | M5×0.8 | 17 | 3 | 8 | M5×0.8 | Both sides:Φ8.2 Thread M6×1.0 Hole: Φ4.6 | 15 | 5.5 | 2 | 40 | 28 | - | 10 | 8 | 12 | 10 | ||
| 32 | 38.5 | 24.5 | 48.5 | 34.5 | 7 | 50 | 8 | 12 | 4 | 3 | M6×1 | 22 | 3 | 8 | 9 | PT1/8 | Both sides:Φ8.2 Thread M6×1.0 Hole: Φ4.6 | 16 | 5.5 | 6 | 44 | 34 | - | 12 | 10 | 18.3 | 15 |
| 40 | 40 | 26 | 50 | 36 | 7 | 58.5 | 8 | 12 | 4 | 3 | M8×1.25 | 28 | 3 | 8 | 10 | PT1/8 | Both sides:Φ10 Thread M8×1.25 Hole: Φ6.5 | 20 | 7.5 | 6.5 | 52 | 40 | - | 16 | 14 | 21.3 | 16 |
| 50 | 46 | 28 | 56 | 38 | 9 | 71.5 | 8 | 15 | 5 | 4 | M10×1.5 | 38 | 3 | 8 | 10.5 | PT1/4 | Both sides:Φ11 Thread M8×1.25 Hole: Φ6.5 | 25 | 8.5 | 9.5 | 62 | 48 | - | 20 | 17 | 30 | 20 |
| 63 | 50 | 32 | 60 | 42 | 9 | 84.5 | 10 | 15 | 5 | 4 | M10×1.5 | 40 | 3 | 9.5 | 11.8 | PT1/4 | Both sides:Φ11 Thread M8×1.25 Hole: Φ6.5 | 25 | 8.5 | 9.5 | 75 | 60 | - | 20 | 17 | 28.7 | 20 |
| 80 | 63 | 41 | 73 | 51 | 11 | 104 | 13 | 20 | 6 | 5 | M14×1.5 | 45 | 4 | 11.5 | 14.5 | PT3/8 | Both sides:Φ14 Thread M12×1.75 Hole: Φ9.2 | 25 | 10.5 | 10 | 94 | 74 | - | 25 | 22 | 36 | 26 |
| 100 | 75 | 51 | 85 | 61 | 12 | 124 | 18 | 20 | 7 | 5 | M18×1.5 | 55 | 4 | 16 | 20.5 | PT3/8 | Both sides:Φ17.5 Thread M14×2 Hole: Φ11.3 | 30 | 13 | 10 | 114 | 90 | - | 32 | 27 | 35 | 26 |
