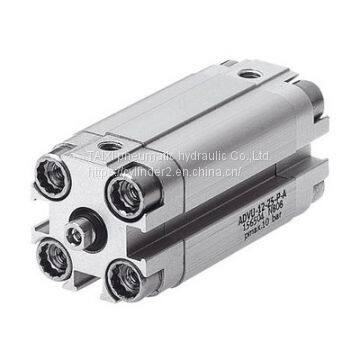

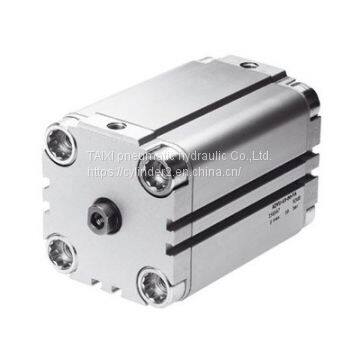

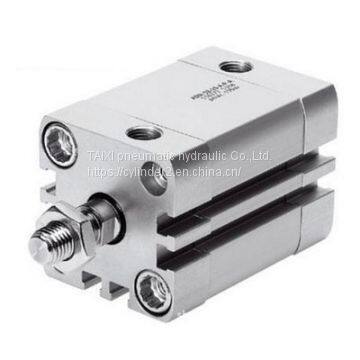

| Bore | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Motion Pattern | Double-acting (Single rod / double rod) | |||||||||
| Working Medium | Filtered compressed air | |||||||||
| Proof Pressure | 1.5MPa | |||||||||
| Operating pressure range | ADVU-P-A | 0.12~1.0MPa | 0.1~1.0MPa | 0.08~1.0MPa | 0.06~1.0MPa | |||||
| ADVU-P-A-S2 | 0.13~1.0MPa | 0.12~1.0MPa | 0.1~1.0MPa | 0.8~1.0MPa | ||||||
| Environment and fluid temp | -20~80℃ | |||||||||
| Port size | M5 | G1/8+ | G1/4+ | |||||||
| Piston thread | Inner thread | M4 | M5 | M6 | M8 | M10 | M12 | |||
| Outer thread | M8 | M10×1.25 | M12×1.25 | M16×1.25 | M20×1.25 | |||||
| Buffer | Rubber Buffer | |||||||||
Note:
When mounting 12 and 16mm cylinders from the upper, the two mounting screws are diagonal, or use non-magnetic screws. Stroke length +2= min. rotary depth
| Bore(mm) | D1 | E | EE | H | L2 | L3 | L4 | MM | PL | RT | T2 | TG | ZJ | CC1 |
| 16 | 6 | 29 | M5 | 1 | 38 | 4 | 18.5 | 8 | 8 | M4 | 4 | 18 | 41 | 6 |
| 20 | 6 | 35.5 | M5 | 1.5 | 38 | 4 | 18.5 | 10 | 8 | M5 | 4 | 22 | 41 | 8 |
| 25 | 6 | 39.5 | M5 | 1.5 | 39.5 | 4 | 18.5 | 10 | 8 | M5 | 4 | 26 | 43.5 | 9 |
| 32 | 6 | 49.5 | G1/8 | 2 | 44.5 | 5 | 22 | 12 | 8 | M6 | 4 | 32 | 49.5 | 10 |
| 40 | 6 | 59.5 | G1/8 | 2.5 | 45.5 | 5 | 22 | 12 | 8 | M8 | 4 | 42 | 51 | 10 |
| 50 | 6 | 68 | G1/8 | 2.8 | 46.5 | 6 | 22 | 16 | 8 | M8 | 4 | 50 | 53 | 14 |
| 63 | 8 | 86 | G1/8 | 4 | 50 | 8 | 26 | 16 | 8 | M10 | 4 | 62 | 56 | 14 |
| 80 | 8 | 108 | G1/8 | 4 | 58 | 8 | 26 | 20 | 8.5 | M10 | 4 | 82 | 62 | 17 |
| 100 | 8 | 128 | G1/4 | 5 | 66.5 | 8 | 26 | 35 | 10.5 | M10 | 4 | 103 | 76.5 | 22 |
