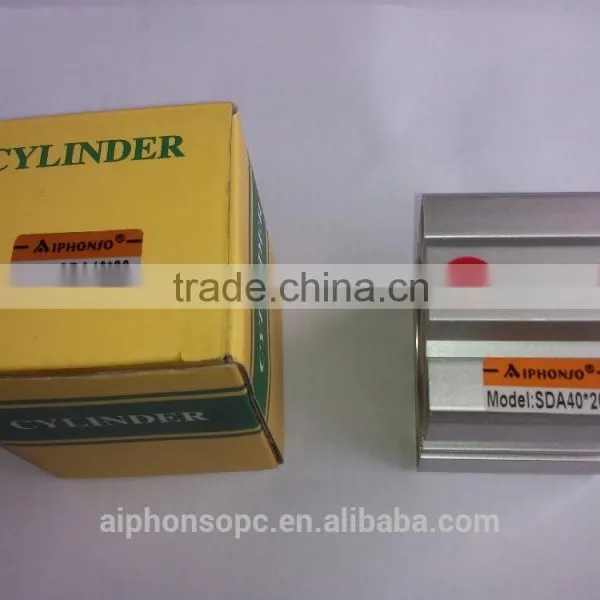

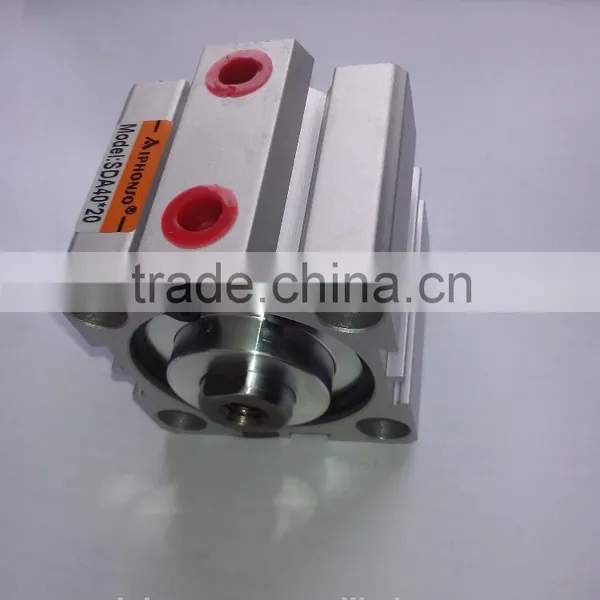

Help CenterCompact Pneumatic Cylinder SDA40*20
Related Products
-
SC63*100 Aiphonso Pneumatic Door CylinderUS$ 6 - 20MOQ: 20 Pieces -
ISO 9001 SC63*100 Double Acting Air CylinderUS$ 6 - 20MOQ: 20 Pieces
-
SC Series Standard Air Cylinder SC63*100US$ 5 - 10MOQ: 10 Pieces
-
SU Series Pneumatic Cylinder Factory Direct Sales SectionsUS$ 5 - 6MOQ: 10 Pieces
-
SC Series Standard Airtac Cylinder, Air CylinderUS$ 5 - 10MOQ: 10 Pieces
Ordering Code
| SDA | - | 20 | × | 30 | - | S |
| Model | Bore | Stroke | Magnet Code | |||
| SDA:Double action | S:With magnet | |||||
| SSA:Single action(drawu-out) | Blank:Without magnet | |||||
| STA:Single action(drawu-in) | ||||||
| SDAD:Double-shaft | ||||||
Specification
| Bore(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
| Action type | Double Action | |||||||||
| Single action(drawu-out/in) type | ||||||||||
| Working Medium | Air | |||||||||
| Pressure Range | 1.0~9.0Kgf/cm² | |||||||||
| 2.0~9.0Kgf/cm² | ||||||||||
| Ensured Pressure Resistance | 10.5Kgf/cm² | |||||||||
| Temperature Range | 0~70℃ | |||||||||
| Speed Range | 30~500mm/s | 30~350mm/s | 30~250mm/s | |||||||
| 100~500mm/s | ||||||||||
| Buffer Type | Adjustable Buffer | |||||||||
| Buffer Stroke | 24 | 32 | ||||||||
| Joint Pipe Bore | M5×0.8 | G1/8" | G1/4" | G3/8" | ||||||
Single action of rod retract / extend:

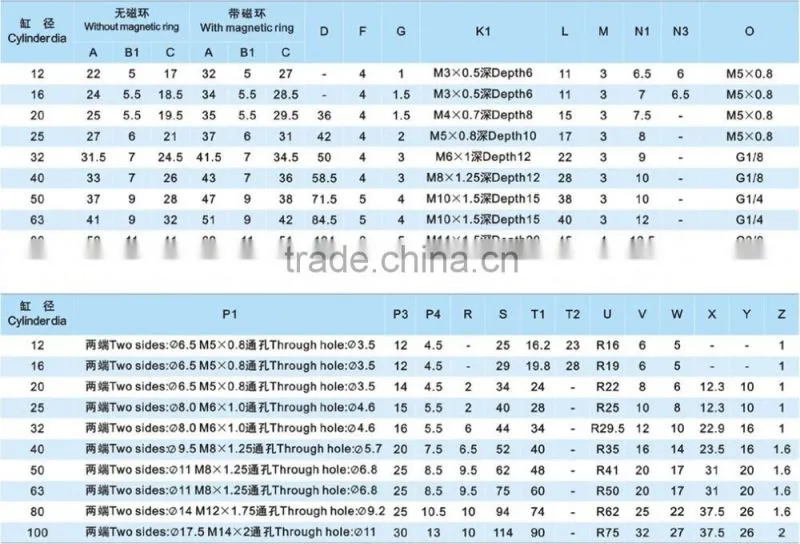

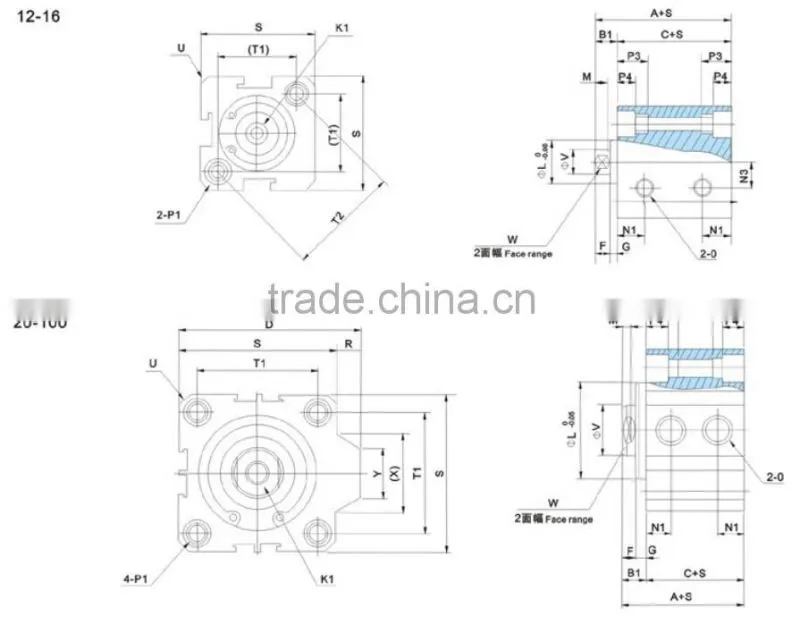

Double action with magetic ring:

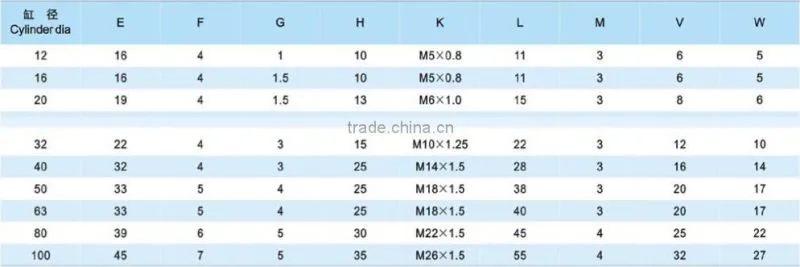

Specification of outside screw thread:
Fenghua Aiphonso Industrial Autaomation CO., LTD
is a professional manufacturer of pneumatic components,solenoid valves, cylinders,fittings and so on. It has more than 100 employees and covers an area of over 4,000 square meters.Technology-oriented, quality-based and continual quality improvement make it capable of passing ISO9001:2000 Quality System Certification .Our Products are well sold in Southeast Asia,the Middle East and other regions.
Production Process:

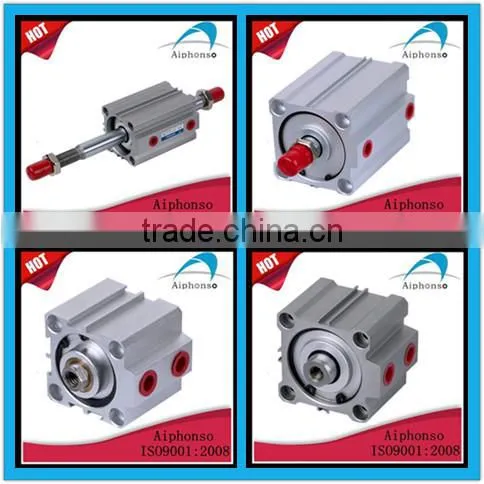

Other Products:
