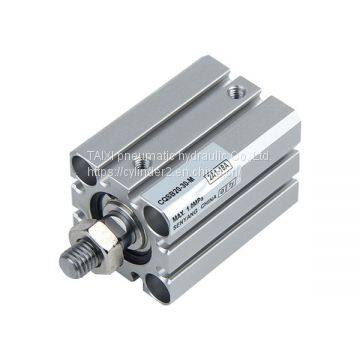

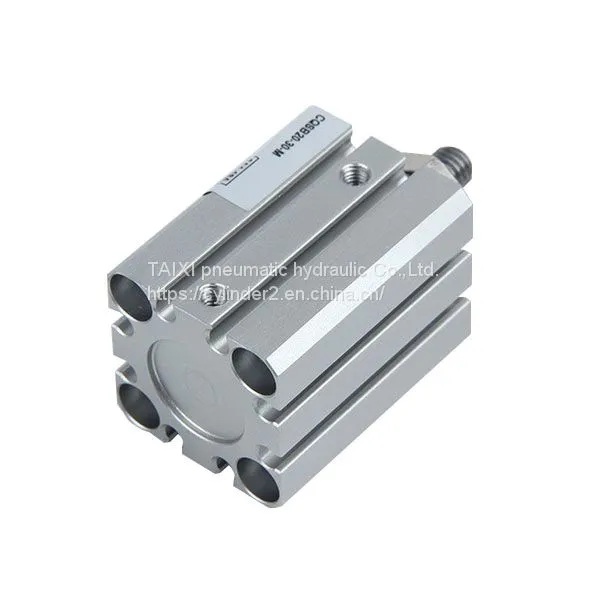

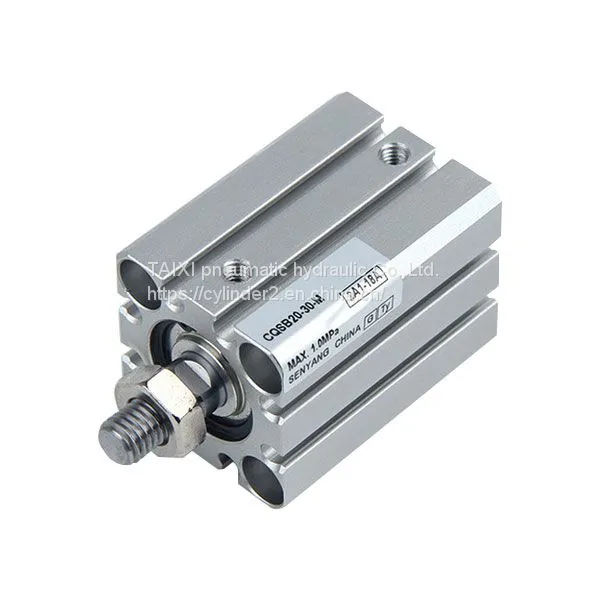

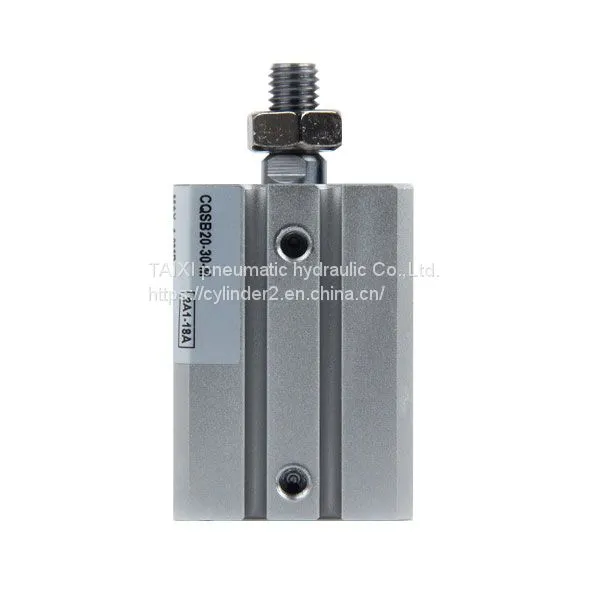

Brand Name
TAIXI
Place of Origin
China
Model Number
CQS
Symbol
| Bore (mm) | 12 | 16 | 20 | 25 |
| Working Medium | Air | |||
| Motion Pattern | Double acting; Single acting: Spring return/extend | |||
| Proof Pressure | 1.5MPa(15.3kgf/cm2) | |||
| Max. Operating Pressure | 1.0MPa(10.2kgf/cm2) | |||
| Ambient and fluid temperature | -10℃~+60℃ | |||
| Rod End Thread | Female thread (standard), male thread (option) | |||
| Cushion | No | |||
| Piston Speed | 50~500mm/ s | |||
| Stroke Tolerance | +1.0/0 | |||
| *Lubrication | Non-lube | |||
| Installation | Hole, two-ends female thread(common) | |||
| Port Size | M5×0.8 | |||
*For Lubrication, please use ISOVG32.
Stroke / magnetic switch type table| Bore(mm) | Standard Stroke | Magnetic switch | |
| Double acting | Single acting | Rail Mounting | |
| 12 | 5,10,15, 20,25,30 | 5, 10 | A93(V) A96(V) M9N(V) F9NW M9B(V) M9P(V) F9BA |
| 16 | |||
| 20 | 5,10,15,20,25, 30,35,40,45,50 | 5, 10 | |
| 25 | |||
*The specifications and characteristics of magnetic switches refer to the series of magnetic switches
Feature1. Easy installation
Shared by through holes with two ends thread holes.
2. Save Space
The micro magnetic switch is arranged in the cylinder groove, and the cylinder can not be exposed outside
| Bore (mm) | C | H | L | X |
| 12 | 9 | M5×0.8 | 14 | 10.5 |
| 16 | 10 | M6×1.0 | 15.5 | 12 |
| 20 | 12 | M8×1.25 | 18.5 | 14 |
| 25 | 15 | M10×1.25 | 22.5 | 17.5 |
| Bore (mm) | C | H | L | X | |
| 5ST | 10ST | ||||
| 12 | 9 | M5×0.8 | 19 | 24 | 10.5 |
| 16 | 10 | M6×1.0 | 20.5 | 25.5 | 12 |
| 20 | 12 | M8×1.25 | 23.5 | 28.5 | 14 |
| 25 | 16 | M10×1.25 | 27.5 | 32.5 | 17.5 |
Common size table of Double-acting, Single-acting
| Bore (mm) | Basic Type | |||||||||||||
| C | D | E | H | I | K | M | N | OA | OB | RA | RB | T | Q | |
| 12 | 6 | 6 | 25 | M3×0.5 | 32 | 5 | 15.5 | 3.5 | M4×0.7 | 6.5 | 7 | 4 | 0.5 | 7.5 |
| 16 | 8 | 8 | 29 | M4×0.7 | 38 | 6 | 20 | 3.5 | M4×0.7 | 6.5 | 7 | 4 | 0.5 | 7.5 |
| 20 | 7 | 10 | 36 | M5×0.8 | 47 | 8 | 25.5 | 5.4 | M6×1.0 | 9 | 10 | 7 | 1 | 9 |
| 25 | 12 | 12 | 40 | M6×1.0 | 52 | 10 | 28 | 5.4 | M6×1.0 | 9 | 10 | 7 | 1 | 11 |
Double-acting
| Double-acting | Stroke Range (mm) | Basic Type | Built-in magnet type | |||||
| A | B | F | L | Q | A | B | ||
| 12 | 5~30 | 20.5+ST | 17+ST | 5 | 3.5 | 7.5 | 25.5+ST | 22+ST |
| 16 | 5~30 | 20.5+ST | 17+ST | 5 | 3.5 | 7.5 | 25.5+ST | 22+ST |
| 20 | 5~30 | 24+ST | 19.5+ST | 5.5 | 4.5 | 9 | 34+ST | 29.5+ST |
| 25 | 5~30 | 27.5+ST | 22.5+ST | 5.5 | 5 | 11 | 37.5+ST | 32.5+ST |
Single-acting: Spring Return
| Bore (mm) | Stroke Range (mm) | Basic Type | Built-in magnet type | ||||||||
| A | B | F | L | A | B | ||||||
| 5ST | 10ST | 5ST | 10ST | 5ST | 10ST | 5ST | 10ST | ||||
| 12 | 5, 10 | 25.5 | 30.5 | 22 | 27 | 5 | 3.5 | 30.5 | 35.5 | 27 | 32 |
| 16 | 25.5 | 30.5 | 22 | 27 | 5 | 3.5 | 30.5 | 35.5 | 27 | 32 | |
| 20 | 29 | 34 | 24.5 | 29.5 | 5.5 | 4.5 | 39 | 44 | 34.5 | 39.5 | |
| 25 | 32.5 | 37.5 | 27.5 | 32.5 | 5.5 | 5 | 42.5 | 47.5 | 37.5 | 42.5 | |
Single-acting: Spring Extend
| Bore (mm) | Stroke Range (mm) | Basic Type | Built-in magnet type | |||||||||
| A | B | L | Q | A | B | |||||||
| 5ST | 10ST | 5ST | 10ST | 5ST | 10ST | 5ST | 10ST | 5ST | 10ST | |||
| 12 | 5, 10 | 30.5 | 40.5 | 22 | 27 | 8.5 | 13.5 | 7.5 | 35.5 | 45.5 | 27 | 32 |
| 16 | 30.5 | 40.5 | 22 | 27 | 8.5 | 13.5 | 7.5 | 35.5 | 45.5 | 27 | 32 | |
| 20 | 34 | 39 | 24.5 | 29.5 | 9.5 | 14.5 | 9 | 44 | 49 | 34.5 | 39.5 | |
| 25 | 37.5 | 42.5 | 27.5 | 32.5 | 10 | 15 | 11 | 47.5 | 52.5 | 37.5 | 42.5 | |
