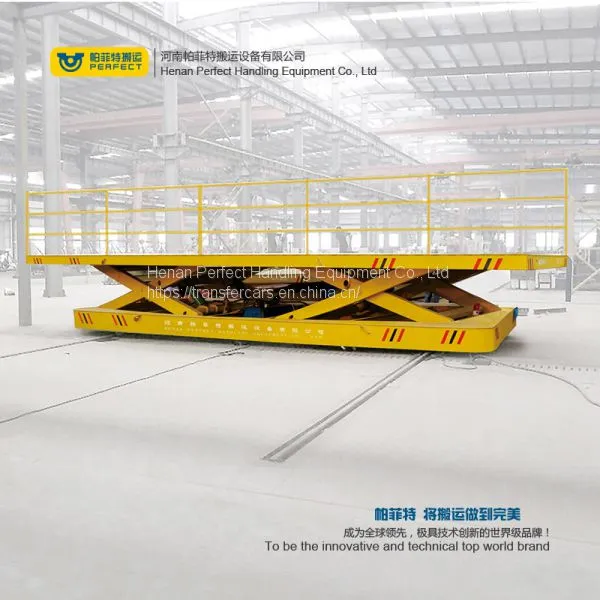

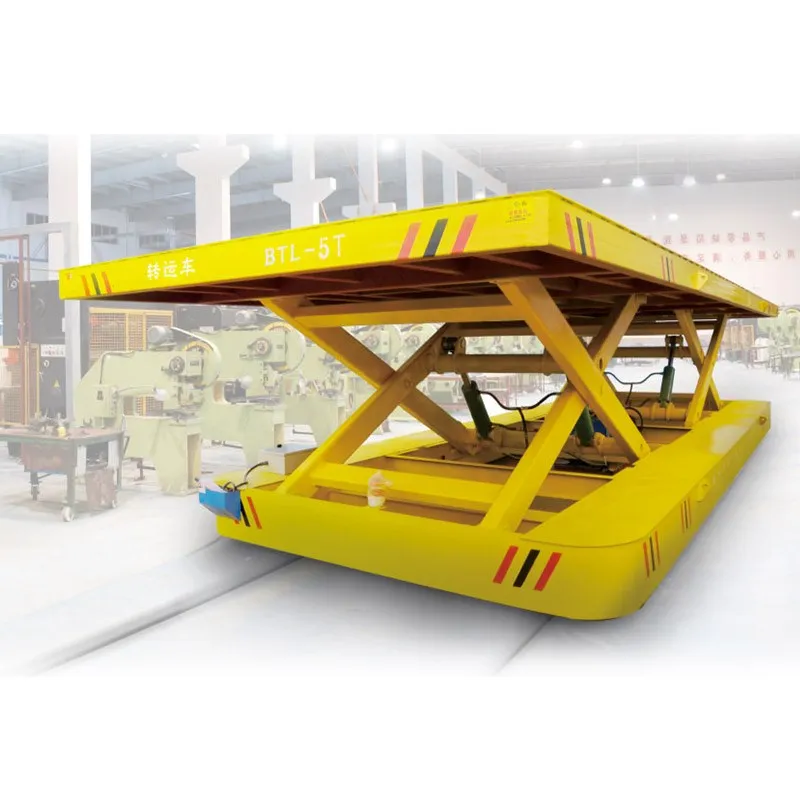

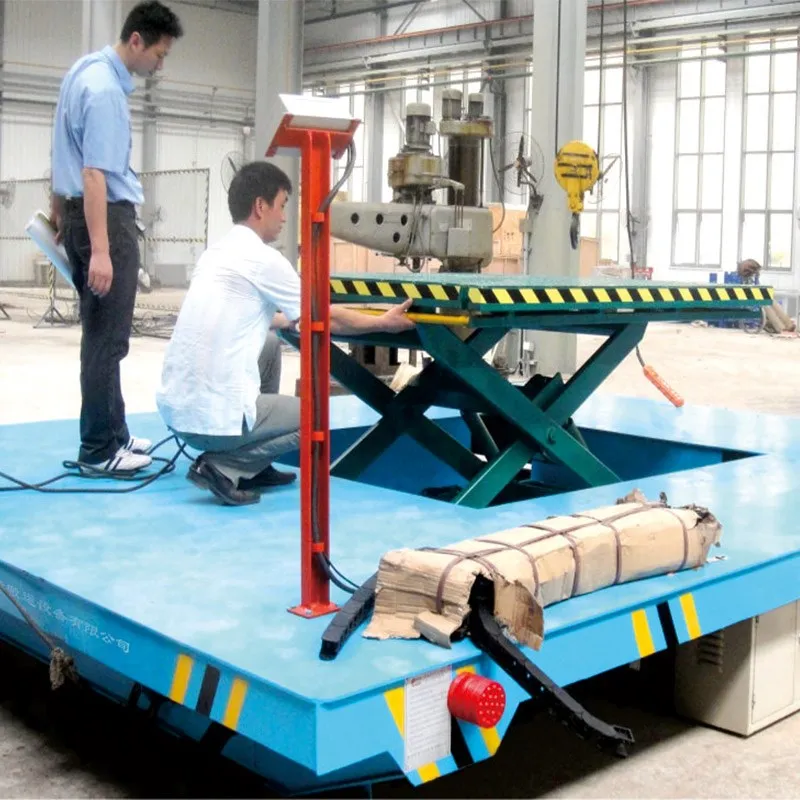

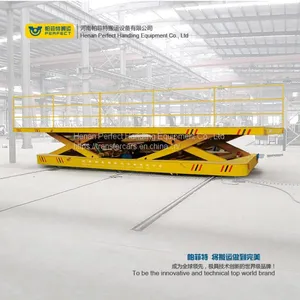

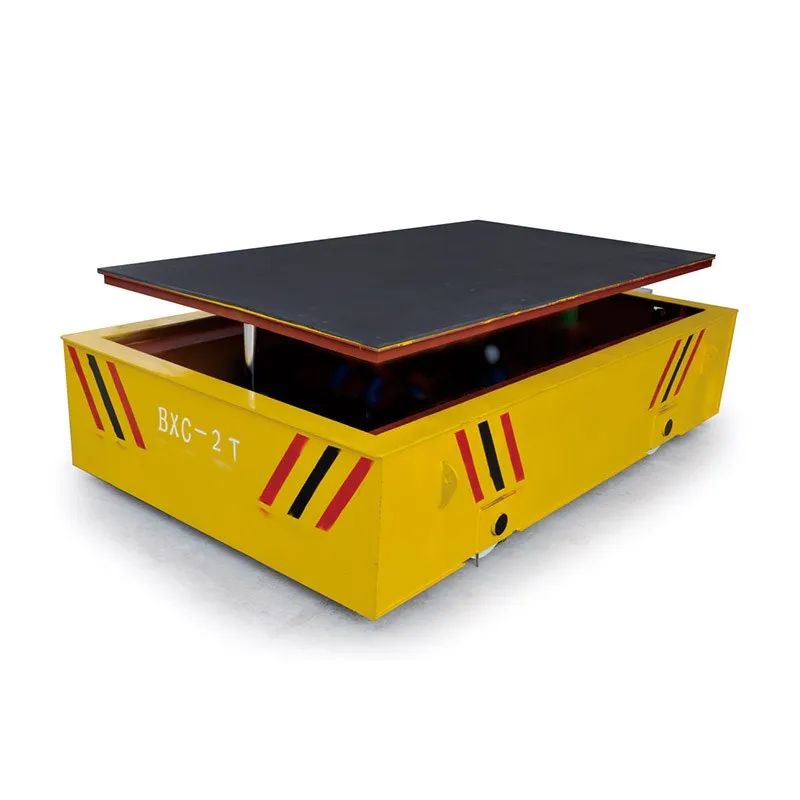

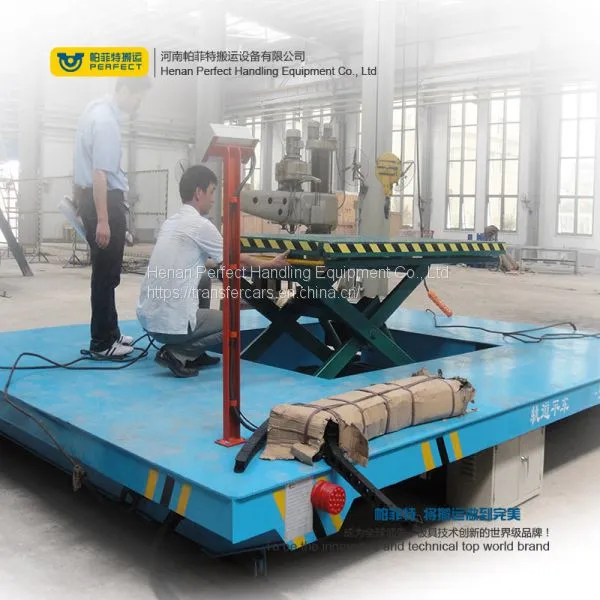

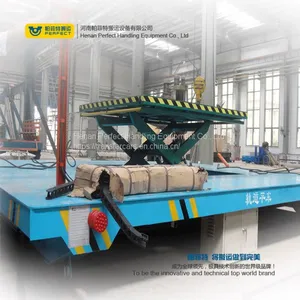

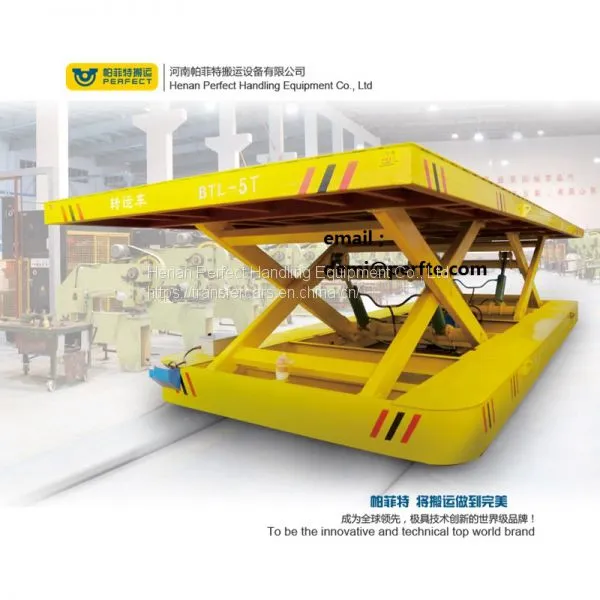

There are two series Lifting Trolley.One is only hydraulic lifting which is convenient operating and easy lifting,besides,two cars of this type can lift the heavy equipment together.Another one is scissor lifting.This series Lifting Trolley is powered by battery ,low voltage rail,cable drum,trailing cable. The change of hydraulic system makes the lifting height efficiently increase.Lifting cargo by scissor lifting is simple and steady.This series Lifting Trolley has been widely applied in these fields, such as construction, steel plant, shipyard, chemical industry,etc.
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
The Lifting Trolley is Anti-high temperature,Anti-high explosion;
The Lifting Trolley is powered by battery;
With lifting holes, Lifting Trolley is convenient to shipment;
The Lifting Trolley has a feature of stable start, big starting power, long lifetime;
The Lifting Trolley can run on the C-form track or S-form track and L-form track;
Running distance of Lifting Trolley is unlimited;
Safe and convenient operation is available for this Lifting Trolley;
High using frequency for Lifting Trolley.

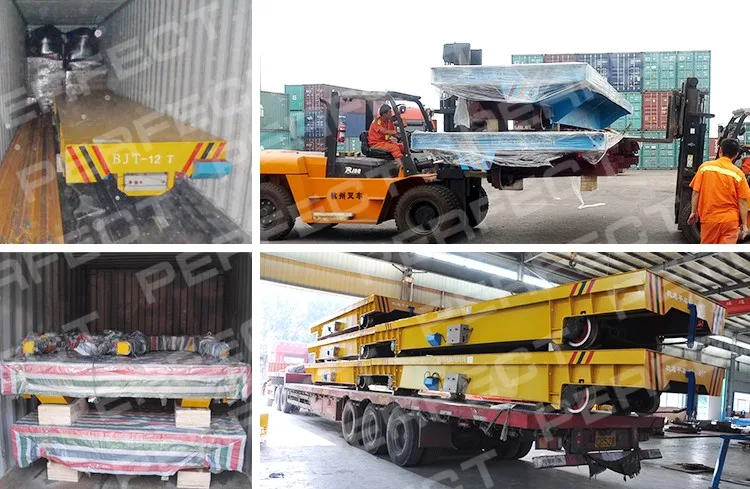

- The Lifting Trolley body is packed with tarp, the Lifting Trolley wheel and parts will be packed with wooden case.
- For lenght is less than 5.9m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the Lifting Trolley is beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
Price Term: EXW, FOB, CIF, C&F,DDU, DDP.
Our commitment: The load bearing safety factor of the Lifting Trolley is no less than 120%.
Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
16 hours engineering service and 24 hours internet service for our customers.
During the warranty period, if our Lifting Trolley can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

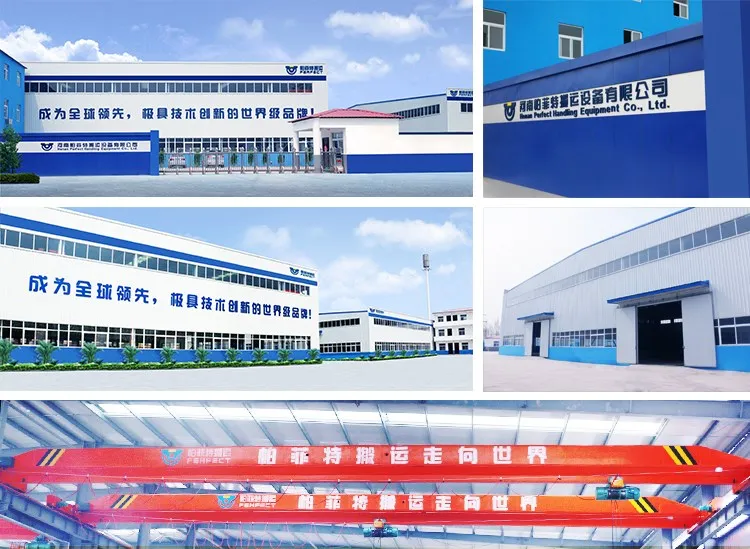

Based on modern plant and advanced production equipment, we can produce all kinds of Lifting Trolley from 1-1300 tons, our main products including BDG series Lifting Trolley, BJT cable drum series Lifting Trolley, BHX safety sliding line series Lifting Trolley, BXC battery series Lifting Trolley, BTL towed cable series Lifting Trolley, BP non-power series Lifting Trolley, BQY train towed series Lifting Trolley, BWP trackless series Lifting Trolley and special Lifting Trolley, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
