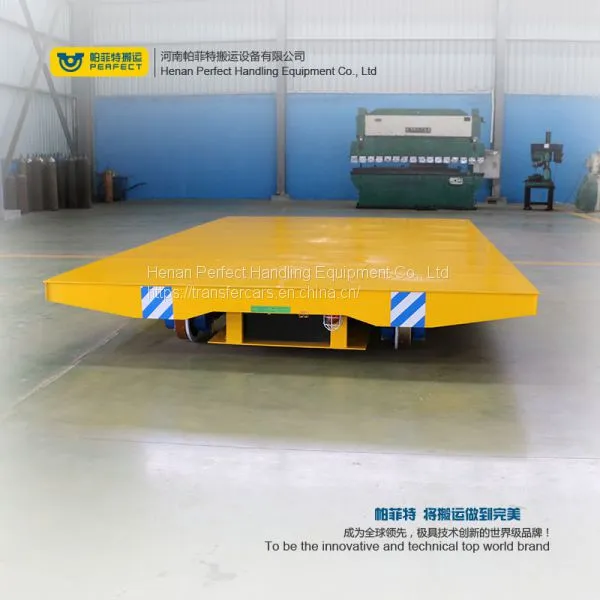

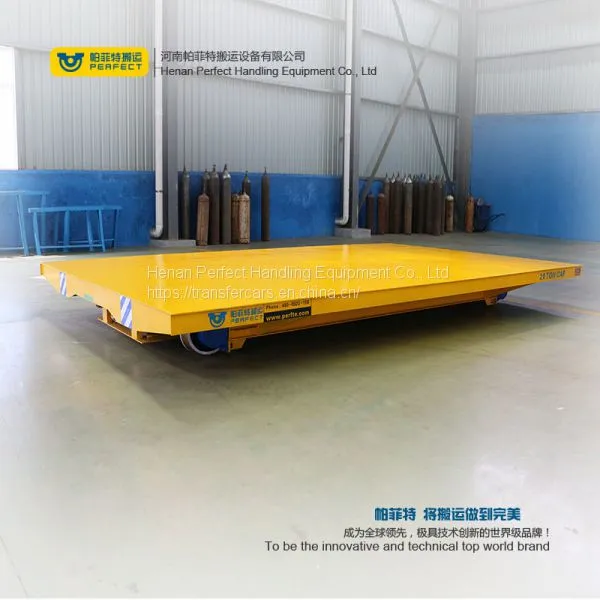

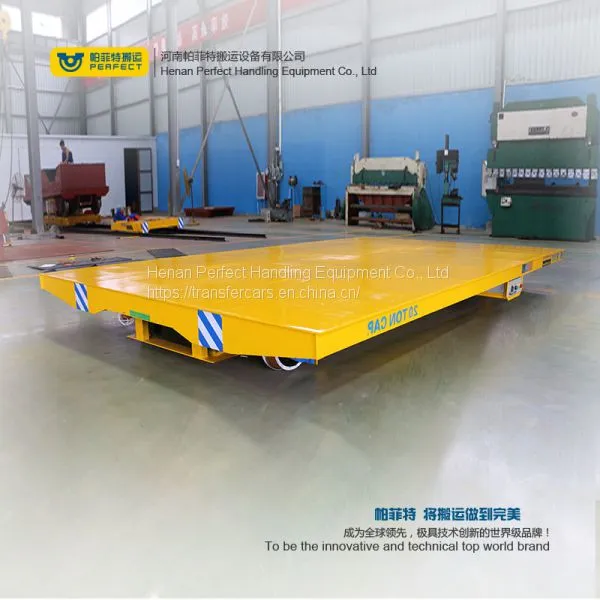

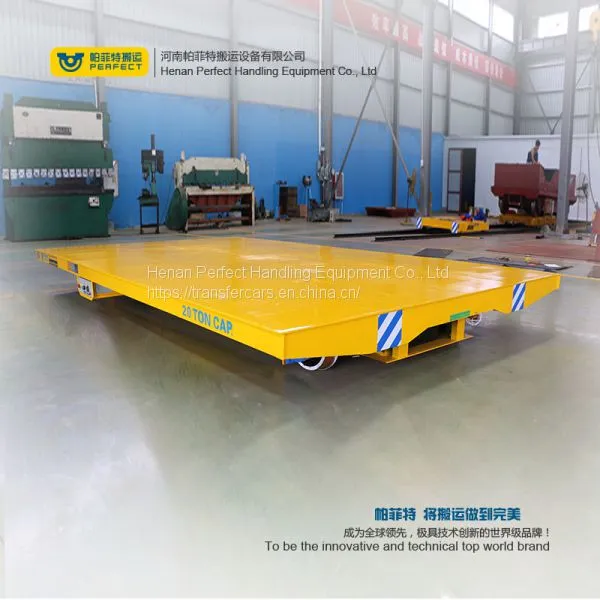

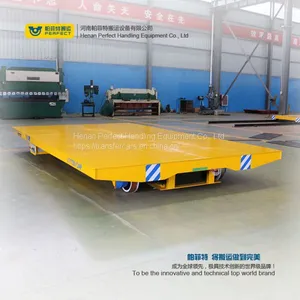

Production of battery electric flatbed rail ground translation vehicle

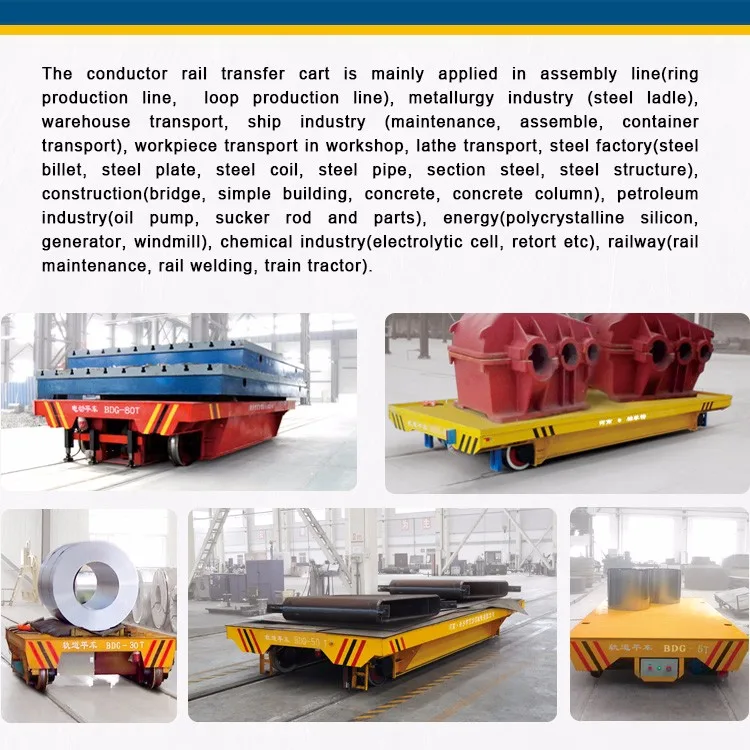

The BXC series manufacturer custom battery propelled rail ground translation vehicle. The battery is installed inside the rail ground translation vehicle . The BXC series rail ground translation vehicle is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track.The BXC series rail ground translation vehicle has been widely applied in these fields, such as construction, steel plant, shipyard, chemical industry,etc. The BXC custom rail ground translation vehicle is available in inflammable and explosive environment or used as ferry car. The BXC series custom battery propelled rail turntable transfer car is suitable for long distance transportation and low frequency, since its travel distance is unlimited and low requirement to the track.
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |

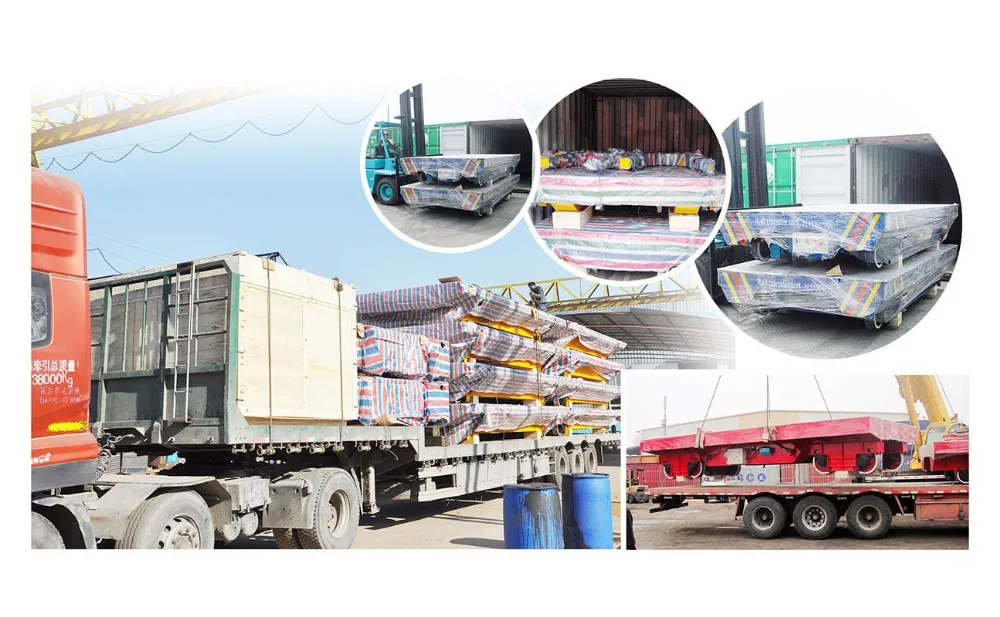

- The electric transfer trolley body is packed with tarp, the electric trolley handles coils wheel and parts will be packed with wooden case.
- For lenght is less than 5.9m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the electric trolley handles coils is beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
Price Term: EXW, FOB, CIF, C&F,DDU, DDP.
Our commitment: The load bearing safety factor of the electric trolley handles coils is no less than 120%.
Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
16 hours engineering service and 24 hours internet service for our customers.
During the warranty period, if our electric trolley handles coils can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
Based on modern plant and advanced production equipment, we can produce all kinds of electric transfer trolley from 1-1300 tons, our main products including BDG series electric trolley handles coils , BJT cable drum series electric trolley handles coils , BHX safety sliding line series electric trolley handles coils , BXC battery series electric trolley handles coils , BTL towed cable series electric trolley handles coils , BP non-power series electric trolley handles coils , BQY train towed series electric trolley handles coils , BWP trackless series electric trolley handles coils and special electric trolley handles coils , such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
