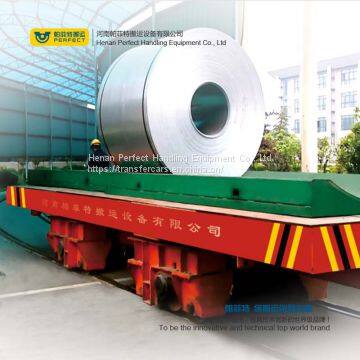

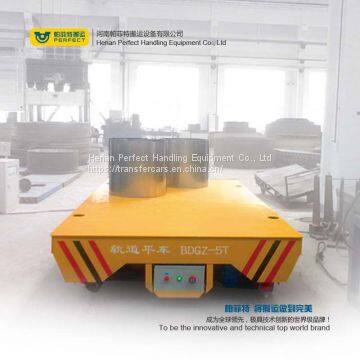

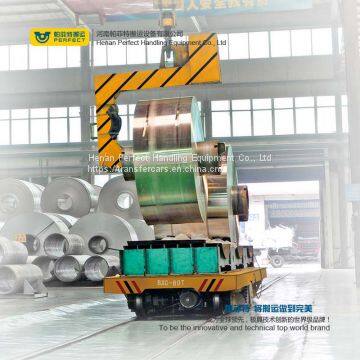

10t Rail Electric Transfer Cart for Transfer Steel Pipe, Billets , Ladle and Coil
US$ 3000 - 7800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
10t rail electric transfer cart
Place of Origin:
China
Model Number:
10t rail electric transfer cart
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao ,Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20t Heavy Load High Temperature Resistance Steel Ladle Transfer CarsUS$ 3200 - 7200MOQ: 1 Set -
40 Ton no Powered Plant Transfer Trailer for Outdoor Material TransportUS$ 3200 - 7200MOQ: 1 Set
-
Custom Industry Heavy Battery Powered Track Transfer CartUS$ 3200 - 7200MOQ: 1 Set
-
Industry Non-powered Trailer Towed by LocomotiveUS$ 3200 - 6000MOQ: 1 Set
-
Battery Operated Turn Electric Transfer Flat Cart on RailsUS$ 3200 - 7500MOQ: 1 Set
Brand Name
10t rail electric transfer cart
Place of Origin
China
Model Number
10t rail electric transfer cart
After-sales Service Provided
Engineers available to service machinery overseas

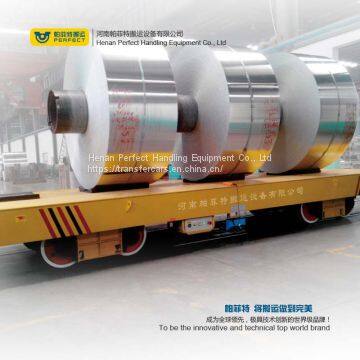

This10t rail electric transfer cart is usually used at ship yard, plant and factory, certain production line. The Blasting motrized transfer cart could get power from outside or from the battery. The Blasting motrized transfer cart was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. Blasting motrized 10t rail electric transfer cart construction is based on our world renowned die Blasting motrized transfer carts and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our Blasting motrized 10t rail electric transfer cart is available in a number of configurations specifically designed to suit the needs of our customers.
Technical Parameter of 10t rail electric transfer cart
| Model | BTL-2t | BTL-20t | BTL-50t | BTL-100t | BDGS-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 0-20 |
|||||
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |

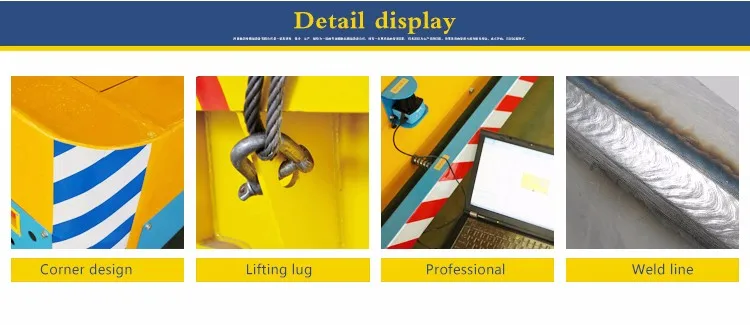

Detial of Blasting 10t rail electric transfer cart
NOTES:
Flat deck or fixtures for transporting special payload;
Custom deck configurations may include lift, tilt, or rotate function;
Payload from 1 ton to 300 tons;
Fixed speed or variable speed capabilities;
With forward or backing driving;
Options for automatic control;

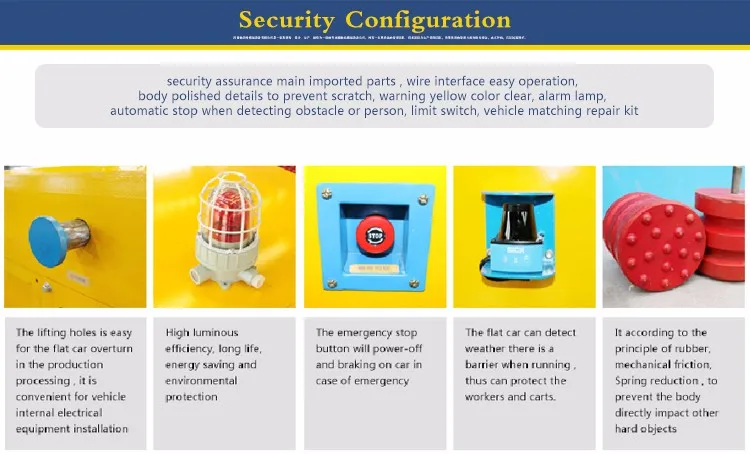

Available safety equipment includes horn, lights, emergency stop, bumpers and detector.

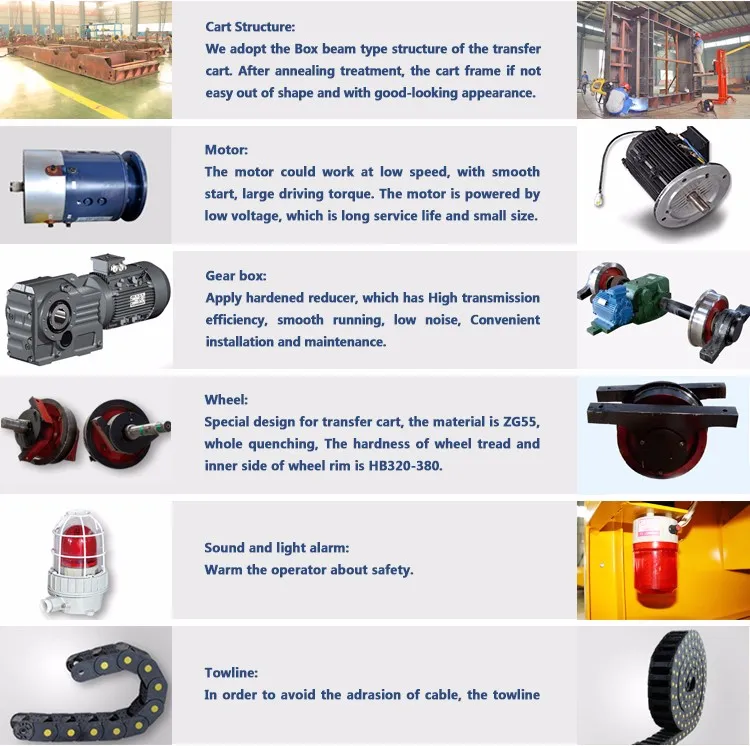

Components of 10t rail electric transfer cart
Technical Process of 10t rail electric transfer cart
1. Moving the steel plate from storage area to cutting process area by crane;
2. According to the cutting drawing cutiting steel plate by the numercial control cutting machine;
3. The mobile welding machine is used for precise welding of diferent parts of the frame;
4. Fine grinding and weld inspection of the weld joint;
5. For every car primer spray, toccat, perfect antirust, ensure th ebeauftiful appearance;
6. Installation of the whole internal parts of the wheel and the car body;
7. Commissioning the vehicle operation and electrical parts, then test after completion of commissoning:
8. Zero load test and load test before shipping.

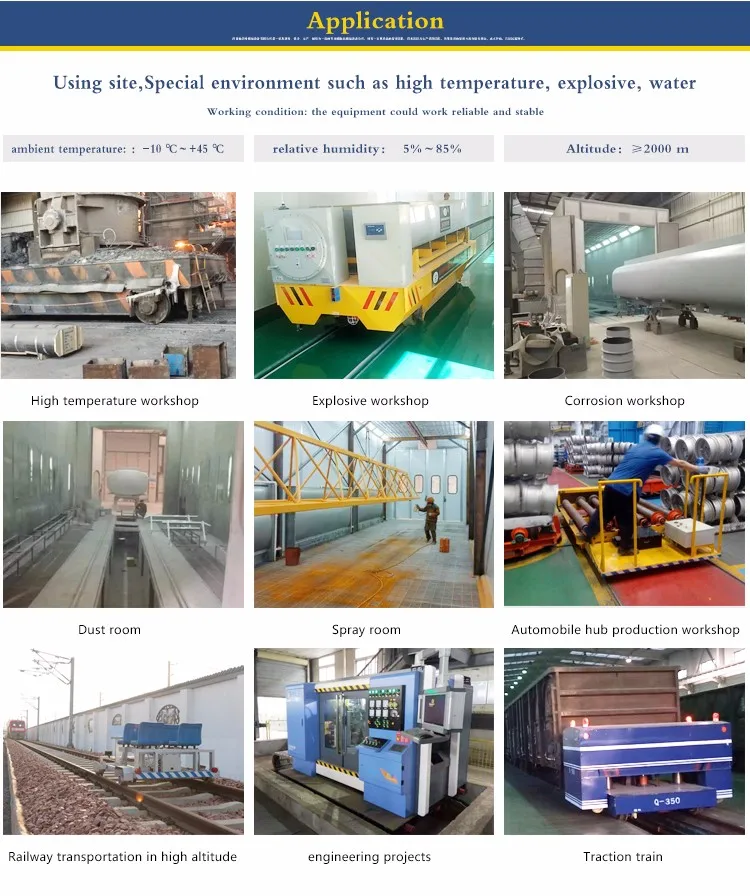

Application Sites of 10t rail electric transfer cart
The 10t rail electric transfer cart is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
Customers Visiting

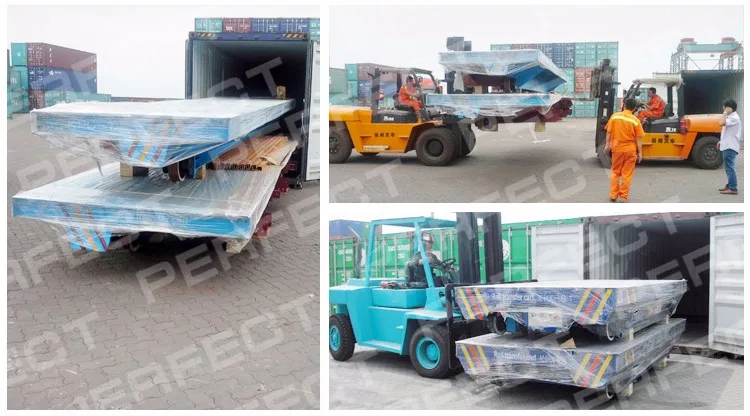

Package of Blasting motrized transfer cart
Our Blasting motrized transfer cart not only have sold across the country, but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc. The Blasting motrized transfer cart body is packed with tarp, and the wheel and parts of the Blasting motrized transfer cart will be packed with wooden case. According the table size and quantity, the Blasting motrized transfer cart would be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
Certificates

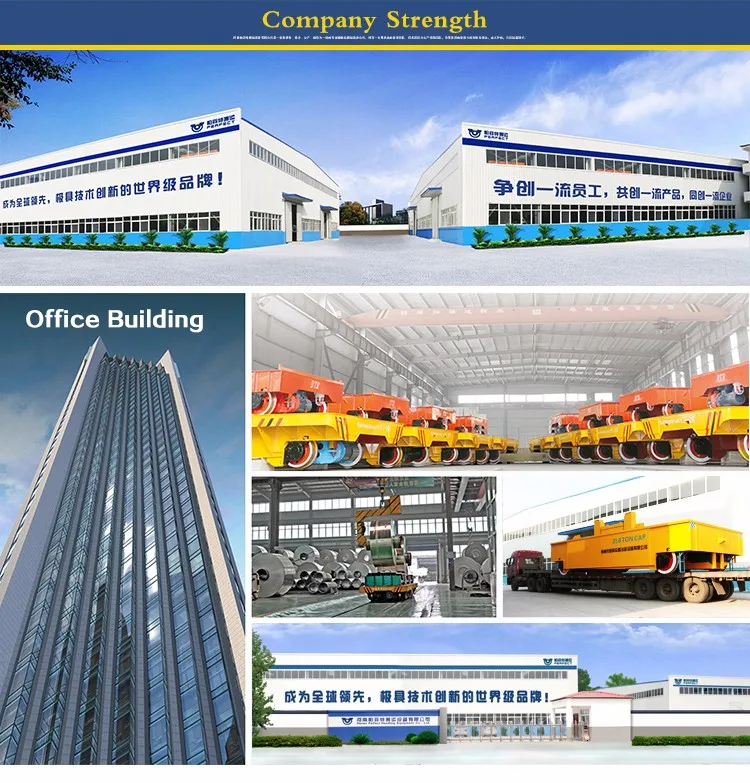

Our Factory
Our factory is located in Xinxiang City, Henan province, where the Blasting motrized transfer cart are manufactured and assembled. Our plant is full service from the mechanical and control engineering to fabrication and machining, we could offer all of those. With the spirit of quality, durability, satisfaction, we have run our plant for over 15 years, and our products have gotten CE, SGS, ISO certificates. With the high quality machine, skilled workers and experience engineers, we will supply the best 10t rail electric transfer cart for you.
