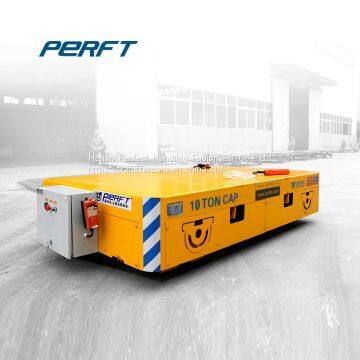

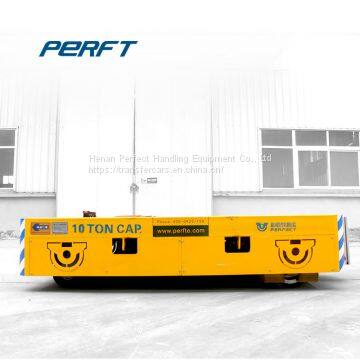

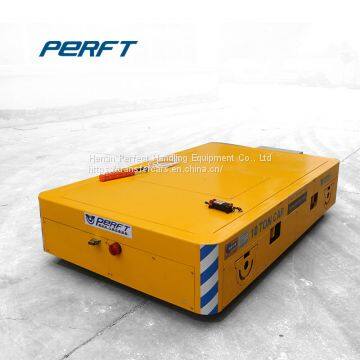

Our automated guided vehicle trackless flatbed transfer cars have big load capacity because we have used steel structure bearing frame. we also fit lifting holes and Polyurethane solid rubber-coated Wheels. It's battery powered automated guided vehicle trackless flatbed transfer cars. It can also turn around for 360 degrees without moving forward or backward. As per clients' request, we can provide all kinds of automated guided vehicle trackless flatbed transfer cars for you according to the working environment and floor condition.
Our products have gotten 8 patents and exported to more than 50 countries and regions. Our main products include battery operated automated guided vehicle trackless flatbed transfer cars, hydraulic motor driven mobile trolley, cable operated transfer trolley, industrial trailers, non-powered transfer cart, electric rail car, motorized transporter, coils transport trolley, ladle transfer trolley and so on. The automated guided vehicle trackless flatbed transfer cars can cross workshop turnover and high security ,strong bearing capacity .
Customer site usage map
Process line
Technical Parameter of trackless flatbed transfer cars
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
| Height (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Structure | Mechanical | ||||
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture | ||||
| Running Speed (m/min) | 0-15 | 0-12 | |||
| Brake Principle | Electric magnetic brake | ||||
| Operation Method | Raido Remote Control | ||||
| Battery Maintainance | Free of maintainance | ||||
| Charger's Installation | Installed on cart | Split-type | |||
| Cart Color | Customized | ||||
| Charger's Function | Automatically cut off the power when the battery is fully charged | ||||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning Equipment | Horn and Flash Light | ||||
| Other Functions | Turning light, night light and power display | ||||
Our commitment: The load bearing safety factor of the Motorized trackless cart is no less than 120%.
Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
16 hours engineering service and 24 hours internet service for our customers.
During the warranty period, if our Motorized trackless cart can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
1. Q: What is the size and load of this automated guided vehicle trackless flatbed transfer cars ?
A:The size and load of our this automated guided vehicle trackless flatbed transfer cars is customized design according to your requirement.
2. Q: How should I operate this automated guided vehicle trackless flatbed transfer cars ?
A: The automated guided vehicle trackless flatbed transfer cars is controlled by pendant & remote radio control. The controller could be push button or joy-sticker.
3. Q: Is there any braking system on this automated guided vehicle trackless flatbed transfer cars ?
A: Yes, there are electromagnetic brakes on the automated guided vehicle trackless flatbed transfer cars. When the automated guided vehicle trackless flatbed transfer cars is power off, the brake will work automatically. And there are emergency stop buttons on the remoter and the automated guided vehicle trackless flatbed transfer cars, you can push it for emergency stop.
4. Q:What is the warranty period? What kind of service do you offer in the warranty period?
A: The warranty period for our product is 12 months from the time we delivery, during the warranty period, we will send spare parts to you on our own cost if damaged because of bad quality, and we will guide you how to replace it. If necessary, our engineer is available to your factory for maintenance.
5. Q: How do you transport the automated guided vehicle trackless flatbed transfer cars and what is the package ?
A: For the big part, we will pack it with tarpaulin and wood pallet on the bottom of the Motorized trackless cart to prevent it from moving. For the small part, we will pack it in wood case.
6. Q: What is the leading time, delivery term, and payment term ?
A: Usually our leading time is 45 days, for some special Motorized trackless cart, such as hydraulic lifting Motorized trackless cart, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
