zinc coating equipment zinc spray machine
SX-600 is one kind of arc spraying machine , it is used for spraying various kinds of wire materials ,such as zinc,aluminum,copper,molybdnum,titanium,stainless steel,high carbon steel,nickel chromium alloy,wear-resistant alloy,Babbitt alloy material,zinc aiuminum alloy,metal ceramic ,etc. With its wide application ,good quality and reasonable price ,we sell many sets to customers both at home and abroad every year .
(1) principle of SX600 zinc coating equipment zinc spray machine
This high velocity arc spraying (high velocity arc spraying) is a technology which uses arc to melt metal,the arc is formed by combustion in two continuous feeding metal wire,then the melting metal is atomized by high speed airflow.Through the laval nozzle,the atomizing metal particles are accelerated to make them to exceed supersonic to spray to the workpieces to form a coating.
(2)component of SX600 zinc coating equipment zinc spray machine
It is a new technology based on the normal arc spraying ,which is composed of a special power supply, an arc spray gun, a push type arc spraying device, and a wire feeder.

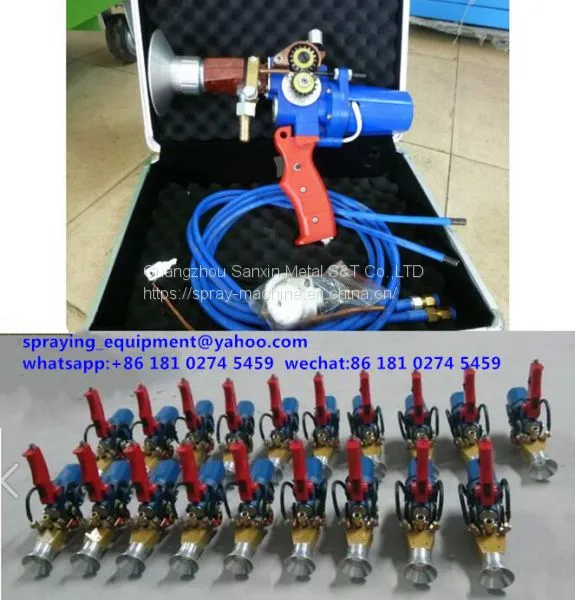

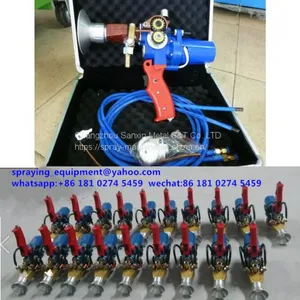

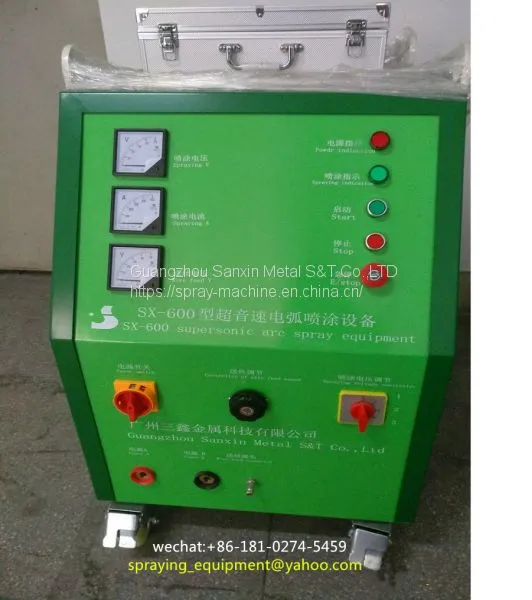

arc spray machine arc spray gun
(3) parameter of SX600 zinc coating equipment zinc spray machine
Arc spray gun parameters:
Model |
Arc spray gun |
Operation mode |
Handed or fixed |
Input voltage |
≤24V(DC) |
Applied wire diameter |
Φ1.2 Φ1.6 Φ2.0 Φ3.0 mm |
Air pressure |
>0.5Mpa |
Air consuming |
>1.85m3/min |
Wire feeding gravitation |
>8kg |
Feeding velocity regulating grade |
Stepless speed regulating |
Weight |
2.65kg |
Metal wire parameters:
Spray material |
Wire diameter |
Working current |
No-load volt |
Air hat diameter |
Maximum spray efficiency |
Zinc wire |
1.2-3.0 |
80-210 |
18-30 |
6-8 |
30 |
Al wire |
1.2-3.0 |
120-240 |
25-38 |
6-8 |
9.5 |
Steel wire |
2.0 |
150-200 |
35-40 |
7-8 |
6 |
High carbon steel wire |
2.0 |
150-220 |
10-44 |
8 |
5.5 |
Stainless steel wire |
2.0 |
150-220 |
10-44 |
8 |
5.5 |
Zn-Al, Pb-Sn alloy wire |
1.2-2.0 |
80-110 |
18-28 |
7 |
(4)advantage of SX600 zinc coating pvd anodizing arc spray machine ,arc coating equipment for exhaust pipe
1) Stable and convenient
This equipment is improved in the operation program by integrated circuit to prevent from machine damage by misoperation of workers, so as to protect the safety of operators and the equipment.
2) High adhesive force of coating(70Mpa)
Compared with 30-40Mpa of common arc’s coating,the adhesive force of coating can reach 70Mpa.
3) Workpiece won’t be deformed and its structure won’t be changed.(
Generally the rised temperature of workpiece won't exceed 100 ℃ when spraying, so the workpiece won't be deformed. And the spraying heat won't take effect directly on the surface so it doesn’t change the structure of workpiece.
4) High efficiency and wide application

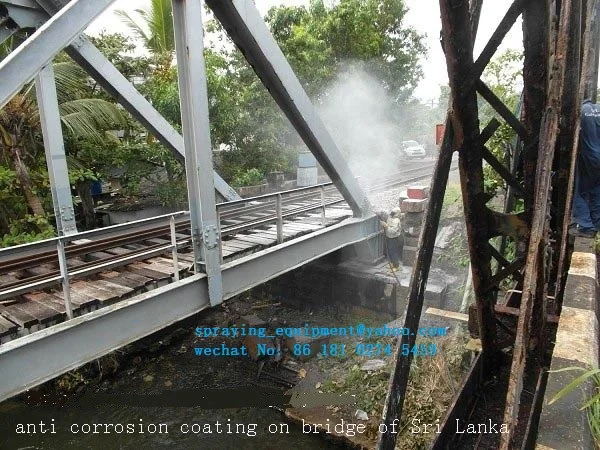

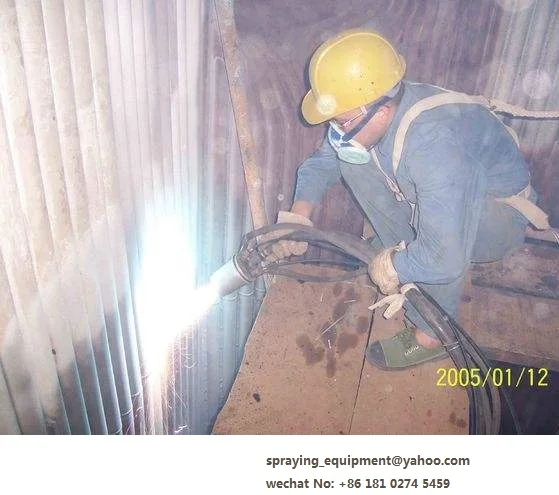

The equipment has high spray efficient and high power; It's suitable for on-site construction, and can use all kinds of metal and metal ceramic materials(solid and without core), such as alloy wires, Mo, Al, Zn, red copper, copper alloy, Babbitt etc. It is widely applied in spraying anti-wearing and anti-rust coatings for boiler’s four kinds of tubes, coal pulverizing system (fan impeller and scroll casing), roller, dryer, axis, mould,all kinds of workpieces and so on.
5)Spray gun for long distance(30-meter-long-cable)
The spray gun can be equipped with 30-meter-long cable, air tube and 8-core control cable, so it can spray at remote places about 30 meters from the equipment.
6)Unnecessary to change the wearing parts frequently
We have patent conductive nozzle which is anti-wearing and greatly enlarges use time of wearing parts. This helps to reduce the spraying cost and improve working’s efficiency and coating’s quality.
7)Convenient maintainance and repair
We take maintainance and repair work into our consideration during designing the equipment and spray gun which make it convenient to maintain and repair.
(5)application of anodizing machine ,arc spraying machine ,metal wire coating machine SX600
can spray the yellow copper ,bronze copper ,red copper, zinc aluminum alloy,tin-based babbitt alloy, aluminum bronze,austenitic stainless steel, martensitic stainless steel, heat resistant alloy,zinc, aluminum,zinc aluminum alloy ,metal ceramic and so on ,onto the surface of the workpieces.
Major advantages of the Arc spray Process are that the coatings are available for almost instant use with no drying or curing times and there is no risk of damaging the component. In addition, the deposits possess a higher degree of bond strength then most other thermally sprayed deposits and the use of compressed air and electricity alone mean more economic coatings. Arc spray systems are thermally efficient and, because there is no flame or plasma, little heat is transferred to the part being coated.
(6)our service:
we can offer you the user manual to help you start the machine ,also,our technologist can go abroad to instruct you , also, we can send you live video by wechat ,in fact ,most of our foreigner customers do it by our manual and video ,
If you are interested in our arc spray machine,please contact me ,I will offer you more details accordingly ,thanks
