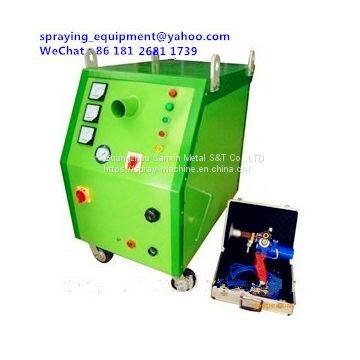

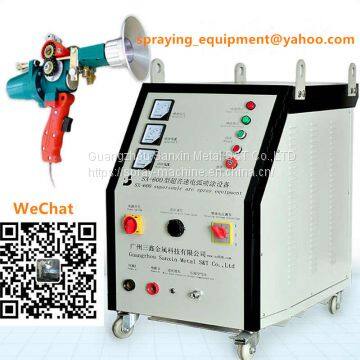

Suppersonic Arc Spray Equipment SX-400
Characteristic
1).The characteristics of High Velocity Arc Spray Equipment(SX-400/600 electric arc spray)
Stable and convenient
2) High bond strength of coating
3) Workpiece won’t deform and its structure won’t be influenced.
4) High efficiency and wide range usage.
5) Wide spray gun extending range and pull / push way of wire feeding to pick
6) No need to change wearing parts frequently
7) Convenient maintenance and repair.
Main technical param
Spray material |
Wire diameter |
Working current |
No-load volt |
Air hat diameter |
Maximum spray efficiency |
Zinc wire |
1.2-3.0 |
80-210 |
18-30 |
6-8 |
30 |
Al wire |
1.2-3.0 |
120-240 |
25-38 |
6-8 |
9.5 |
Steel wire |
2.0 |
150-200 |
35-40 |
7-8 |
6 |
High carbon steel wire |
2.0 |
150-220 |
10-44 |
8 |
5.5 |
Stainless steel wire |
2.0 |
150-220 |
10-44 |
8 |
5.5 |
Zn-Al, Pb-Sn alloy wire |
1.2-2.0 |
80-110 |
18-28 |
7 |
Air pressure |
Input power supply |
Output efficiency |
Output no-load volt |
Power supply weight |
Regulating volt |
>0.5Mpa |
Three phase 380V,50HZ |
16KW |
18-44V |
178kg |
0-24V |
Spray gun weight |
Air pressure |
Air consumption |
Wire feeding gravitation |
Velocity regulating range |
Input velocity |
2.65kg |
>0.5Mpa |
>1.85m3/min |
>8kg |
stepless speed regulating |
24V(DC) |
Company Information
Our company has rich experience of manufacturing and construction applications more than 34 years in thermal spray field . We can provide a full set of technical support, including the best cost-effective equipments, onsite construction services , solution and process and any other support you need.We also recruit agency in different area. Some qualifications as follows,
Other main thermal spraying equipments and service:
(1) HVOF spray equipment
(2) Plasma spray equipment
(3) Vacuum Plasma Spray Machine
(4) Sputter Target Produce Equipment and technology
(5) Precious metal vacuum coating equipment
(6) Cooker magnetism and thermal conduction coating spraying production line Thermal
(7) Industrial water chillers
(8) Spray Coating Services
(9) Electro Brush Plating Equipment
(10) High power flame spray plastic equipment
If you are interested in our products, please contact me ,Jessica
