Babbitt Metal Arc Spray Coating Machine, Machine for Coating Babbitt Metal, Arc Spray Machine

Name: Babbitt Metal Arc Spray Coating Machine, Machine for Coating Babbitt Metal, Arc Spray Machine
Brand: sanxin
SKU: 159022533
Availability: InStock

Babbitt Metal Arc Spray Coating Machine, Machine for Coating Babbitt Metal, Arc Spray Machine thumbnail-1

Babbitt Metal Arc Spray Coating Machine, Machine for Coating Babbitt Metal, Arc Spray Machine thumbnail-2

Babbitt Metal Arc Spray Coating Machine, Machine for Coating Babbitt Metal, Arc Spray Machine thumbnail-3

Babbitt Metal Arc Spray Coating Machine, Machine for Coating Babbitt Metal, Arc Spray Machine thumbnail-4

Babbitt Metal Arc Spray Coating Machine, Machine for Coating Babbitt Metal, Arc Spray Machine thumbnail-5

Babbitt Metal Arc Spray Coating Machine, Machine for Coating Babbitt Metal, Arc Spray Machine photo-1

Babbitt Metal Arc Spray Coating Machine, Machine for Coating Babbitt Metal, Arc Spray Machine photo-2

Babbitt Metal Arc Spray Coating Machine, Machine for Coating Babbitt Metal, Arc Spray Machine photo-3

Babbitt Metal Arc Spray Coating Machine, Machine for Coating Babbitt Metal, Arc Spray Machine photo-4

Babbitt Metal Arc Spray Coating Machine, Machine for Coating Babbitt Metal, Arc Spray Machine photo-5

US$ 4500 - 5000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

sanxin

Place of Origin:

China

Model Number:

SX600

Contact Supplier Request Quote Chat Now

Guangzhou Sanxin Metal S&T Co.,LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

Huangpu, guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name sanxin

Place of Origin China

Model Number SX600

After-sales Service Provided Engineers available to service machinery overseas

Condition New

our arc spray machine is widely used in outdoor facilities ,to improve its wear resistant ,wear corrosion ,and to lengthen its use life.

Our factory is committed to spraying technology research for more than 30 years ,we have dozens of spraying equipment ,such as thermal spraying equipment,arc spraying equipment ,plasma spraying equipment ,and so on.

SX-600 is one kind of arc spray machine,it is used for spraying zinc,aluminum,copper,molybdnum,titanium,stainless steel,high carbon steel,nickel chromium alloy,wear-resistant alloy,Babbitt alloy material,etc.

1.principle of babbitt metal coating machine, equipment for coating babbitt metal ,arc spray machine SX600

This high velocity arc spraying (high velocity arc spraying) is a technology which uses arc to melt metal,the arc is formed by combustion in two continuous feeding metal wire,then the melting metal is atomized by high speed airflow.Through the laval nozzle,the atomizing metal particles are accelerated to make them to exceed supersonic to spray to the workpieces to form a coating

2. component of babbitt metal coating machine, equipment for coating babbitt metal ,arc spray machine SX600

It is a new technology based on the normal arc spraying ,which is composed of a special power supply, an arc spray gun, a push type arc spraying device, and a wire feeder.

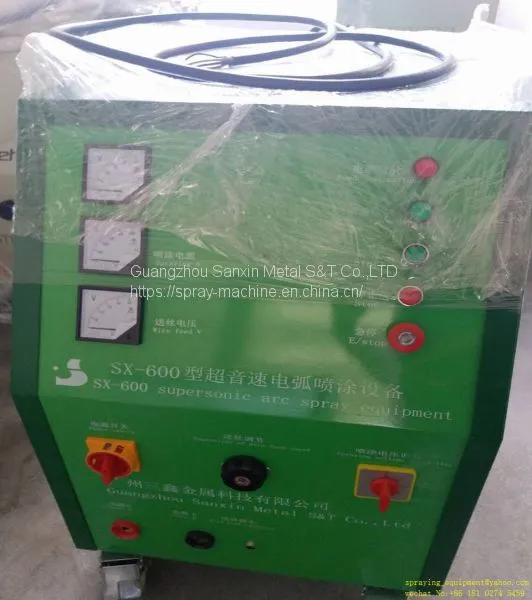

arc spray machine arc spray gun

3. parameter of babbitt metal coating machine, equipment for coating babbitt metal ,arc spray machine SX600 Arc spray gun parameters:

Model	Arc spray gun
Operation mode	Handed or fixed
Input voltage	≤24V(DC)
Applied wire diameter	Φ1.2 Φ1.6 Φ2.0 Φ3.0 mm
Air pressure	>0.5Mpa
Air consuming	>1.85m3/min
Wire feeding gravitation	>8kg
Feeding velocity regulating grade	Stepless speed regulating
Weight	2.65kg

Metal wire parameters:

Spray material	Wire diameter	Working current	No-load volt	Air hat diameter	Maximum spray efficiency
Zinc wire	1.2-3.0	80-210	18-30	6-8	30
Al wire	1.2-3.0	120-240	25-38	6-8	9.5
Steel wire	2.0	150-200	35-40	7-8	6
High carbon steel wire	2.0	150-220	10-44	8	5.5
Stainless steel wire	2.0	150-220	10-44	8	5.5
Zn-Al, Pb-Sn alloy wire	1.2-2.0	80-110	18-28	7

4.advantage of of babbitt metal coating machine, equipment for coating babbitt metal ,arc spray machine SX600

1) Stable and convenient

This equipment is improved in the operation program by integrated circuit to prevent from machine damage by misoperation of workers, so as to protect the safety of operators and the equipment.

2) High adhesive force of coating(70Mpa)

Compared with 30-40Mpa of common arc’s coating,the adhesive force of coating can reach 70Mpa.

3) Workpiece won’t be deformed and its structure won’t be changed.(

Generally the rised temperature of workpiece won't exceed 100 ℃ when spraying, so the workpiece won't be deformed. And the spraying heat won't take effect directly on the surface so it doesn’t change the structure of workpiece.

4) High efficiency and wide application

The equipment has high spray efficient and high power; It's suitable for on-site construction, and can use all kinds of metal and metal ceramic materials(solid and without core), such as alloy wires, Mo, Al, Zn, red copper, copper alloy, Babbitt etc. It is widely applied in spraying anti-wearing and anti-rust coatings for boiler’s four kinds of tubes, coal pulverizing system (fan impeller and scroll casing), roller, dryer, axis, mould,all kinds of workpieces and so on.

5)Spray gun for long distance(30-meter-long-cable)

The spray gun can be equipped with 30-meter-long cable, air tube and 8-core control cable, so it can spray at remote places about 30 meters from the equipment.

6)Unnecessary to change the wearing parts frequently

We have patent conductive nozzle which is anti-wearing and greatly enlarges use time of wearing parts. This helps to reduce the spraying cost and improve working’s efficiency and coating’s quality.

7)Convenient maintainance and repair

We take maintainance and repair work into our consideration during designing the equipment and spray gun which make it convenient to maintain and repair.

5.application for example:

Also, arc spray machine SX600 can spray zinc or aluminum on the metal chairs ,metal facilities in the garden ,to improve the wear resistant ,wear corrosion of them, so as to lengthen their usage life .

6.our products and customers :

Our products are taken strict quality control ,Our customers are from a lot of countries in the world, we have established long term cooperation with them.SX600 is the best sellers in our company , with good quality,wide usage and low price.

We also have various kinds of other spray equipments ,If you are interested in ,please contact me :

Product Tags: zinc coating machine , metal sprayer painting , chrome spray , arc spray gun , aluminum coating , copper coating , stainless steel coating , babbitt metal coating
