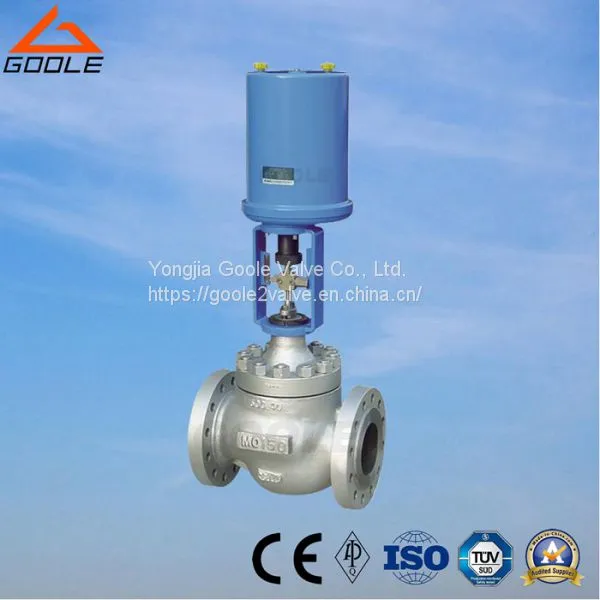

GZDLT Electric Actuated Diaphragm Type Flow Control valve.
GZDLT Type Electric Diaphgram Control Valve adopts the Diaphragm which fit the raised face of the Valve Body to ensure the sealing. There's no Packing in the valve body. The regulating element is the flexible Diaphragm. The flow port of the diaphragm control valve is very smooth. The lining material and the diaphragm can be made of corrosion resistant material.
Such control valve uses small, strong and high precision electric actuator with On-Off Function or with 4-20mA DC or 1~5V direct current signal to realize valve's proportional action, which is more suitable for the working condition required Corrossion Resistance and Poison-resistance.


Valve Body.
Structure: Cast Straight Through type Diaphragm Valve
Size: DN20~200mm.
Design Pressure: PN10
Connections:flanged type.
Flange Standard: GB/T 9113-2000, JB/T-94, ANSI B16.5, DIN, JIS
Material:WCB,HT200 ZG230-450 ZG1Cr18Ni9Ti.ZG0Cr18Ni12Mo2Ti.

Valve Disc: Diaphragm Soft Sealing
Diaphragm Material: NBR, EPDM, PTFE

Actuator
Type: Electric Actuator
Model: 381LSA/XA-08,  381LSA/XA-20,  381LSB/XB-30,  381LSB/XB-50, 381LSC-65, 381LSC-99
381LSC-160, 381LSC-260
Valve Action: Direct Action, Reaction (Force)
Controlling Action: Proportional Linear Controlling or ON-OFF Controlling.
Input Signal: 4~20mA DC or 1~5V DC
Power: AC220V, 50HZ
Output Signal: 4~20mA DC
Power Consumption: A Type-50VA, B Type--150VA, C Type-220VA
Protection Level: IP55
Wire Connection: Normal S Type--G1/2", Explosion-Proof X Type---G3/4"
Ambient Temperature: Normal---10 Deg C~ 60 Deg C, With Space Heater---35 Deg C~ 60Deg C, Explosion-Proof X Type--- -10Deg C ~40 Deg C
Ambient Humidity: Normal S Type--Below 95%, Explosion-Proof X type--45%-85%
Explosion-Proof: ExdIIBT4

Performance
Raded KV Value: Refer to Table 1
Flowing Features: Linear
Adjusting Range: 30:1
Leakage Rate: Metal Sealing should be below 0.01% ANSI B16.104-1976 Class IV
            Soft Sealing should be below 0.00001% ANSIB16.104-1976  Class VI
Allowable Deviation: 1%

Kv,Movement& Action Time

DN KV Motor Model Output Thrust Rated Stroke
mm Unlined Lined N mm
20 9.8 7.8 381LSA-08/20 800/2000 8
25 19 17 381LSA-08/20 800/2000 10
32 32 28 381LSB-30/50 3000/5000 12
40 48 41 16
50 63 55 24
65 108 87 381LSB-50/SC-65 5000/6500 30
80 158 127 34
100 270 240 36
125 360 311 381LSC-99/160 10000/16000 44
150 518 415 55
200 1114 1121 65



Pneumatic Double Seated Control Valve Dimension.

DN L A B D R H1 H6 H2 H3 H4 H5 Weight (Kg)
20 150 460 230 225 177 126 142 490 373 459 52.5 10
25 160 460 230 225 177 126 142 490 373 459 57.5 12
32 180 460 230 225 177 134 154 490 495 459 67.5 15
40 200 460 230 225 177 157 177 490 495 459 75 17
50 230 460 230 225 177 167 187 490 495 429 82.5 18
65 290 530 230 225 177 199 226 540 700 520 90 34
80 310 530 230 255 177 214 241 540 700 520 100 46
100 350 530 230 255 177 229 256 540 700 520 110 54
125 400 630 260 310 226 263 290 625 725 570 135 76
150 480 630 260 310 226 293 320 625 725 570 150 79
200 600 630 260 310 226 358 385 625 725 570 190 100
