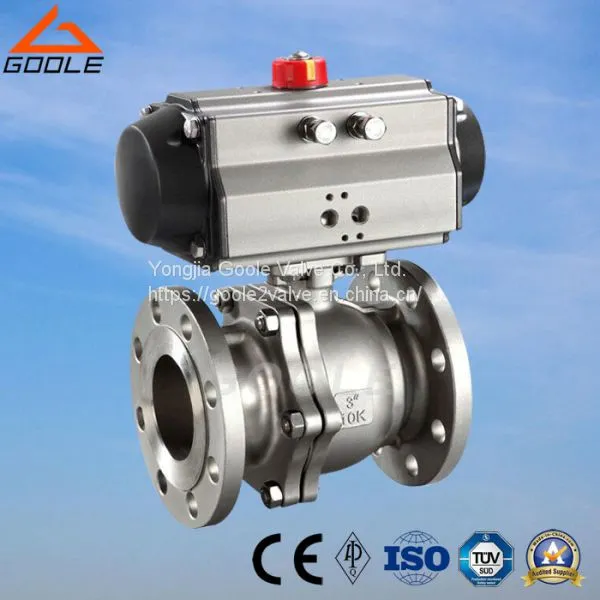

Pneumatic O-Shaped Cutting-off Ball Valve (GZSHO)

Pneumatic O-shaped Cutting-off Ball Valve ( GZSHO)
 O type pneumatic cut-off ball valve is often assemble with pneumatic double acting actuators. It has the advantages of simple structure, small volume, light weight, convenient operation, and can be widely used in petroleum, chemical, power, textile and other industrial production process automatic control and remote control.

The structure principle:
O type ball valve is composed of the valve body, ball, valve shaft, sealing ring, packing, plate and other components.The actuator consists of a gas, a piston, gear, output shaft, bearing, cylinder head, piston guide ring, bearing, an adjusting bolt, "O" type rings and other major parts.
Using the principle of Mechanism and the valve connected with the connecting shaft. The input air pressure inside the cylinder, acting on the piston to produce certain thrust, so that the gear output in piston driven, so that the gear output shaft to rotate, and drives the valve shaft to rotate, so that the ball valve in the valve with the valve to rotate, changing the circulation area, to change the media flow valve purpose.

Technical parameters
Nominal pressure: PN1.6~6.4MPa
Nominal diameter: 15-300mm
The inherent flow characteristics:  quick opening
Appliable Temperature : Hard Seal:-40~300ºC
                                   Soft Seal: -40~180ºC
Applicable medium: Water,gas,oil quality and so on.
Driving Means: Manual ,Electric, Worm wheels, Pneumatic
Flange Type: ANSI, JIS, DIN, GB/T 9113, JB/T 79
Body  materials : WCB, CF8, CF8M, CF3M
Stem: 2Cr13, 304, 316
Valve Seat : PTFE, 0Crl7Ni4Cu4Nb
Core Material : CF8, CF8M, CF3M.
Ball Type: DN200 and below sizes----Floating Ball
                DN200 and above sizes----Trunnion Ball

Actuator:
Type:  Piston Type Pneumatic Actuator ( GTX Series)
Action: Single Acting( Spring Return)----Air to Open
            Double Acting ( Double Cylinder)---Air to Close
Air Supply:  0.4-0.6 MPa
Rotary angle : 90°
Signal Joint size: 1/8"G, NAMUR 1/4" G
Environment Temperature: -20 Deg C ~ 90 Deg C

Valve Action
Air to Close: When the Air Supply failed, the actuator spring will make the valve open.
Air to Open: When the Air Supply failed, the actuator spring will make the valve close.

Accessories ( As per purchaser's requirement)
Positioner,  FRL, Handwheel Operator, Limit Switch, Solenoid Valve, Valve position feedback device, exhaust valve, etc.

Performance:
Rate Kv Value: See Table 1
Leakage Rate of the valve seat
Metal Seat: Below 0.01% ( ANSI B16.104-1976  Class IV)
Soft Seat: Below 0.00001% ( ANSI B16.104-1976  Class VI)

Nominal diameter DN, Rated Kv and Action Time

External Dimension and Weight
