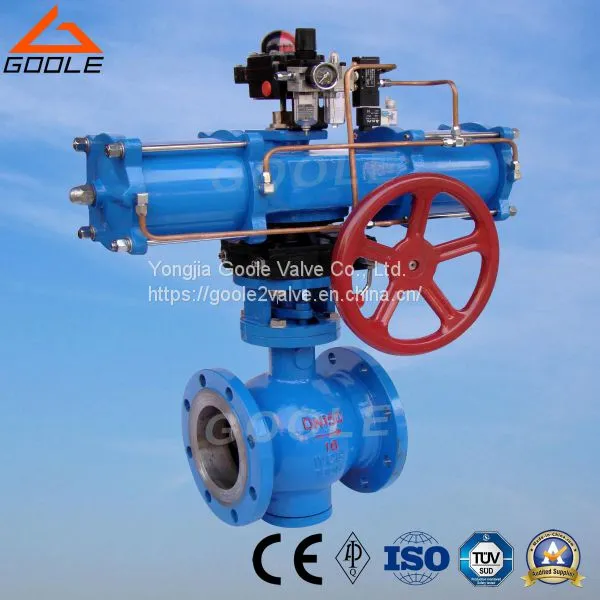

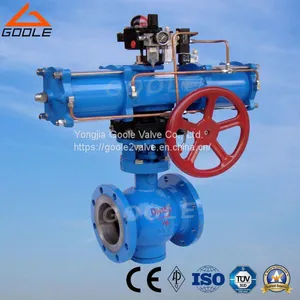

Help CenterPneumatic Eccentric Control Ball Valve Half Ball Type (GHP)
Related Products
-
Hlc Small Size Single Seat Pneumatic Pressure Control Valve / Sleeve TypeUS$ 2 - 50MOQ: 10 Pieces -
Pressure Balanced Cage Type Control Valve (GAHSC)US$ 2 - 50MOQ: 10 Pieces
-
Pneumatic Diaphragm Double Seated Flow Control Valve (GAZJHN)US$ 2 - 50MOQ: 10 Pieces
-
Hcb Cage Type Double Seat Pneumatic Flow Regulating ValveUS$ 2 - 50MOQ: 10 Pieces
-
Pneumatic Double-Seated Pressure Regulator (GAZJHN)US$ 2 - 50MOQ: 10 Pieces
Pneumatic Eccentric Control Ball Valve Half Ball Type (GHP) main parameters.
Nominal pressure: PN1.6~6.4MPa
Nominal diameter: 20~400mm
Appliable Temperature : Hard Seal:-40~300ºC
Soft Seal: -40~180ºC
Applicable medium:Water,gas,oil quality and so on.
Driving Means:Manual ,Electric, Worm wheels, Pneumatic
Body materials : WCB, CF8, CF8M, CF3M
Stem: 2Cr13, 304, 316
Rotary angle : 90°
Valve Seat : PTFE, 0Crl, 7Ni4Cu4Nb
Core Material : CF8, CF8M, CF3M.
Pneumatic Eccentric Control Ball Valve Half Ball Type (GHP) Product Feature.
1. The shear force between the ball and the metal seat type V incision, especially suitable for containing fiber and small solid particle, pulp and other medium.
2. Fully open flow capacity, small pressure loss, and the media will not deposit in the body cavity.
3. Using a spring-loaded movable seat structure , Preventing the occurrence of ball core and valve seat from jamming or other issues, reliable sealing and long service life.
4. The valve has the advantages of accurate regulation and reliable positioning function, approximately equal percentage flow characteristics, large adjustable range, the maximum adjustable ratio 100:1.
Nominal diameter DN, Rated flow coefficient Kv, Allowable pressure difference.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
